Positive Crankcase Ventilation Valve: Testing and Inspection

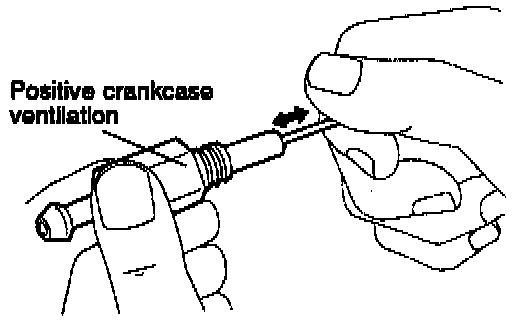

1. Insert a thin rod into the positive crankcase ventilation valve from the side shown in the illustration (rocker cover installation side), and move the rod back and forth to confirm that the plunger moves.
2. If the plunger does not move, the valve is clogged. In this case, clean or replace the valve.

INSTALLATION
Install positive crankcase ventilation valve and tighten to specified torque.

Specified torque: 10 Nm (7.2 ft.lbs.)
