Evaporative Check Valve: Service and Repair

Evaporative Emission Canister/Fuel Tank Pressure Relief Valve:

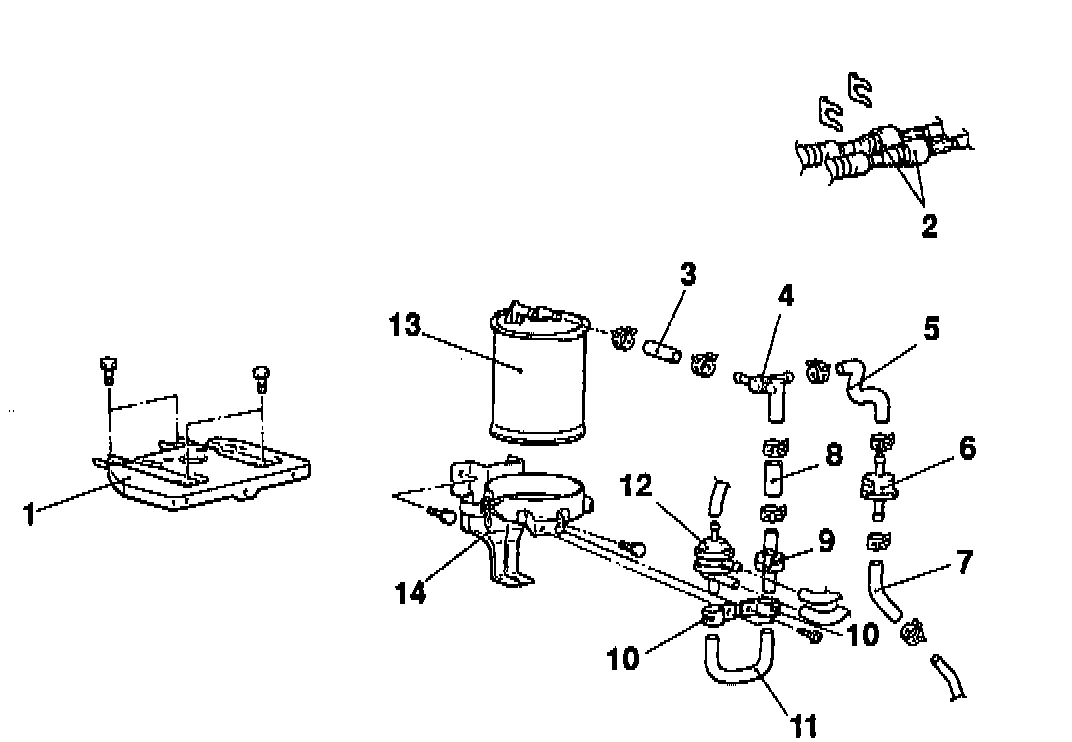

Removal Steps:
1. Battery bracket
2. Shift cable and select cable connection
3. Vapor hose
4. Connector
5. Vapor hose
6. Fuel tank pressure relief valve
7. Vapor hose
8. Vapor hose

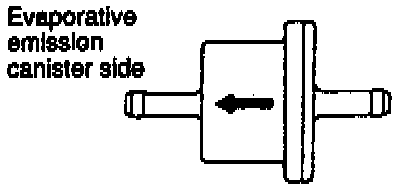

9. Check valve
10. Clamp
11. Purge hose
12. Purge control valve
13. Evaporative emission canister
14. Evaporative emission canister holder assembly





15. Reverse procedure to reassemble, noting that the installation direction of the fuel tank pressure relief valve is correct.
