Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

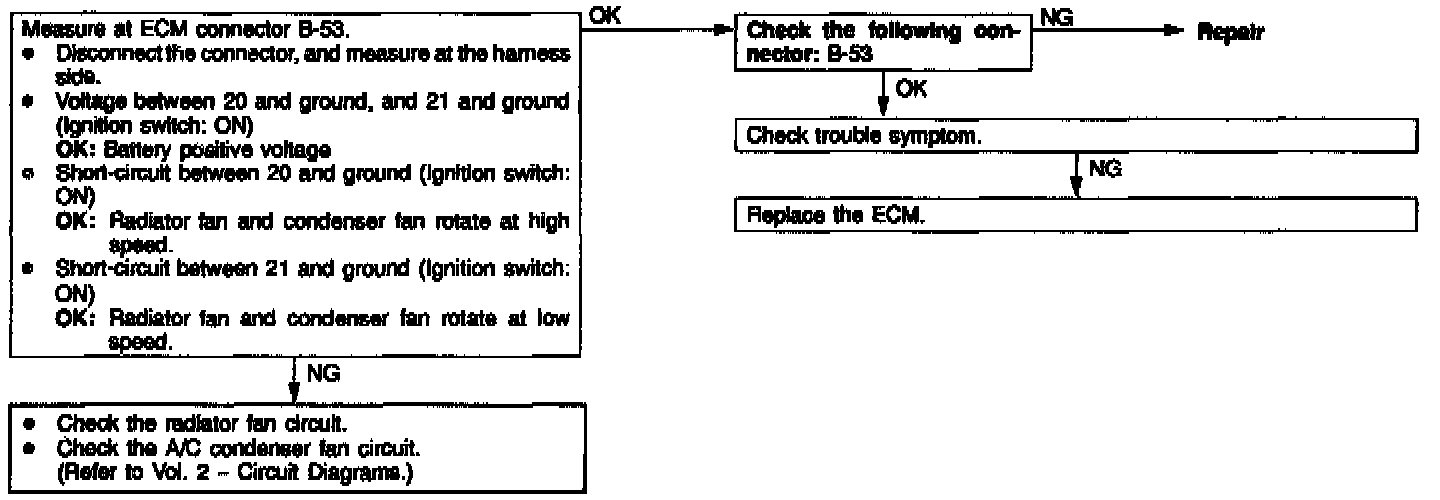

Fan Motor Relay system (Radiator Fan, A/C Condenser Fan)
Fan Motor Relay system (Radiator Fan, A/C Condenser Fan)
