Circuit Diagram Configuration - Corrections
NO.: TSB-96-54-003DATE: April, 1996
MODEL: 1995 Eclipse and Galant
SUBJECT:
CONFIGURATION AND CIRCUIT DIAGRAM CORRECTIONS - SERVICE MANUAL REVISION
TSB Revision TSB-96-54-003
PURPOSE
This bulletin is issued to correct errors in the configuration and circuit diagrams in the 1995 Eclipse and Galant Service Manuals Vol. 2. The information is shown correctly in the 1996 Service Manuals.
AFFECTED SERVICE MANUALS
Service Manual Page
1995 Eclipse, Vol. 2 42, 44, 53, 58, 192, 197, 16-5
1995 Galant, Vol. 2 61
SERVICE MANUAL REVISION
Please write the TSB number in the box at the bottom of each of the pages listed in the table to refer to the corrected pages in this bulletin.
1995 Eclipse Service Manual Vol. 2,

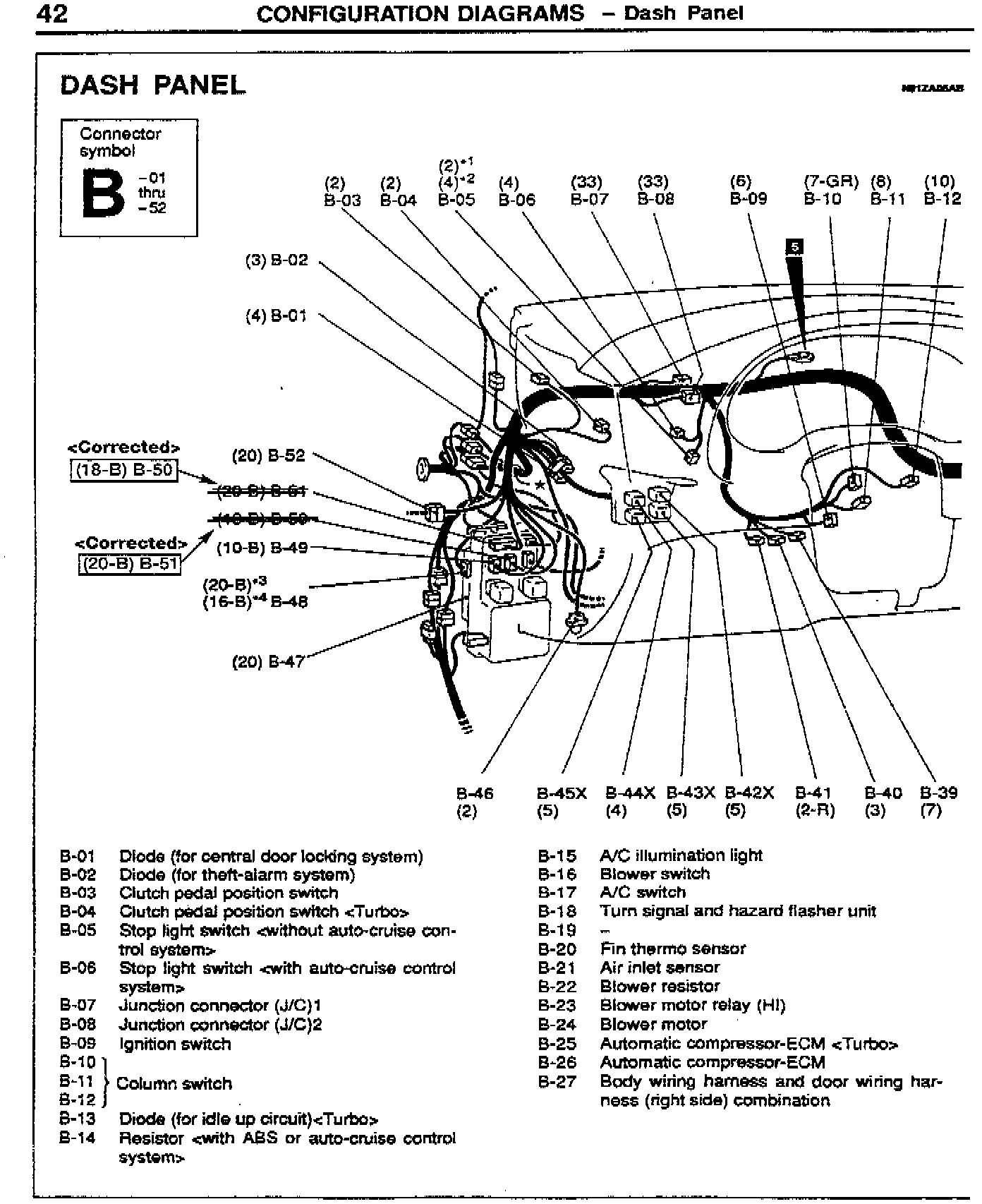

Page 42 Please correct two callouts as shown.
1995 Eclipse Service Manual, Vol. 2, Page 44

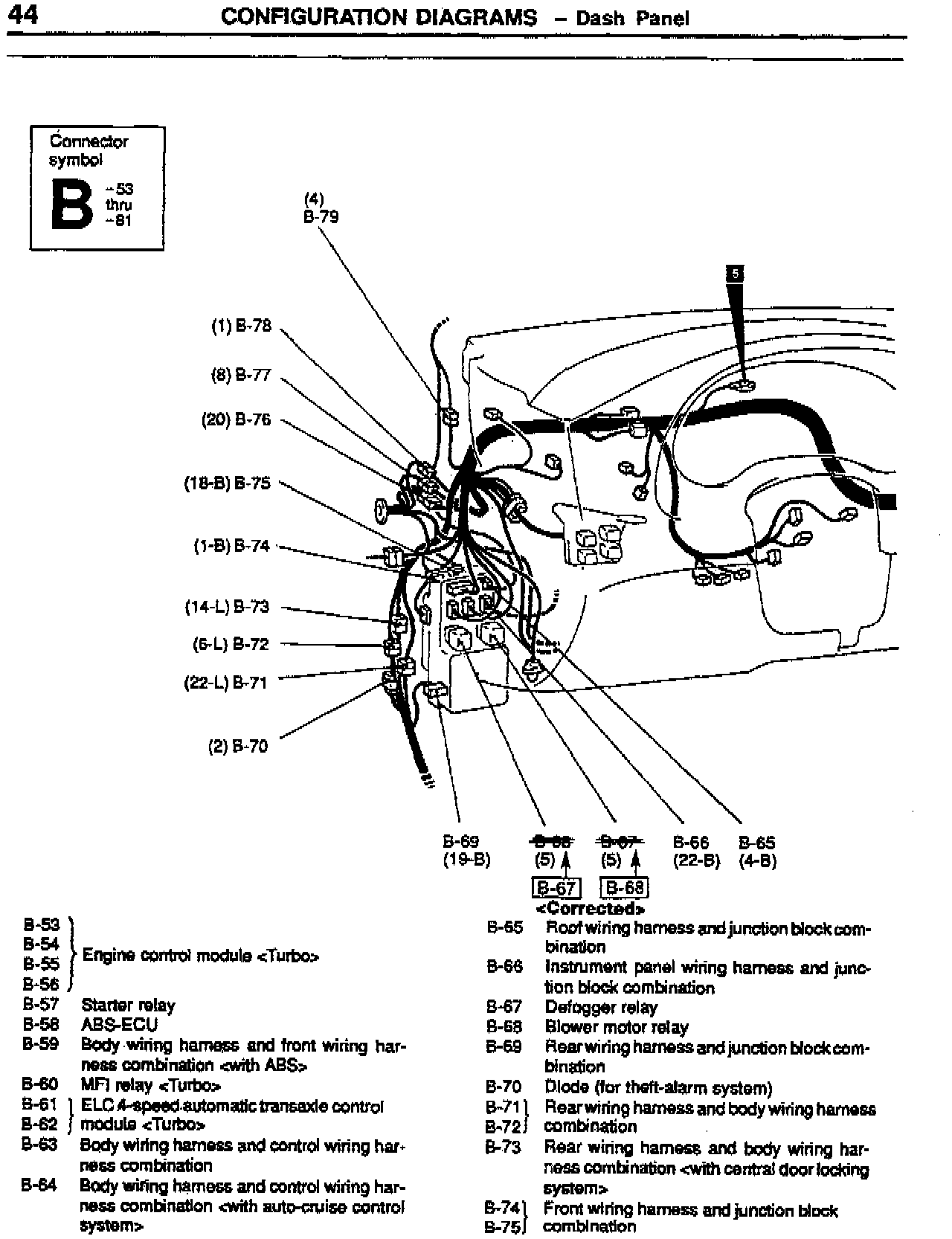

Please correct two callouts as shown.
1995 Eclipse Service Manual Vol. 2, Page 58

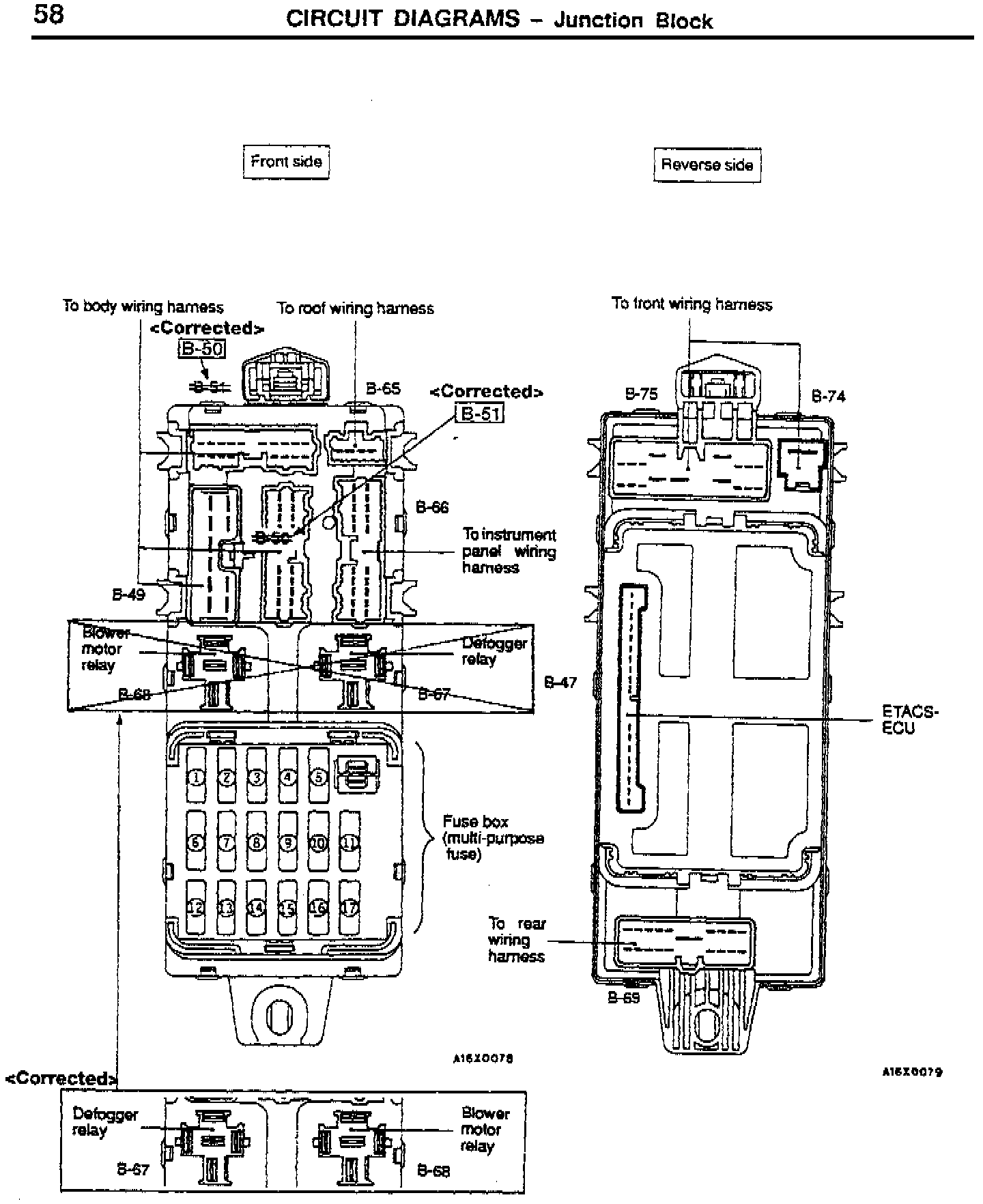

Please correct two connector numbers and transpose the defogger relay and blower motor relay as shown.
1995 Eclipse Service Manual Vol. 2, Page 192

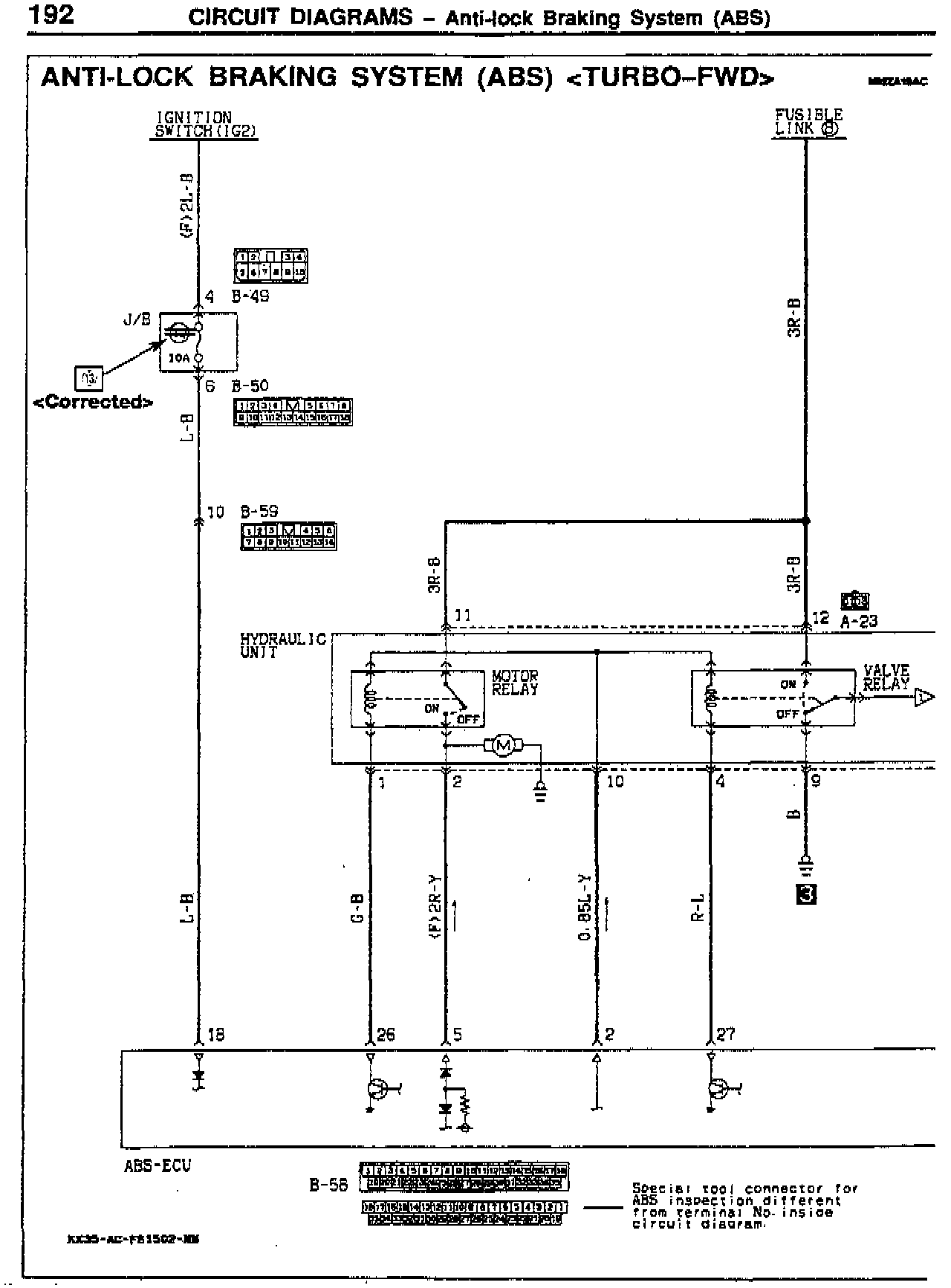

Please correct the fuse number as shown.
1995 Eclipse Service Manual, Vol 2, Page 197

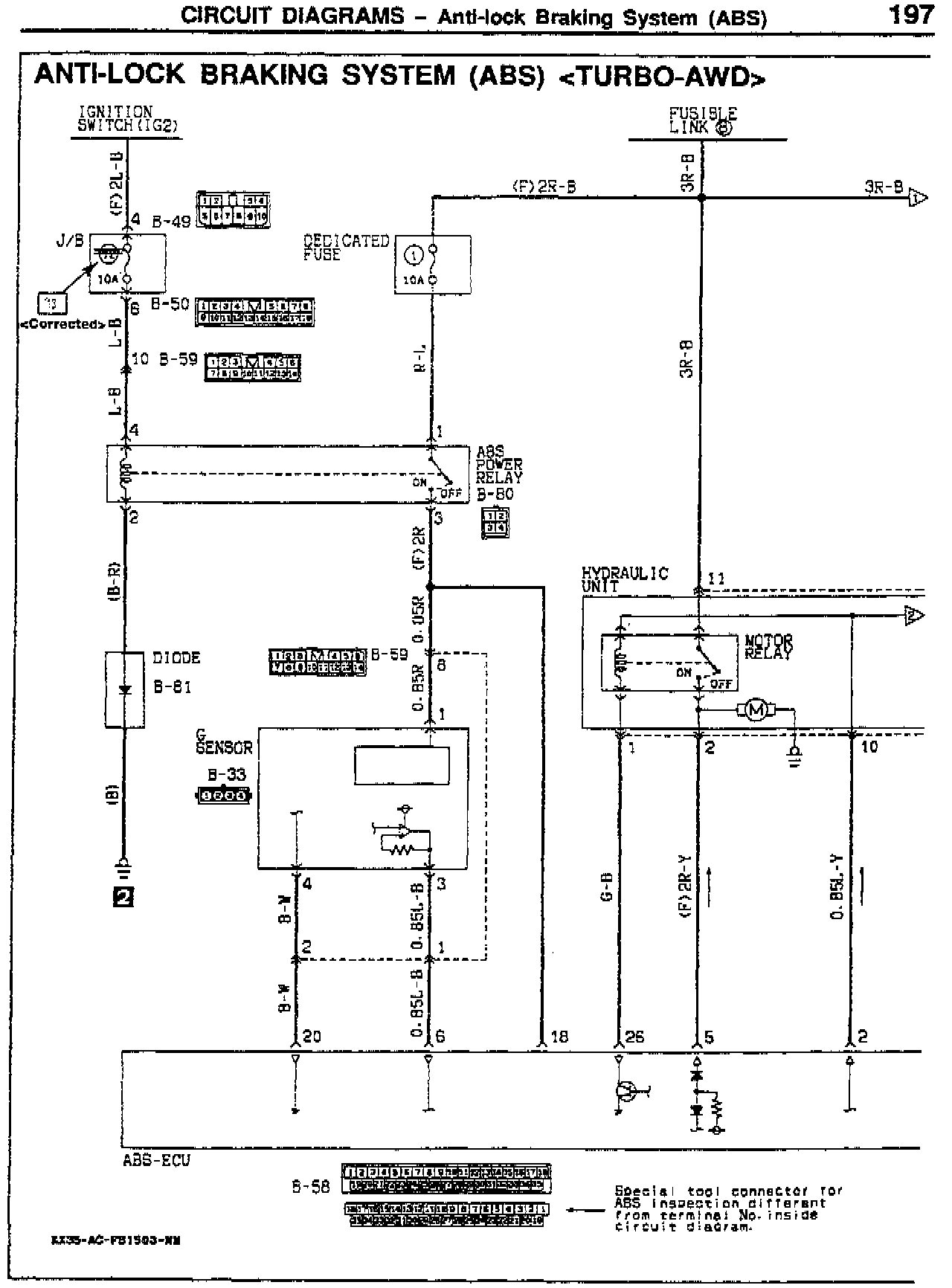

Please correct the fuse number as indicated.
1995 Eclipse Service Manual, Vol. 2, Page 16-5

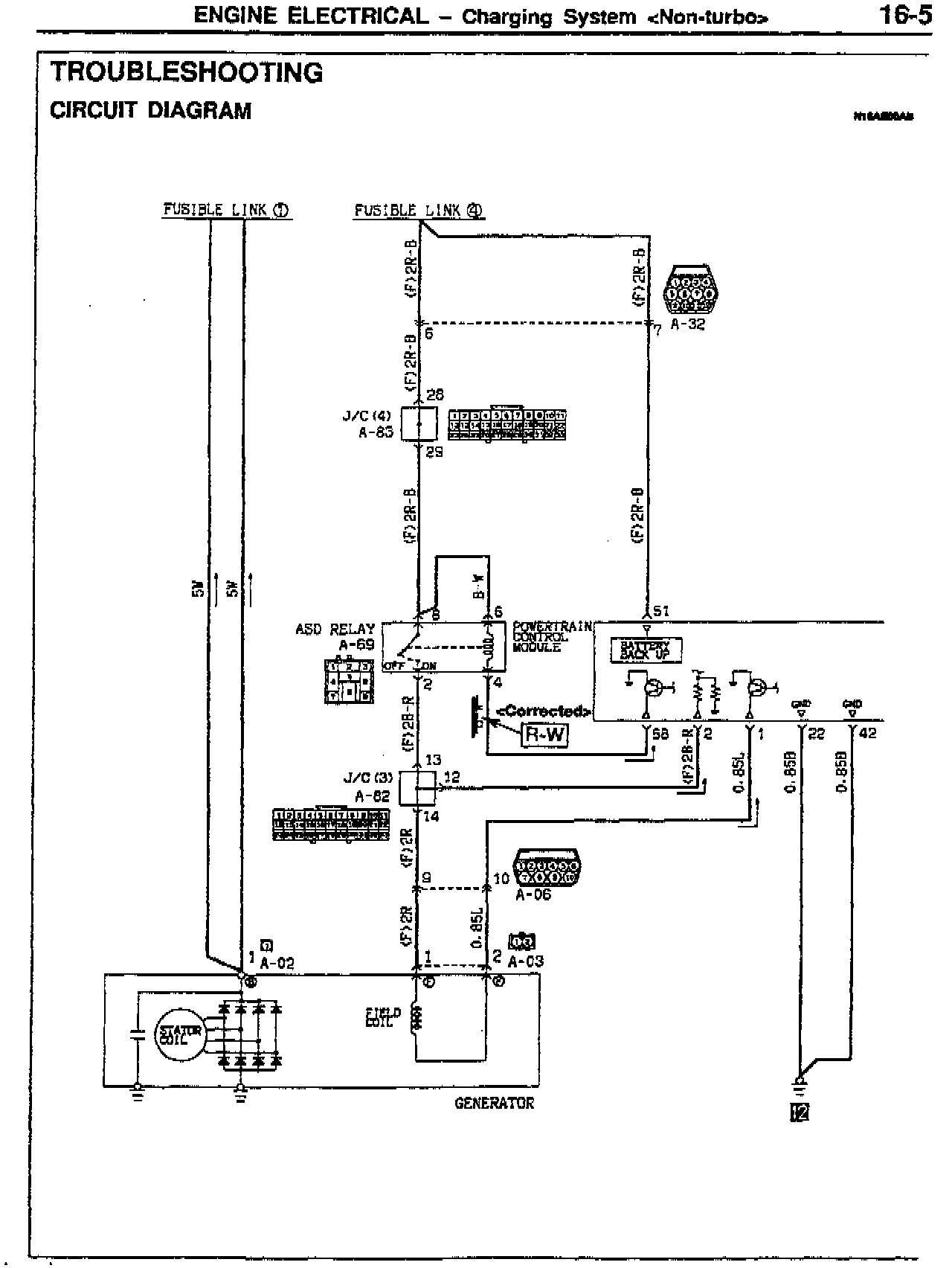

Please change a wire color to R-W as shown.
1995 Eclipse Service Manual, Vol. 2, Page 53

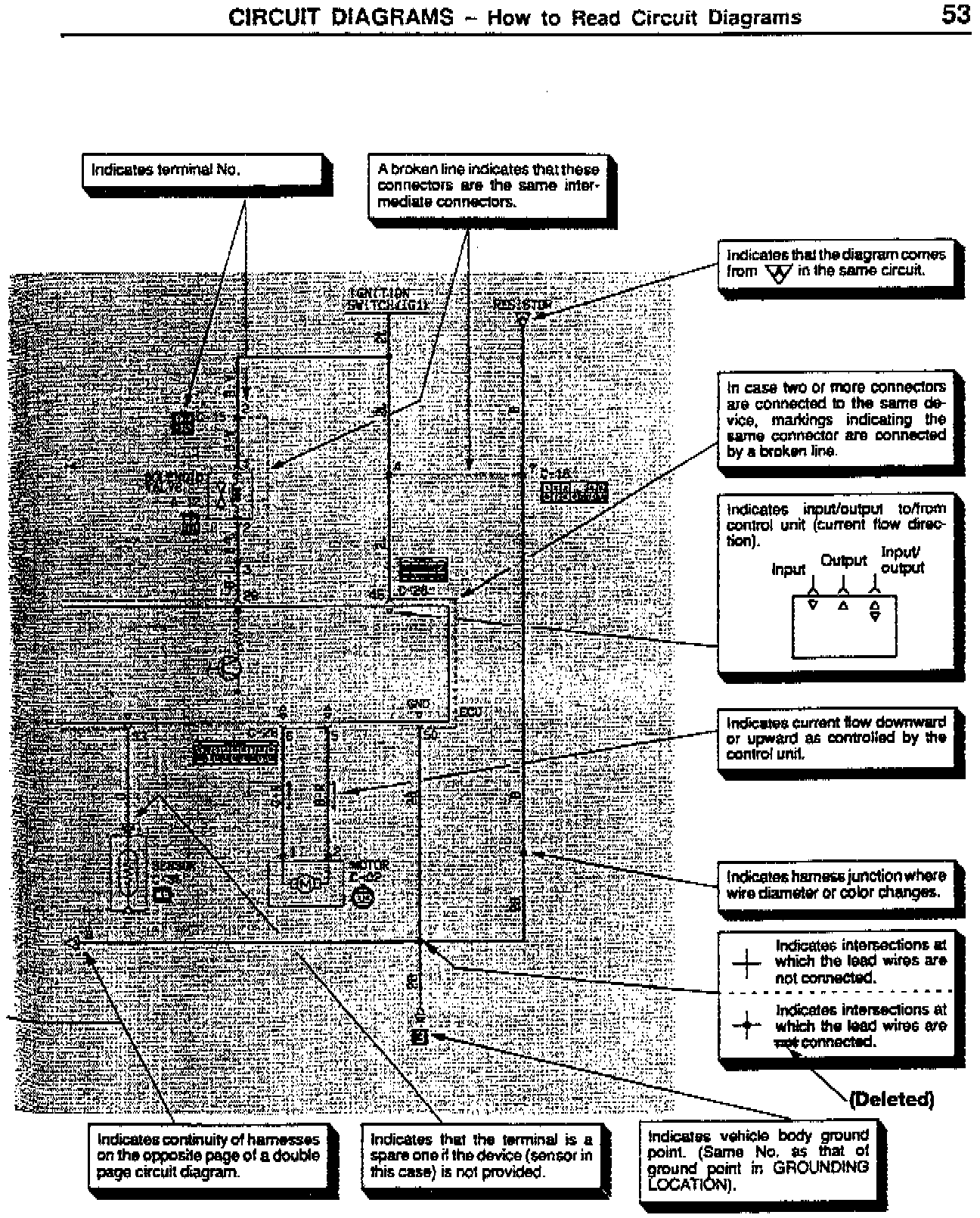

Please delete the word "not" as shown.
1995 Galant Service Manual Vol. 2 Page 61

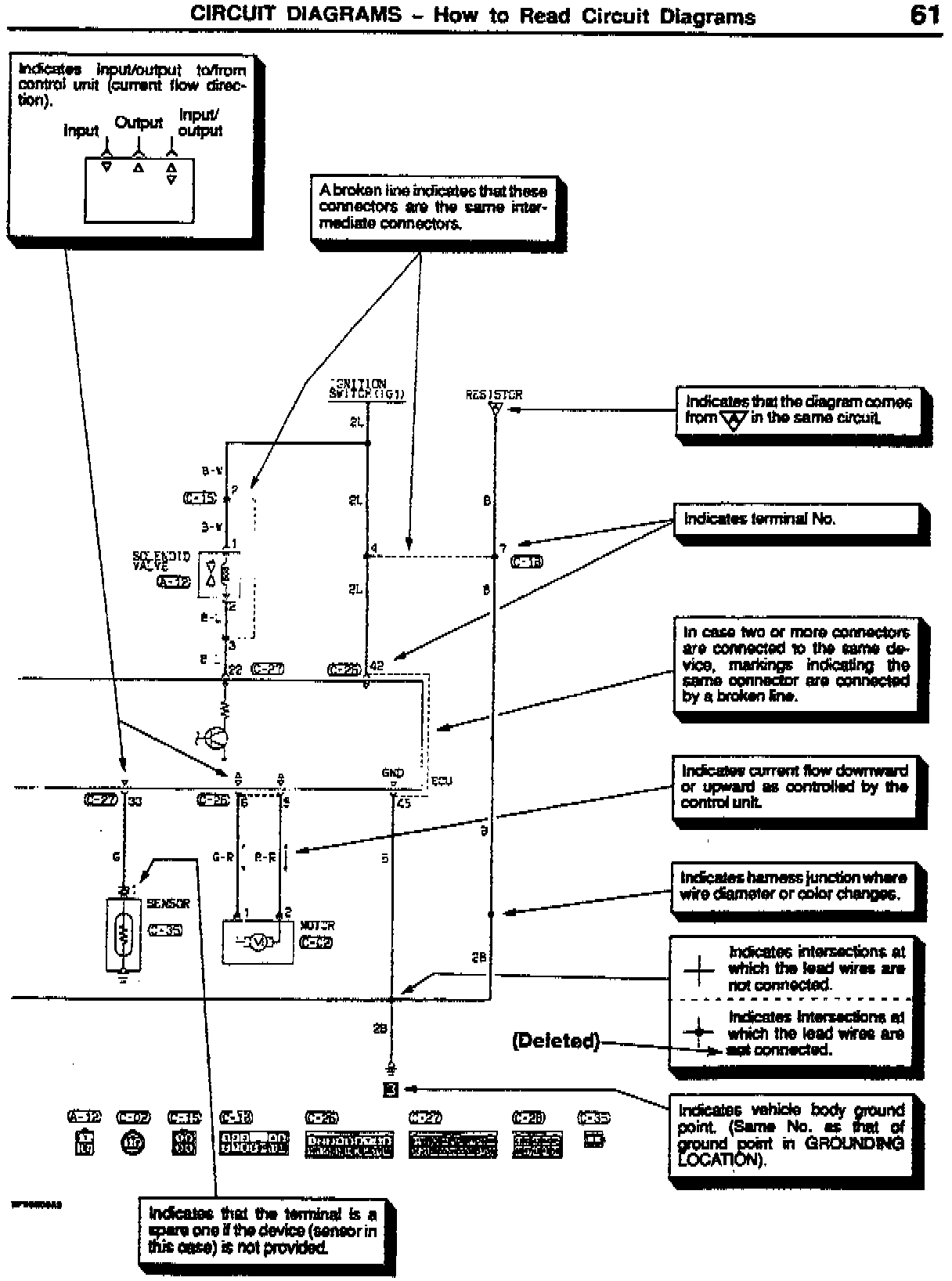

Please delete the word "not" as shown.
