Headlamp: Service and Repair

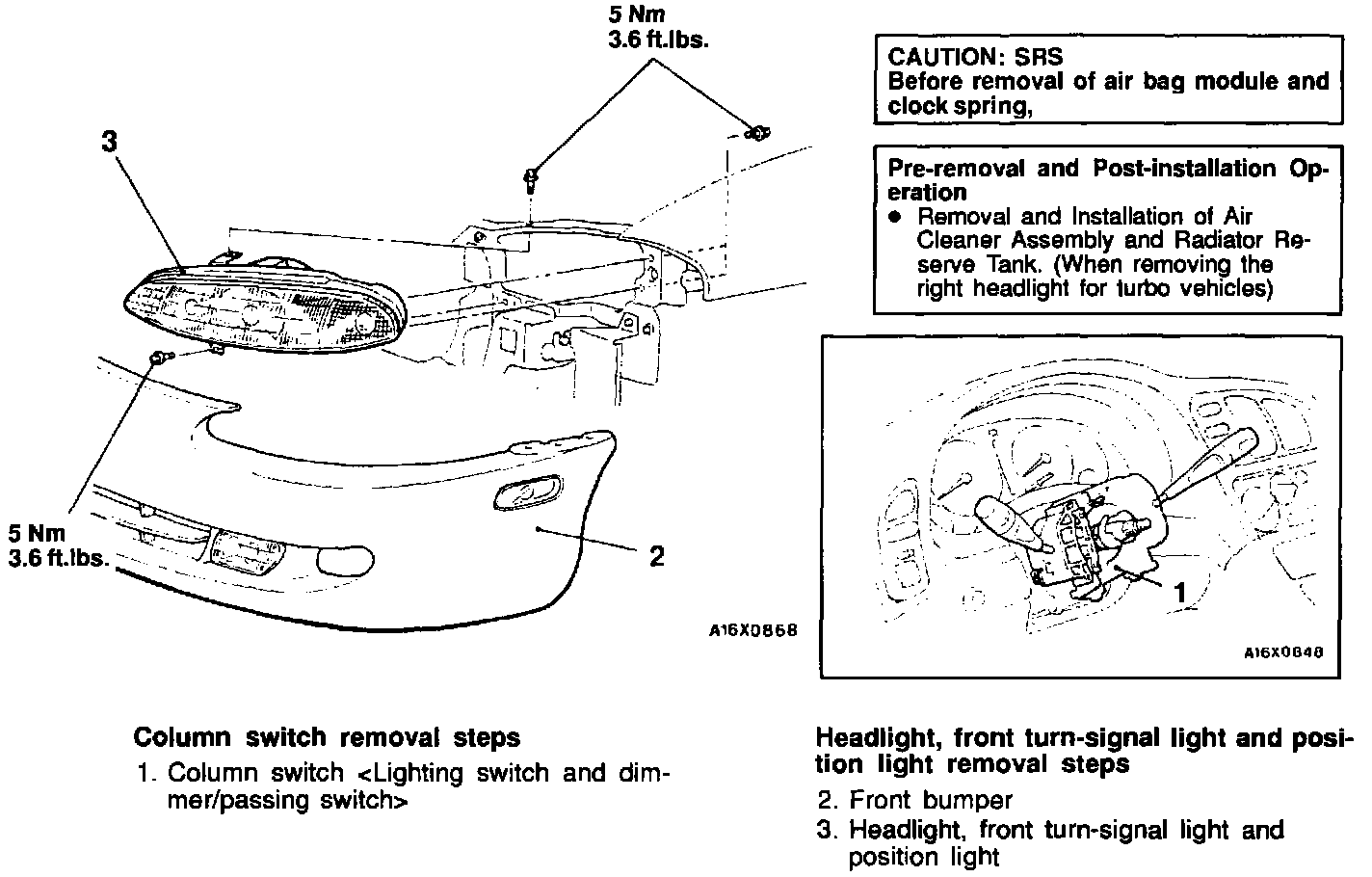

Headlight, Front Turn-signal And Position Light Assembly - Removal And Installation:

CAUTION: Before removal of air bag module and clock spring refer service precautions and air bag module and clock spring.

Pre-Removal
- Air cleaner assembly
- Radiator reserve tank

REMOVE
Column Switch
1. Column switch

Headlight, Front Turn-signal Light And Position Light
2. Front bumper
3. Headlight, front turn-signal light and position light


INSTALL
Column Switch
1. Column switch

Headlight, Front Turn-signal Light And Position Light
2. Headlight, front turn-signal light and position light
3. Front bumper

Post-Installation
- Radiator reserve tank
- Air cleaner assembly
