Home >> Mitsubishi >> 1995 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Testing and Inspection >> Vehicles With Sunroof

Vehicles With Sunroof

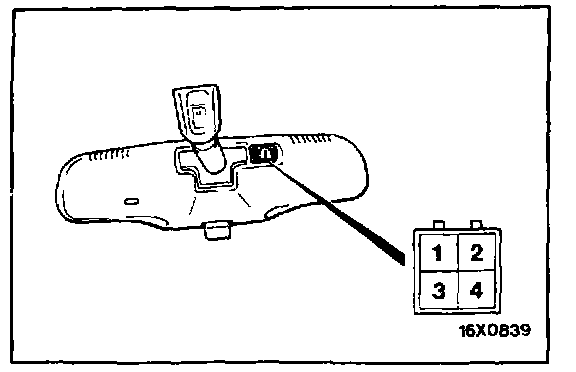

Dome Light Switch Continuity Check:

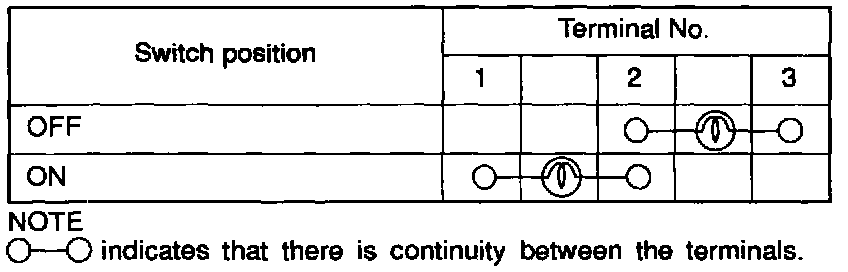

Dome Light Switch Continuity Check Table:
