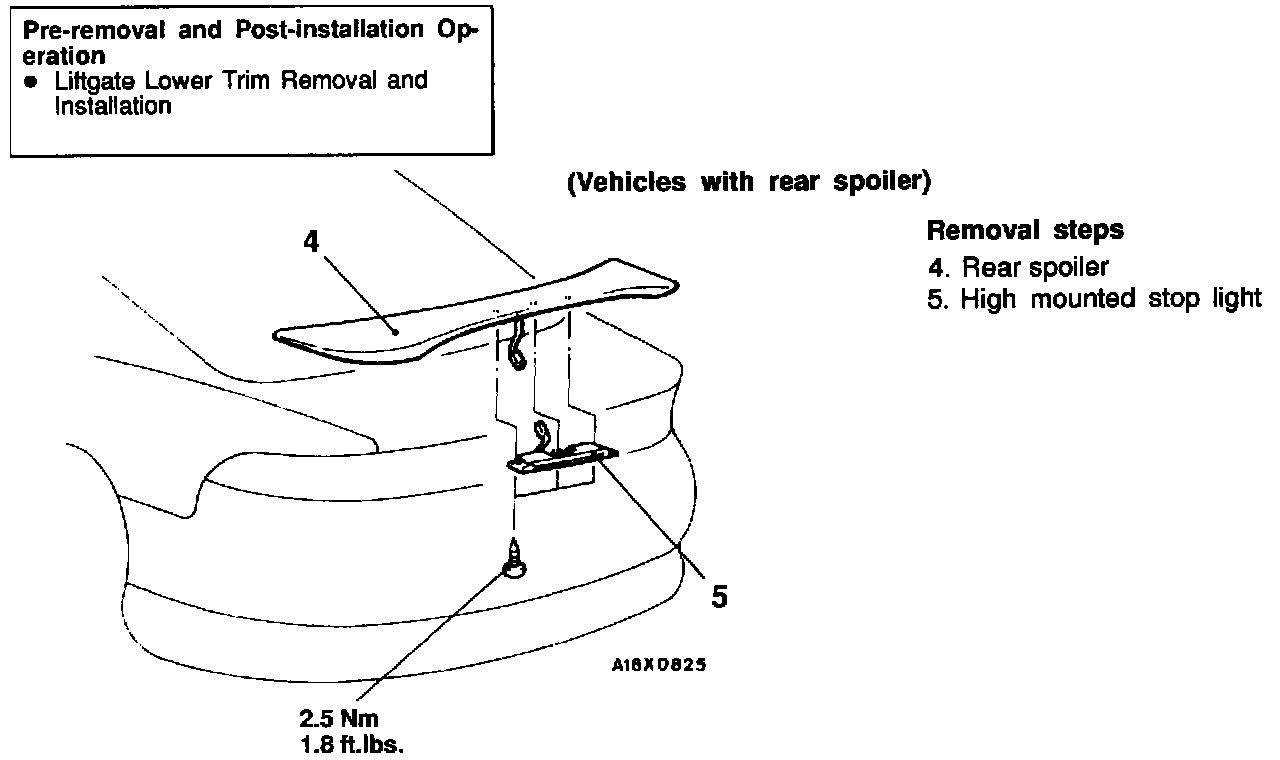

Vehicle With Rear Spoiler

High Mounted Stop Light:





Pre-Removal
- Liftgate Lower Trim

REMOVE
4. Rear spoiler
5. High mounted stop light

INSTALL
4. High mounted stop light
5. Rear spoiler

Post-Installation
- Liftgate Lower Trim
