Home >> Mitsubishi >> 1995 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> 2

Instrument Panel, Gauges and Warning Indicators: Testing and Inspection: 2

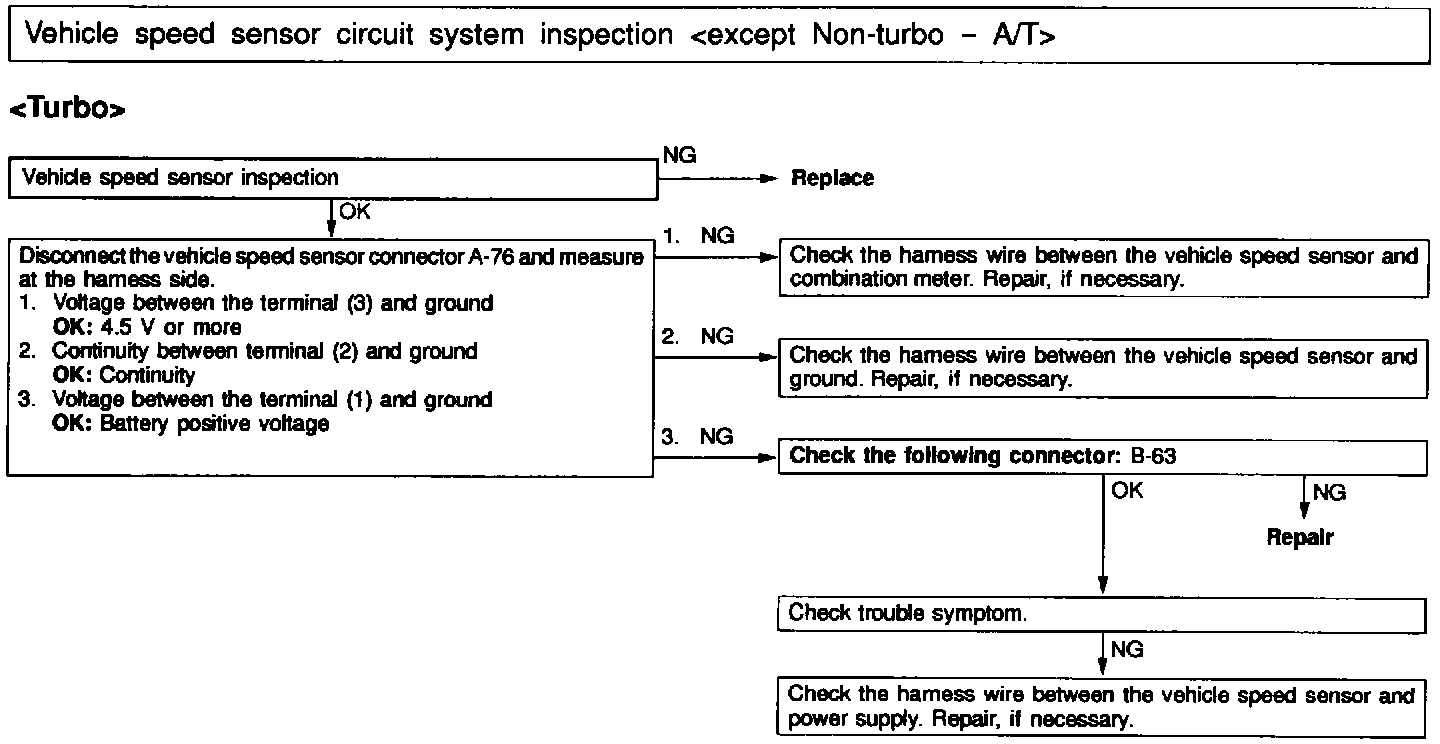

Inspection Procedure 2:
