Combination Meter Disassembly and Assembly

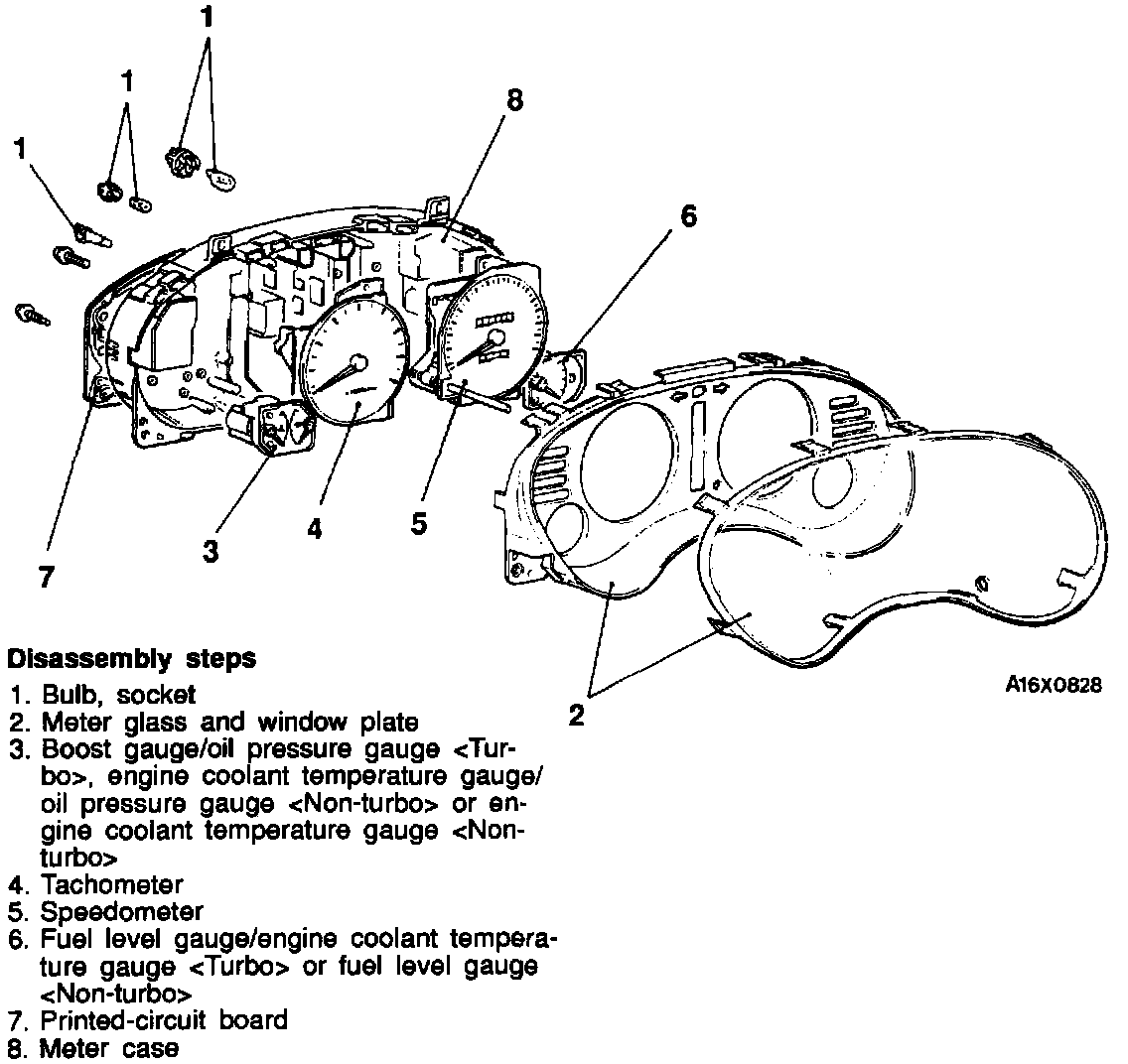

Combination Meters - Disassembly And Reassembly:

REMOVE
1. Bulb, socket
2. Meter glass and window plate
3. Boost gauge/oil pressure gauge/engine coolant temperature gauge
4. Tachometer
5. Speedometer
6. Fuel level gauge/engine coolant temperature gauge/fuel level gauge
7. Printed-circuit board
8. Meter case

INSTALL
1. Meter case
2. Printed-circuit board
3. Fuel level gauge/engine coolant temperature gauge/fuel level gauge
4. Speedometer
5. Tachometer
6. Boost gauge/oil pressure gauge/engine coolant temperature gauge
7. Meter glass and window plate
8. Bulb, socket
