Thermistor

Thermistor:

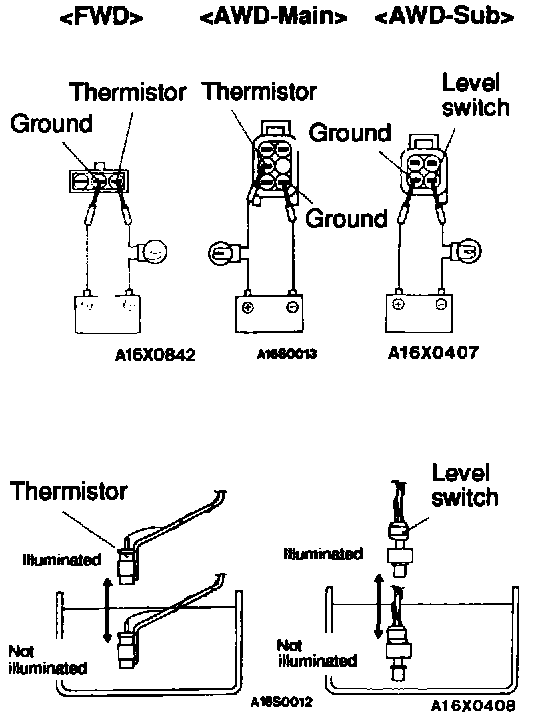

1. Connect fuel gauge unit to battery via test light (12 V - 3.4 W). Immerse it in water.
2. The condition is good if light goes off when thermistor or level switch is in water and lights when it is removed from water.

CAUTION: Dry the unit, or water will get into the fuel tank.
