Inspection

Fuel Gauge:

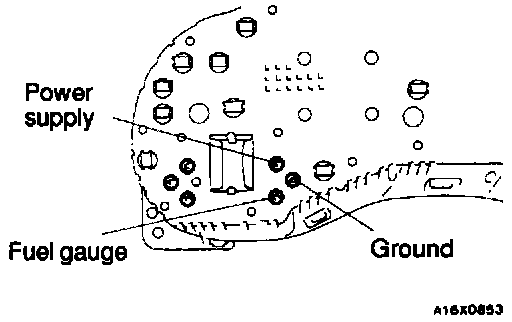

1. Remove the power supply tightening screw.
2. Use an ohmmeter to measure the resistance value between the terminals.

CAUTION: When inserting the testing probe into the power supply terminal, be careful not to touch the printed board.

Standard value:
Power supply-Ground 249 ± 30 Ohms
Power supply-Fuel gauge 127 ± 25 Ohms
Fuel gauge-Ground 122 ± 1O Ohms
