Heater Core: Service and Repair

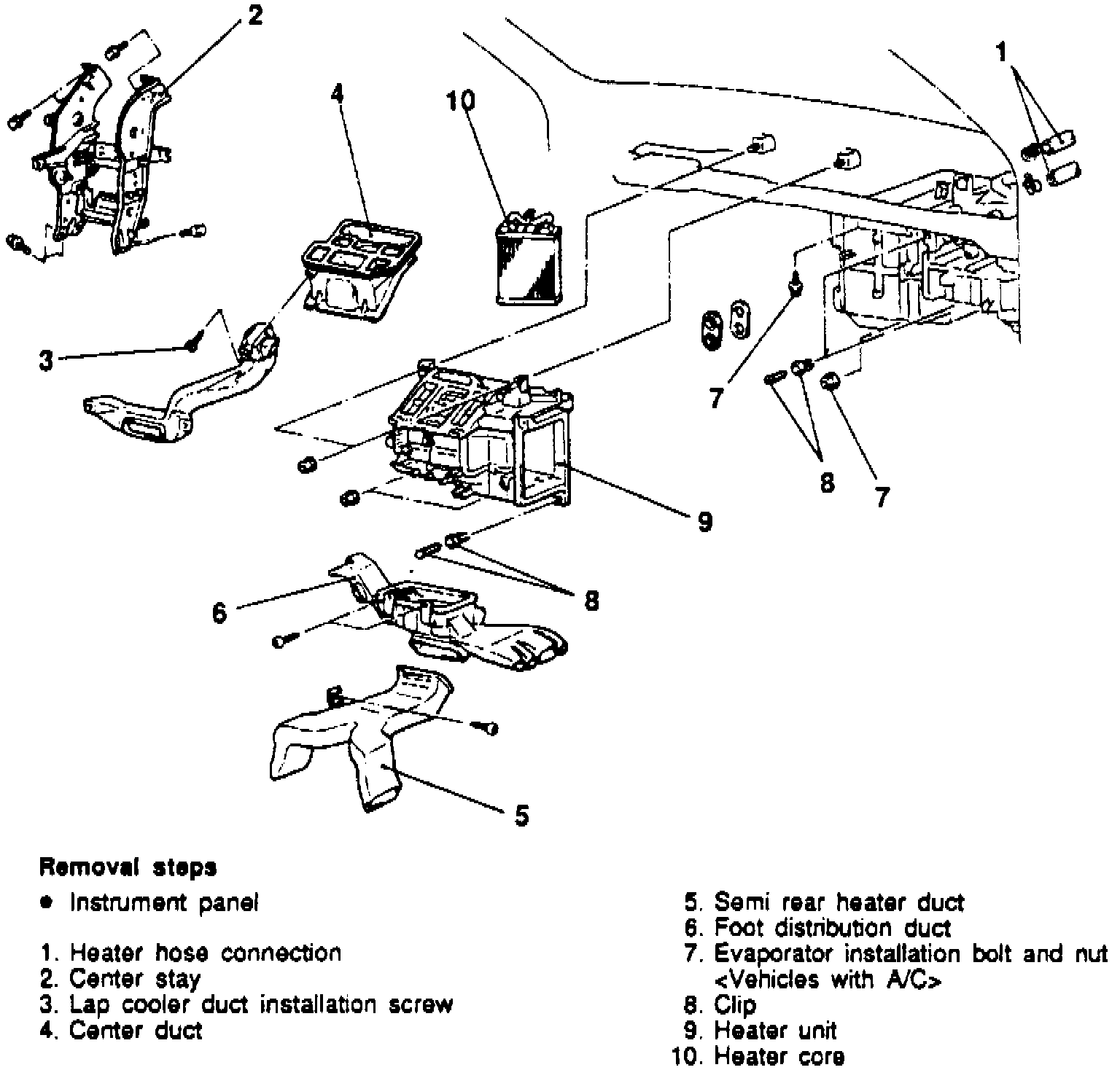

Fig. 20 Exploded View Of Heater Unit:

Instrument Panel, Gauges and Warning Indicators
Restraints and Safety Systems

Remove heater unit in numbered sequence, Fig. 31, noting the following:

1. Drain engine coolant.
2. Remove instrument panel as outlined in Instrument Panel. Instrument Panel, Gauges and Warning Indicators
3. Reverse procedure to install. Refill engine coolant.
