Removal and Installation

REMOVAL
1. Relieve pressure in the fuel pipe line to prevent fuel outflow.

NOTE: Cover the fuel pipe line with a shop towel after relieving pressure as some pressure may still remain.

2. Drain engine coolant and remove the battery.

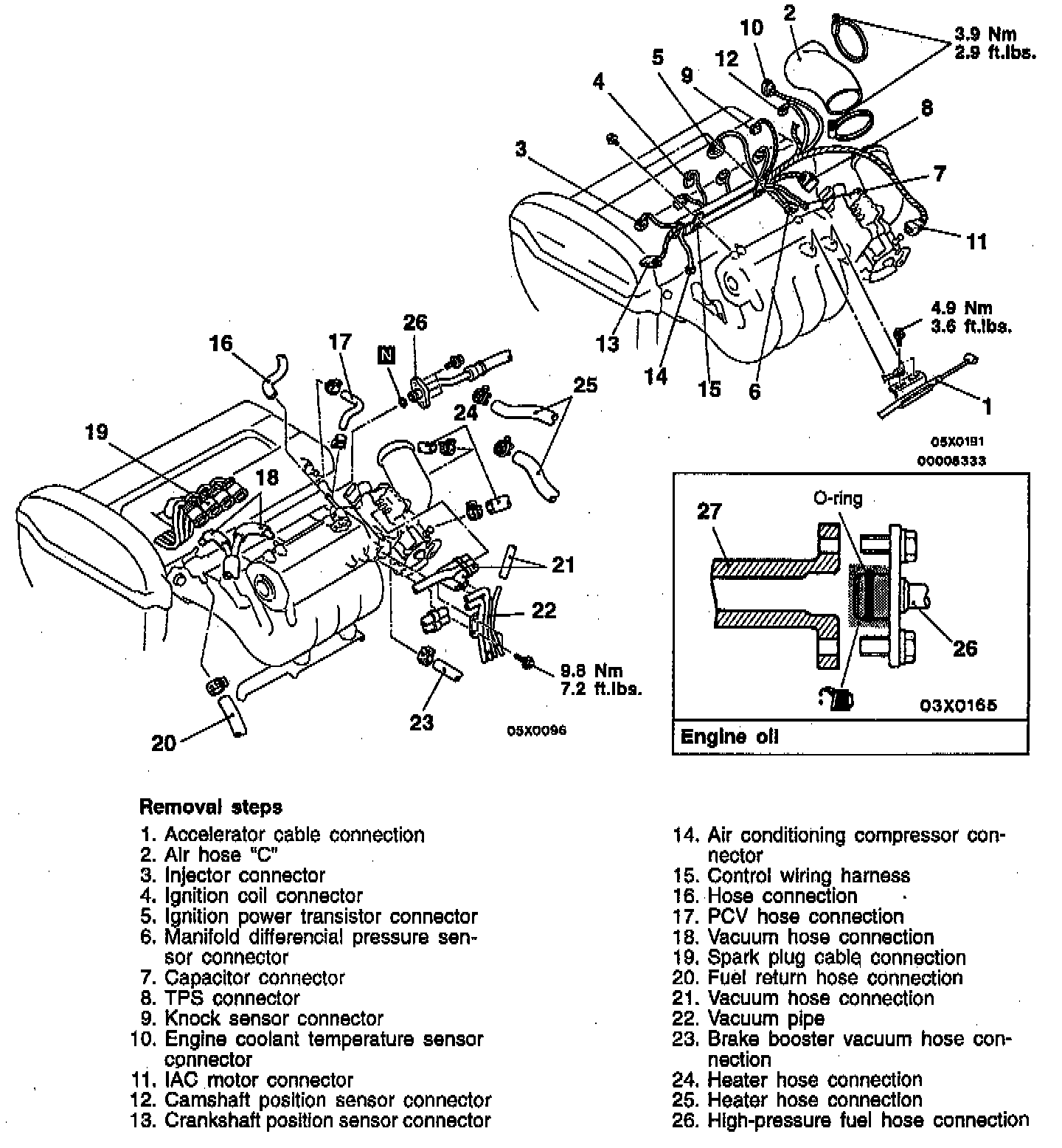

3. Refer to the illustration for the removal steps, noting the following:

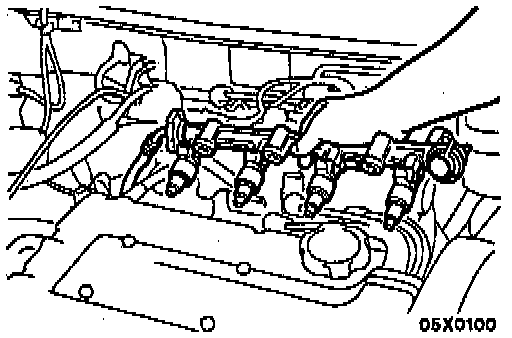

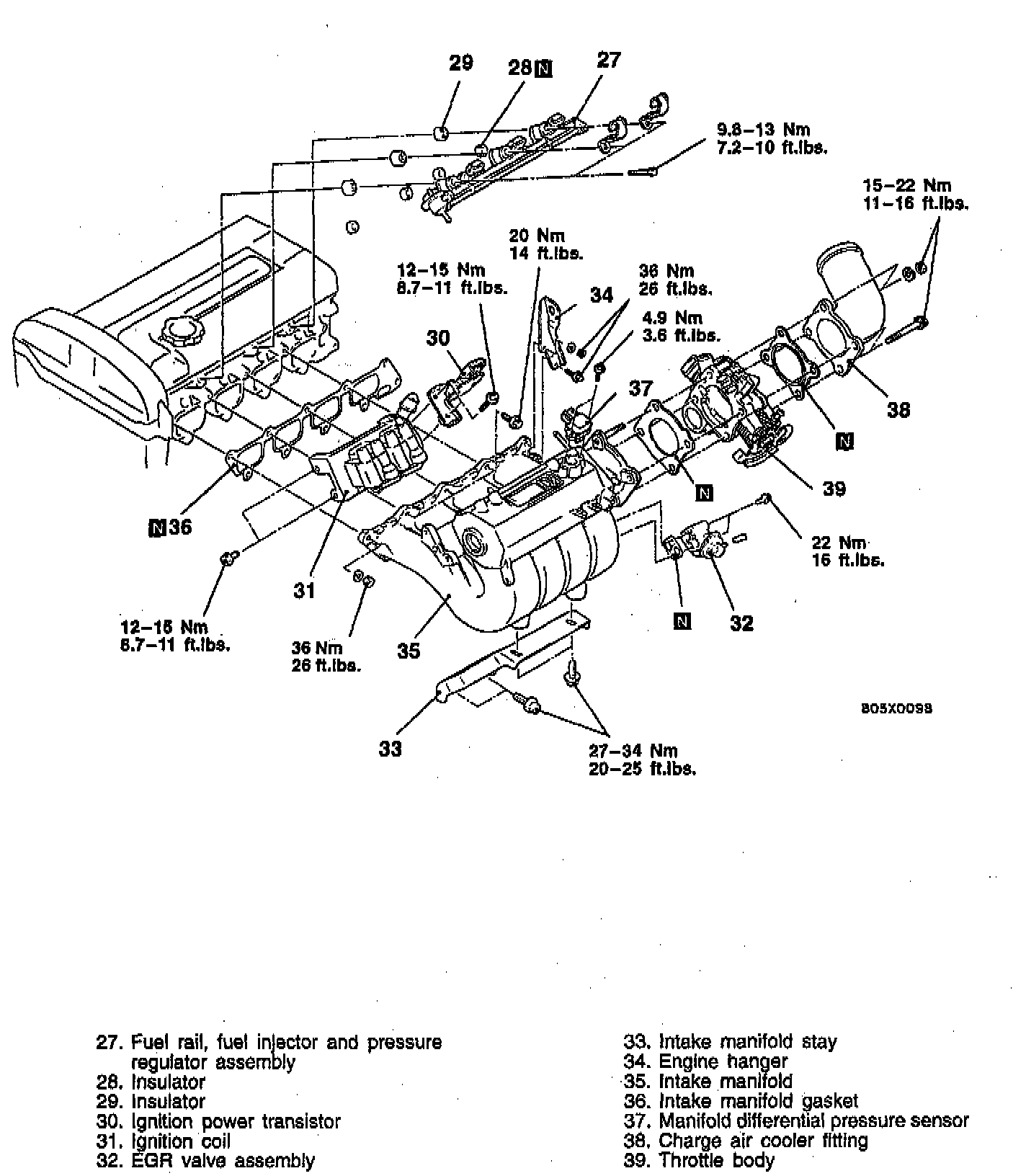

4. Remove fuel rail with fuel injector and pressure regulator attached.

CAUTION: Do not drop fuel injector when removing the fuel rail.

INSTALLATION
1. Reverse the removal procedure to install, noting the following:
2. When connecting the high pressure fuel hose to the fuel rail, apply a small amount of new engine oil to the hose union, and then insert, being careful not to damage the O-ring.

CAUTION: Do not let engine oil get into the fuel rail.
