Roll Stopper

REMOVAL

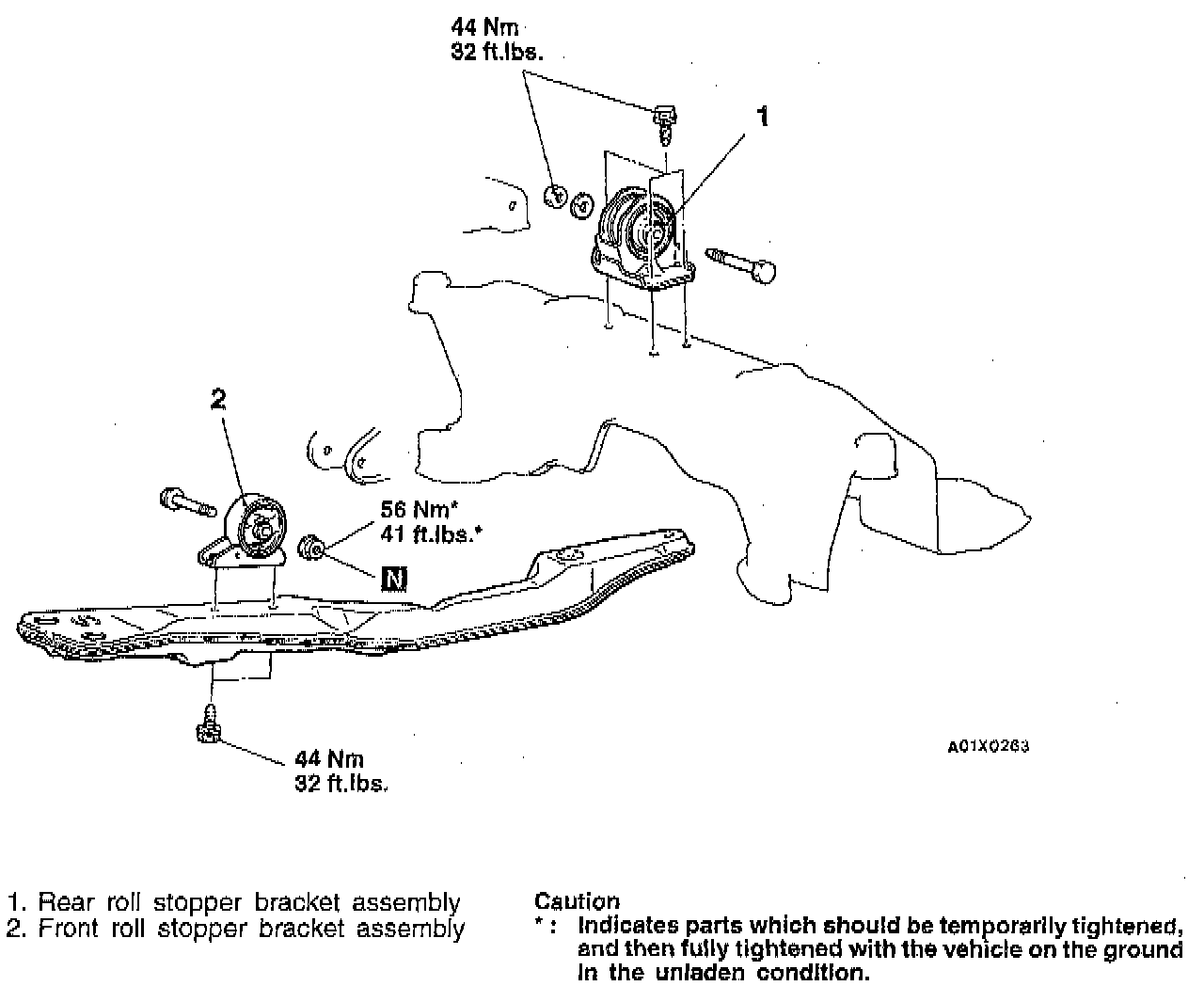

1. Follow removal procedure outlined in the illustration.

INSTALLATION
1. Follow removal procedure in reverse order, noting the following.

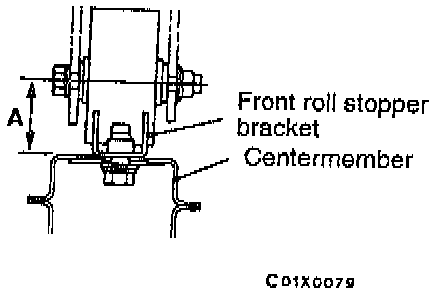

2. If the dimension (A) shown in the illustration is outside the 43 ±3 mm (1.69 ±0.12 inch) when the weight of the engine is on the body, replace the front roll stopper bracket assembly.
