Procedure

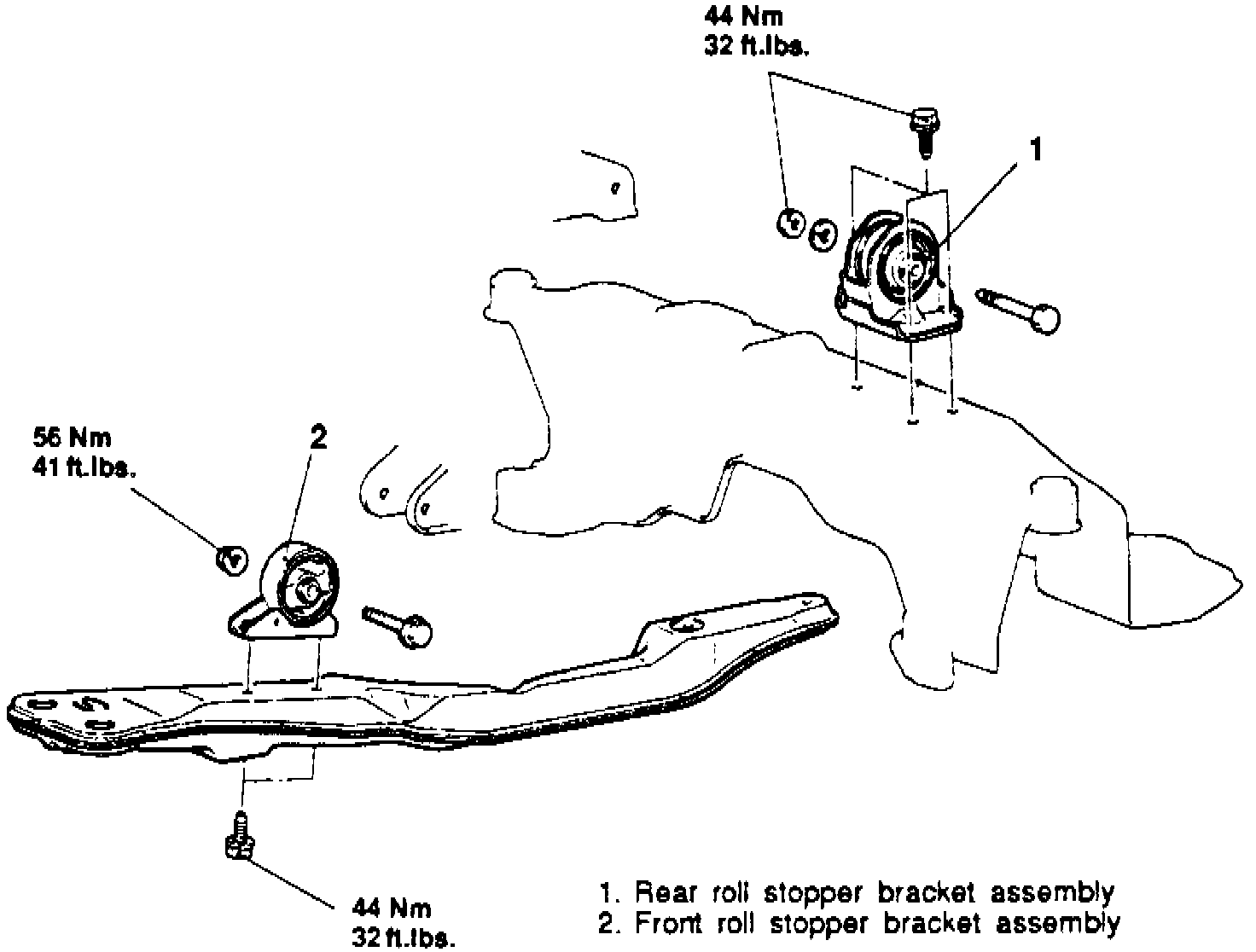

Fig. 9 Engine Roll Stopper Replacement:

Remove engine roll stoppers in numbered sequence, Fig. 9, noting the following:
1. Slightly raise and support engine, removing weight of engine from mount.
2. Inspect insulators for damage or cracks and replace as necessary.
3. Inspect brackets and replace if deformed or damaged.

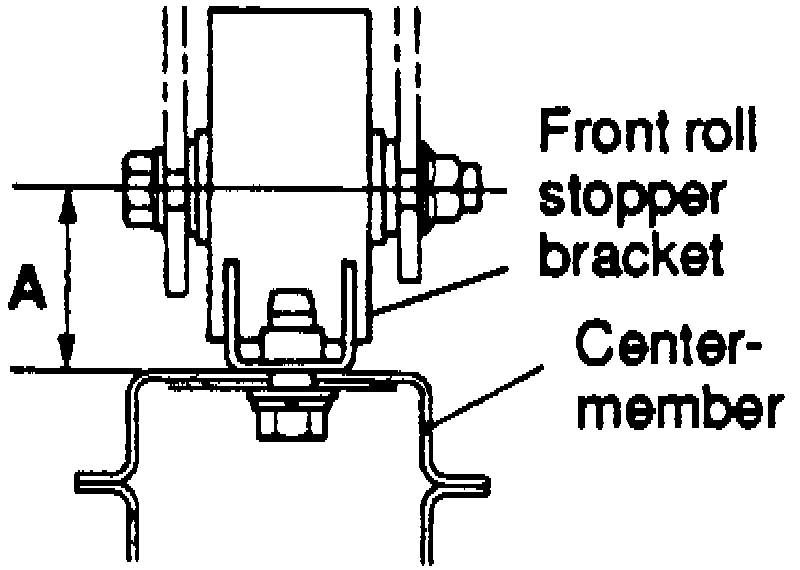

Fig. 10 Front Roll Stopper Clearance:

4. Inspect front roll stopper bracket assembly. If the dimension shown in Fig. 10 is not 1.57-1.81 inches when the weight of the engine is on the body, replace the front roll stopper assembly.

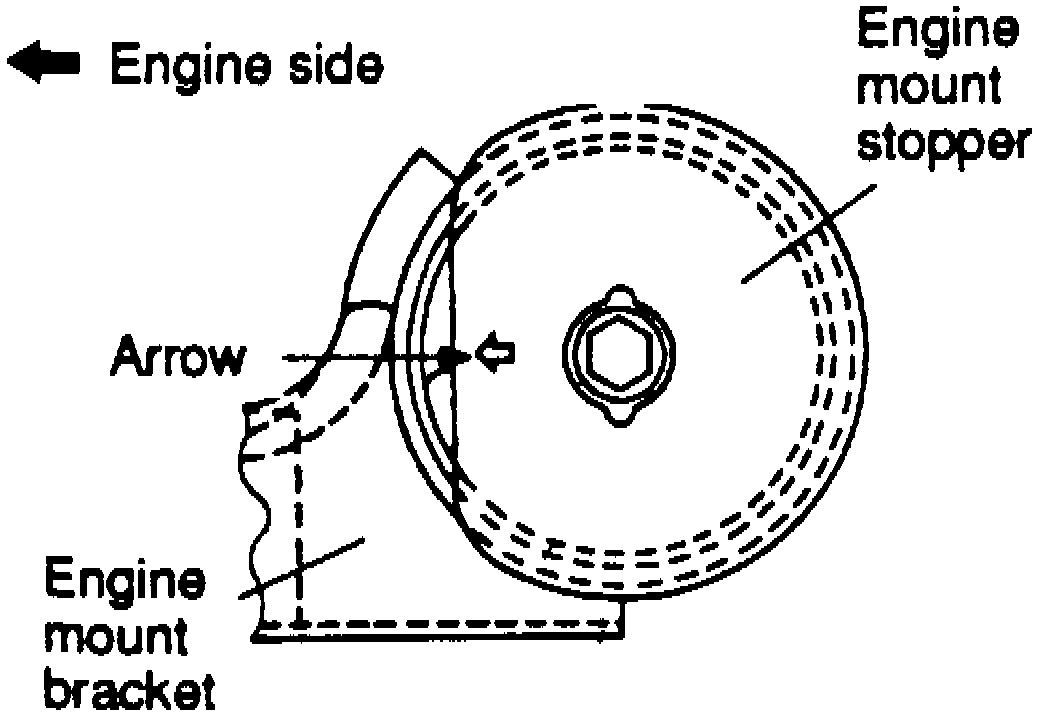

Fig. 4 Engine Mount Stopper Installation:

5. When installing mounting stoppers, ensure arrow on stopper faces center of engine, Fig. 4.
6. Reverse procedure to install. Tighten to specifications.
