Camshaft: Testing and Inspection

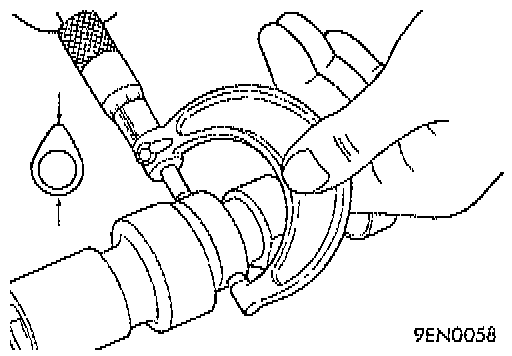

Measure the cam height. It should be 34.91 mm (1.37 inch) and wear limit is 34.41 mm (1.36 inch).
