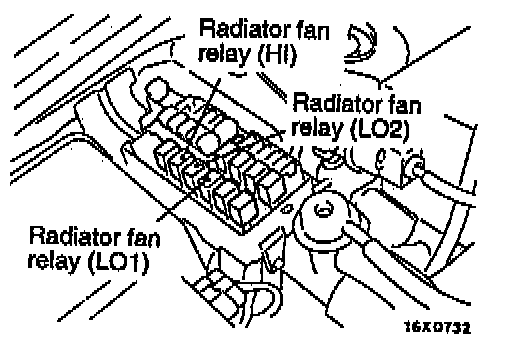

Radiator Cooling Fan Motor Relay: Testing and Inspection

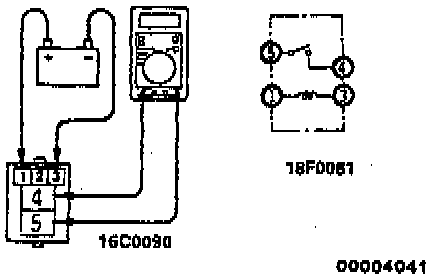

1. With battery (positive) power supplied to the No. 1 terminal and the negative cable on terminal No. 3, there should be continuity across terminals 4 and 5.
2. When power is not supplied there should be continuity across terminal Nos. 1 and 3.
