Turn Signal Lamp

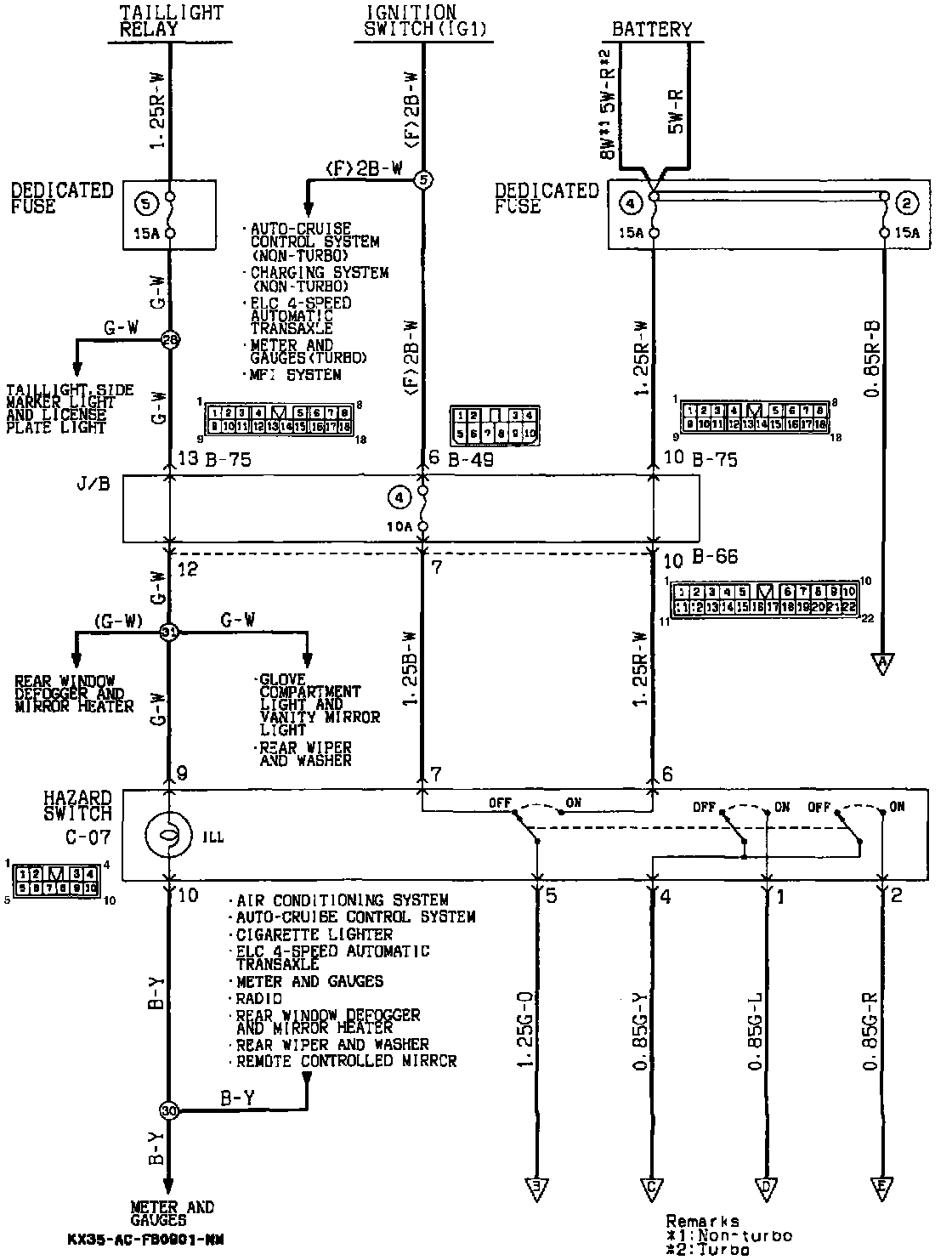

Turn-Signal, Hazard Warning And Stop Light Circuit (Part 1 Of 4):

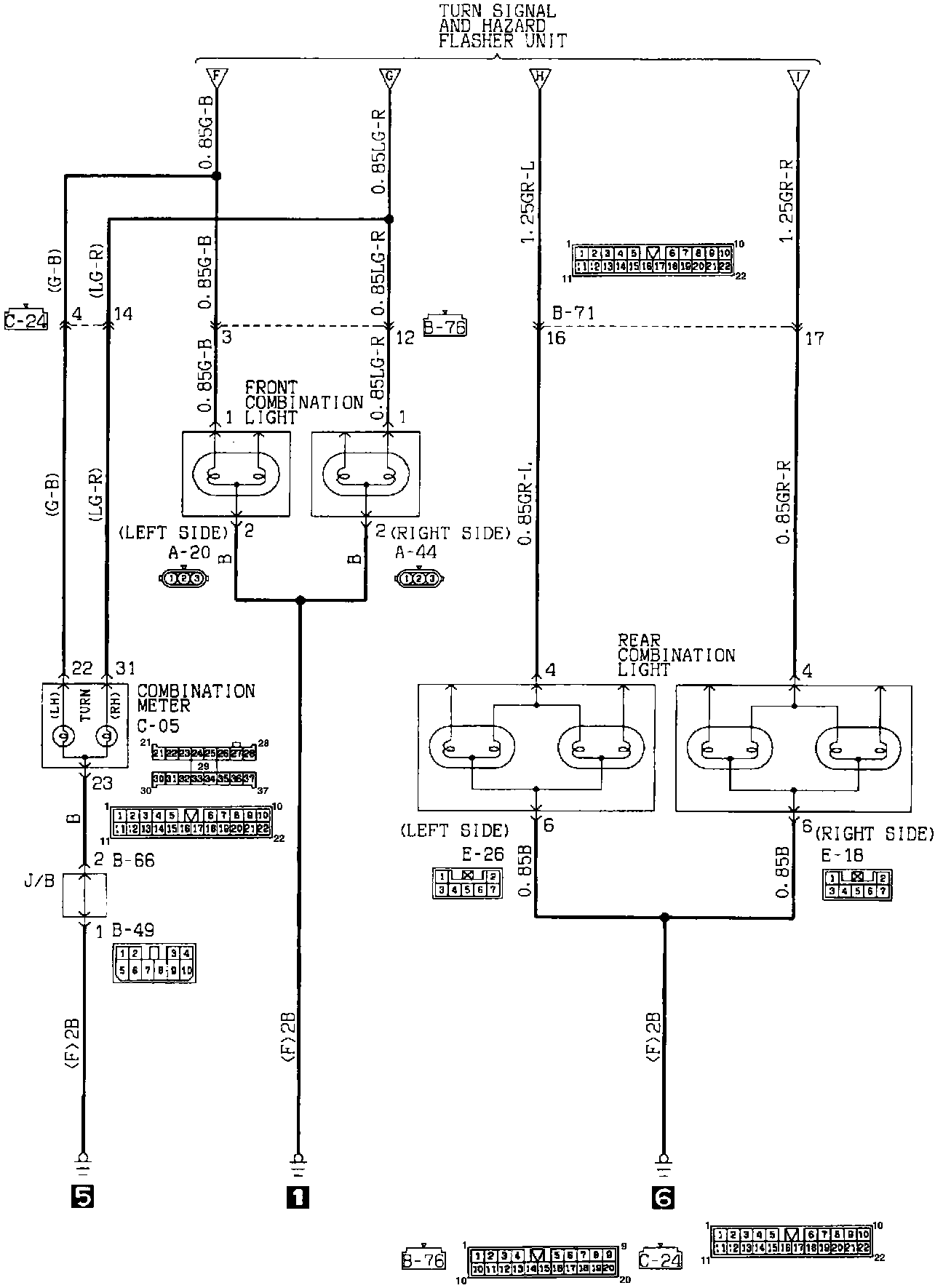

Turn-Signal, Hazard Warning And Stop Light Circuit (Part 2 Of 4):

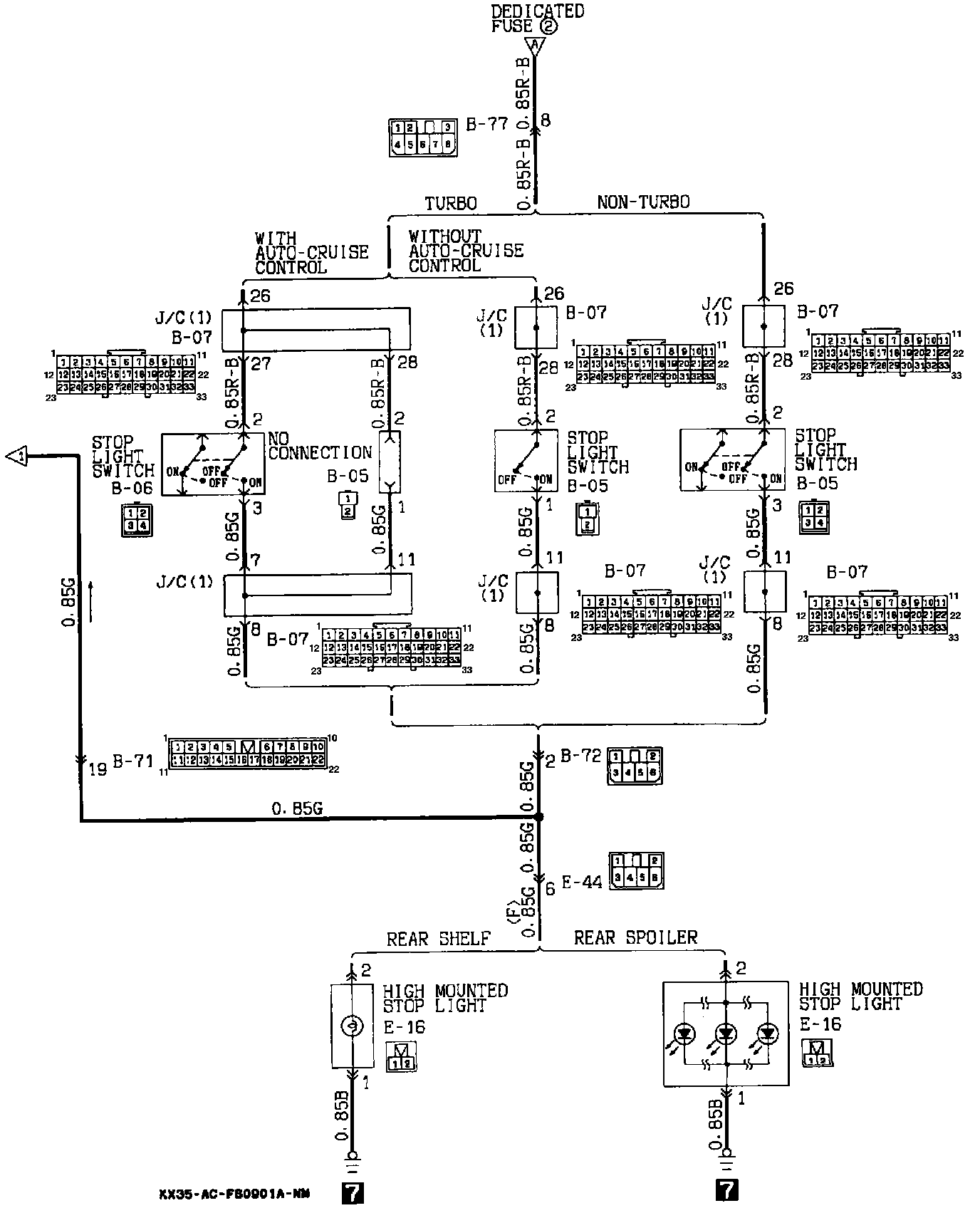

Turn-Signal, Hazard Warning And Stop Light Circuit (Part 3 Of 4):




Turn-Signal, Hazard Warning And Stop Light Circuit (Part 4 Of 4):
