System Diagram

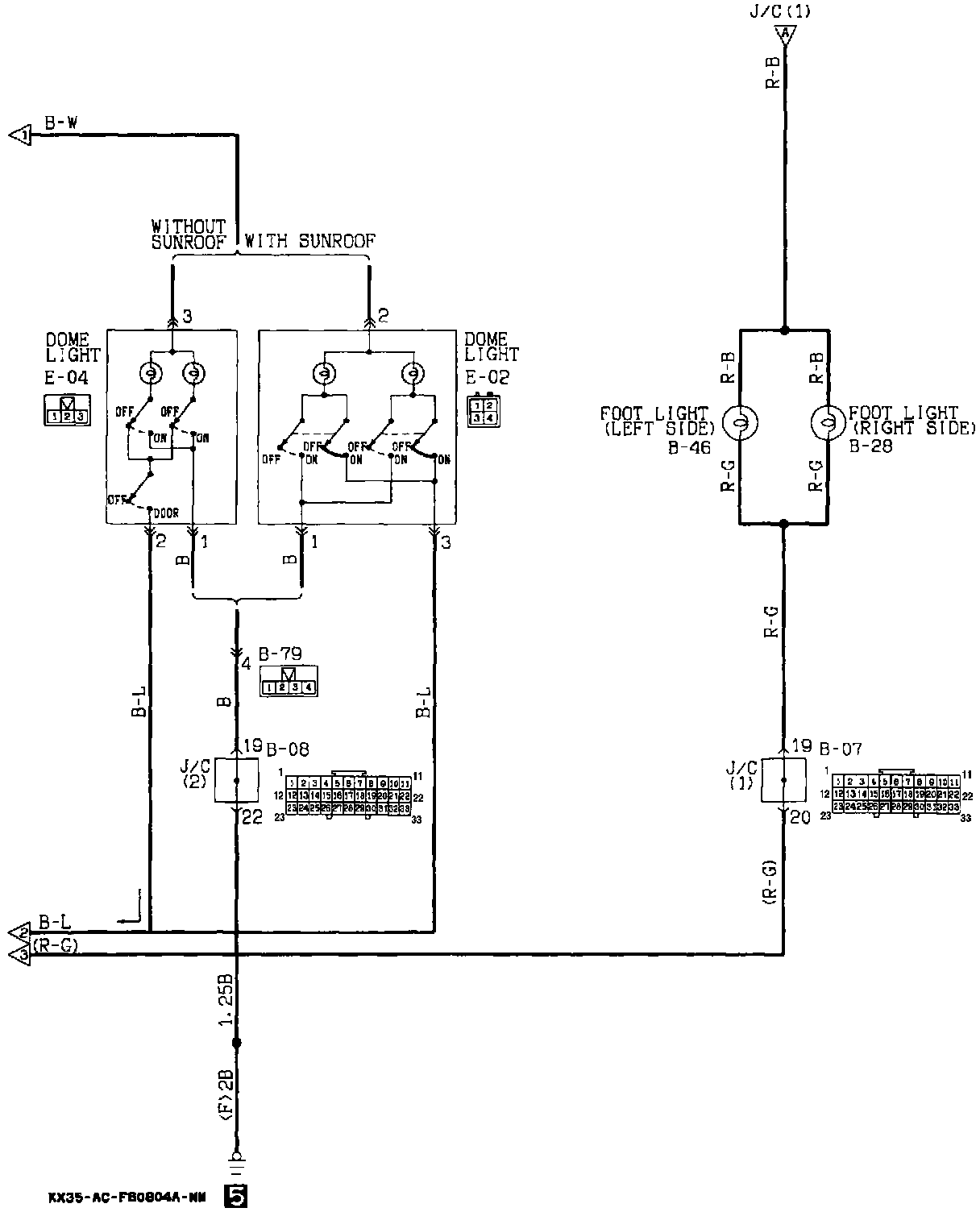

Dome, Foot And Luggage Compartment Light Circuit (Part 1 Of 3):

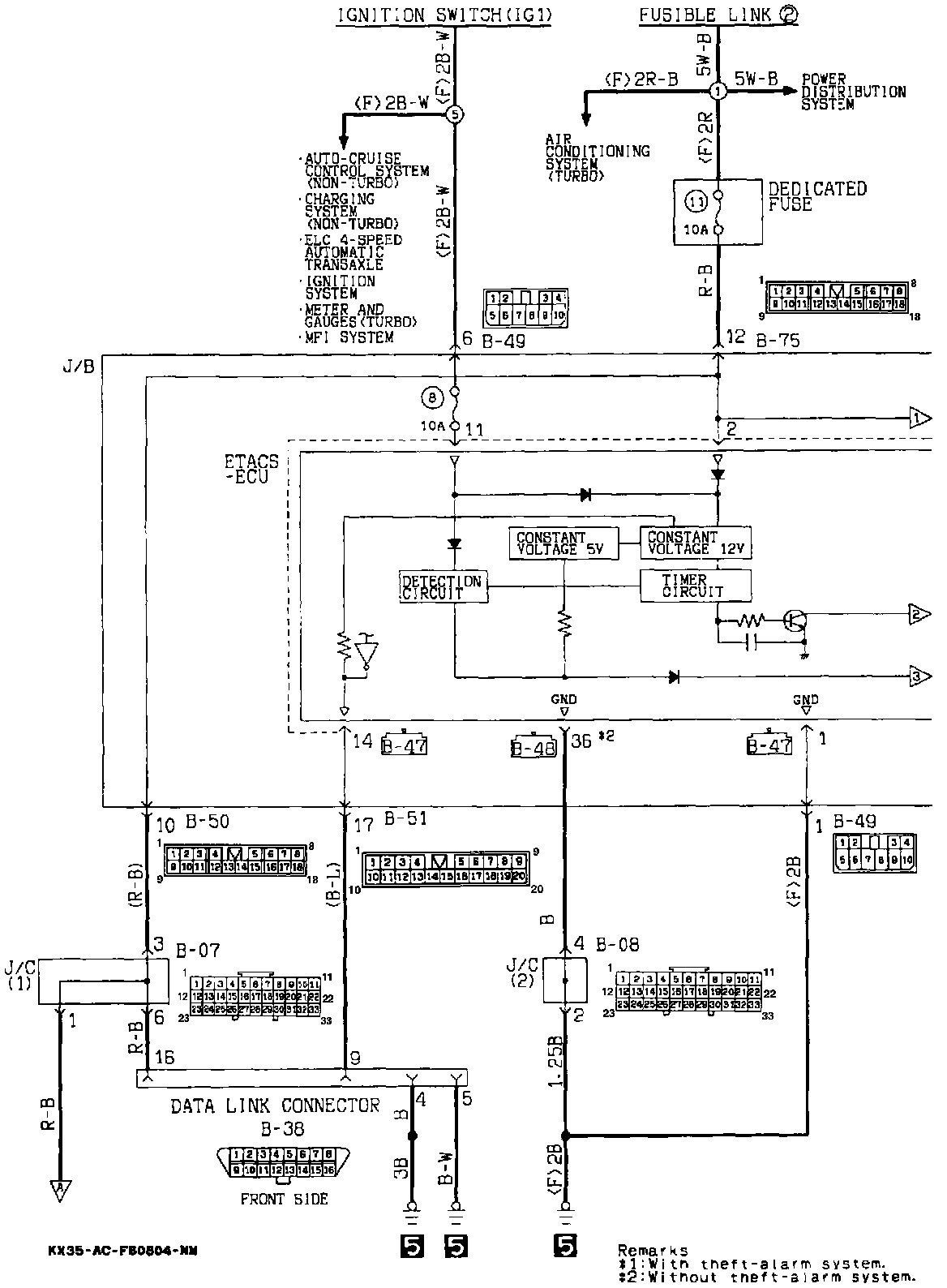

Dome, Foot And Luggage Compartment Light Circuit (Part 2 Of 3):

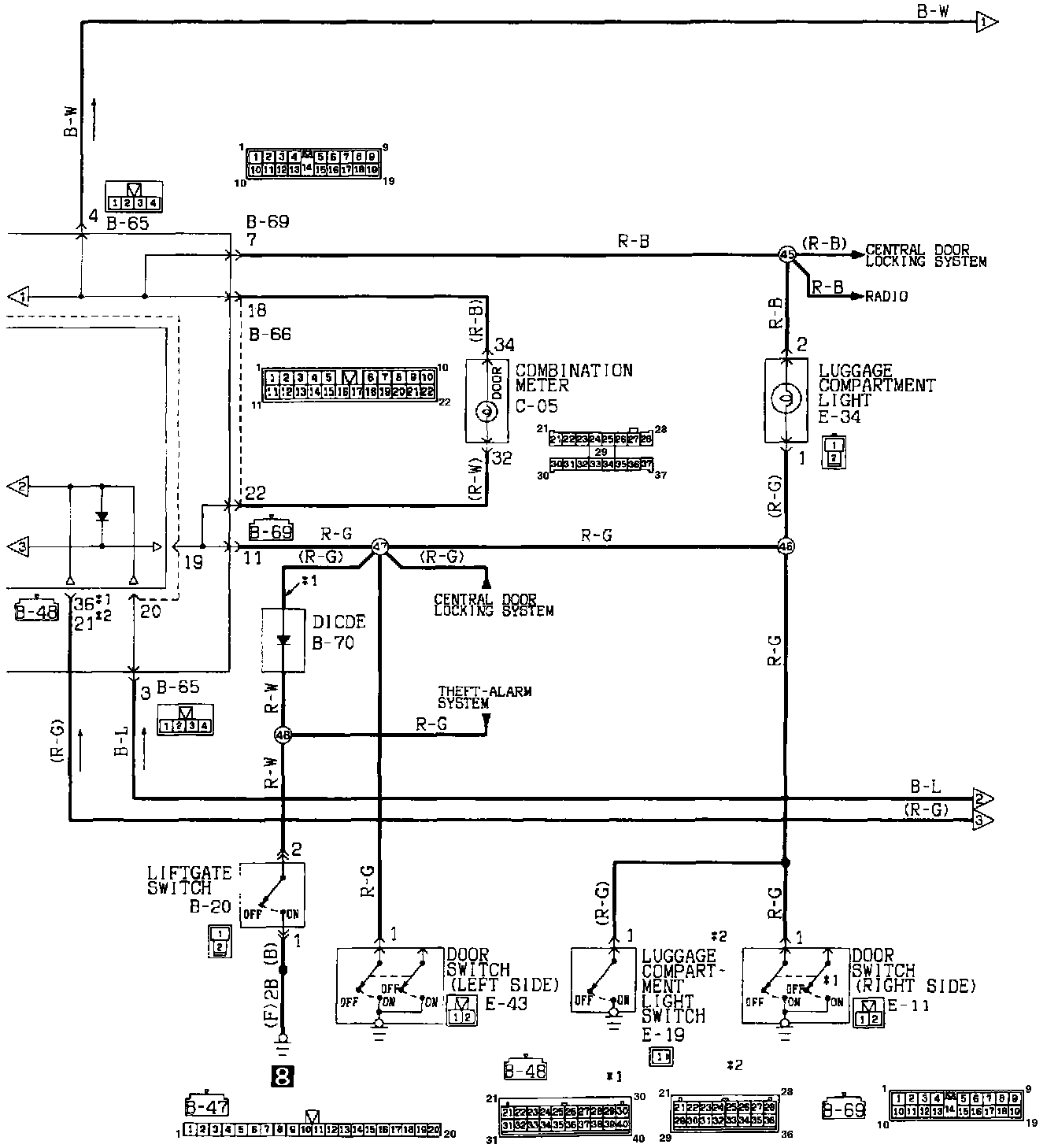

Dome, Foot And Luggage Compartment Light Circuit (Part 3 Of 3):
