Flow of Diagnosis

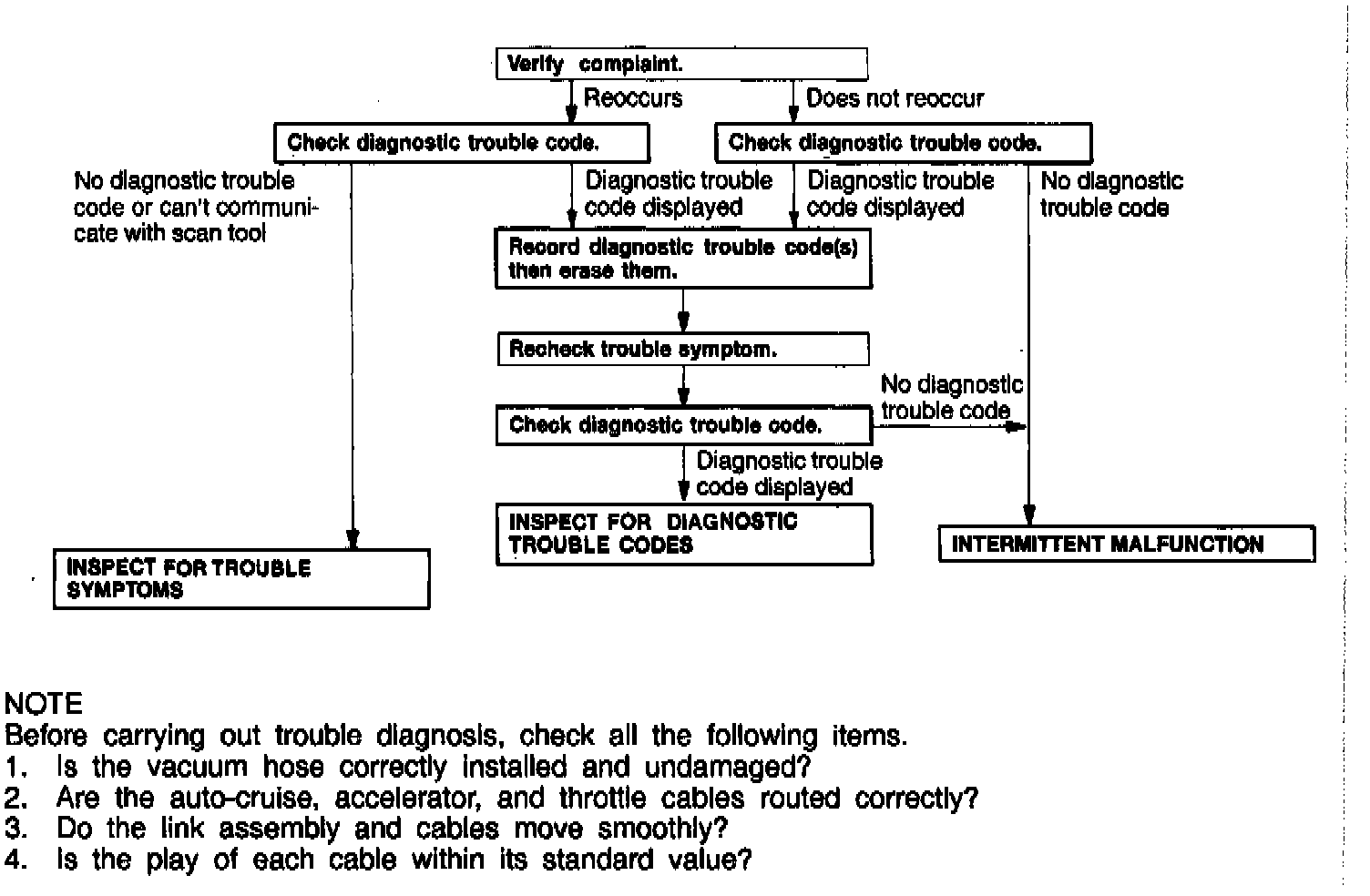

Fig. 5 Troubleshooting:




Refer to Fig. 5 when troubleshooting the speed control system.
