Brake Booster - Specifications Change
NO.: TSB-96-5-002DATE: March, 1996
MODEL: 1995 Eclipse
SUBJECT:
BRAKE BOOSTER SPECIFICATIONS CHANGE - SERVICE MANUAL REVISION
TSB Revision TSB-96-35-002
PURPOSE
1995 Eclipse models were originally released with four sizes of brake boosters, two for models without ABS, and two more for models with ABS. In July, 1994, one of the four boosters was discontinued. This bulletin revises the brake booster availability chart to reflect this change.
SERVICE MANUALS AFFECTED
1995 Eclipse Vol. 112, Page 35A-2
SERVICE MANUAL REVISION

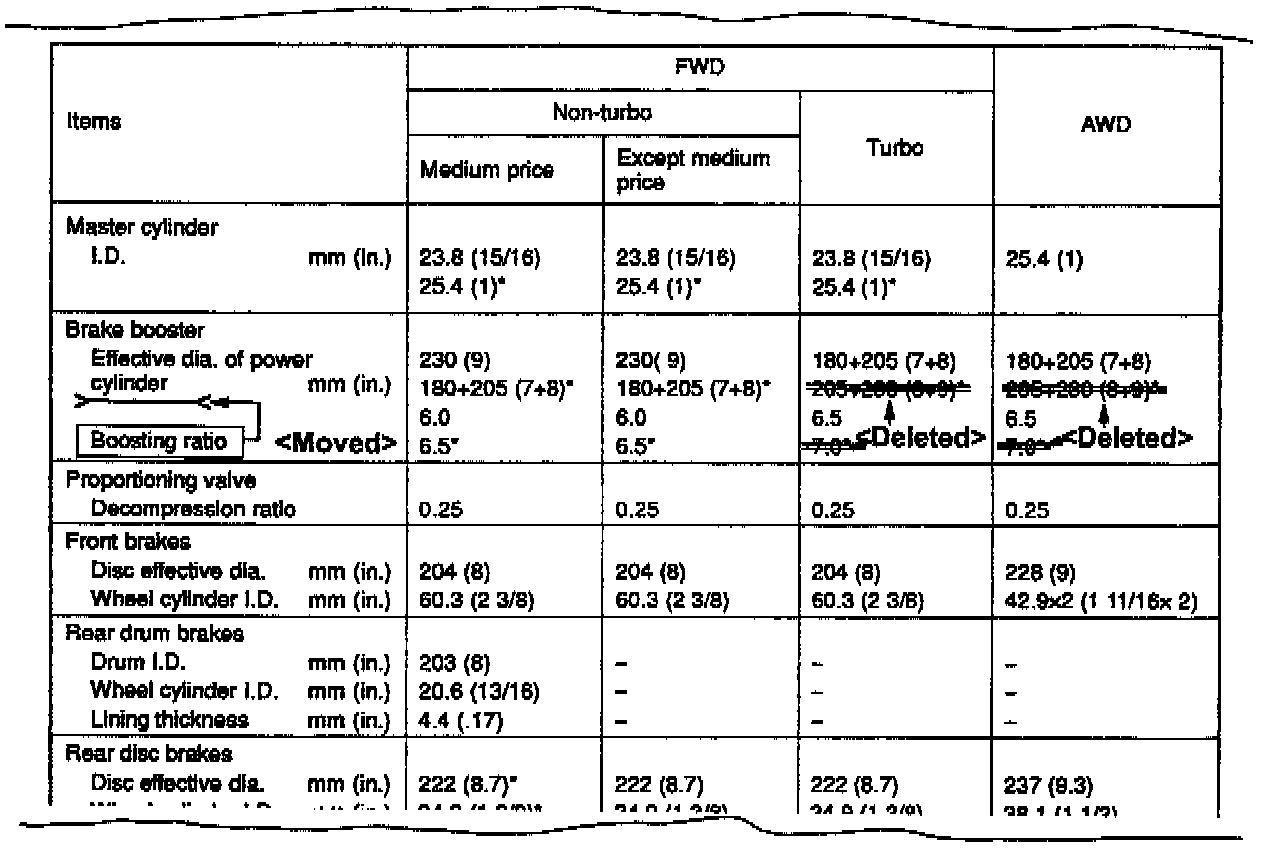

Revise the brake booster chart on Page 35A-2 as shown.
