Without Scan Tool

DIAGNOSTIC TROUBLE CODES CHECK WITH THE ABS WARNING LIGHT





(1) Use the special tool (diagnostic trouble code check harness) to ground the terminal (1) of the data link connector.

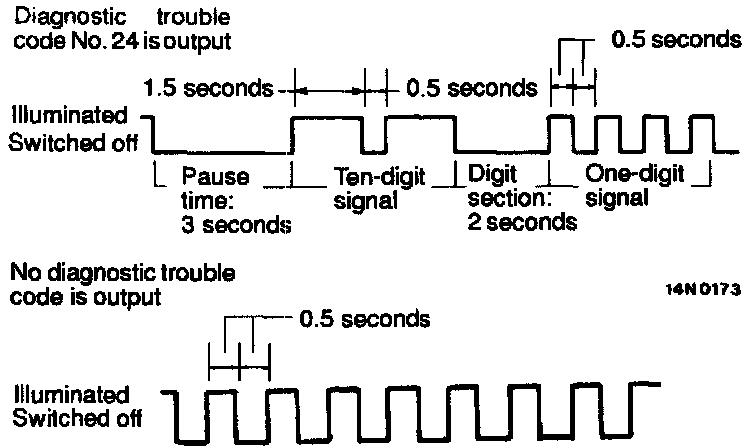

(2) Take a reading of the diagnostic trouble code from the flashing of the ABS warning light.

NOTE:
(1) Other diagnostic trouble codes also are output as the same code numbers as when using the scan tool.
(2) Diagnostic trouble code No.16 can be output when the ABS system fails because of a battery surge.
