Anti-Lock Braking System (ABS) FWD

ERASING DIAGNOSTIC TROUBLE CODES WITH THE ABS WARNING LIGHT





(1) Depress the brake pedal to activate the stop lamps .(stop lamp switch ON)
(2) Turn the ignition switch to ON.

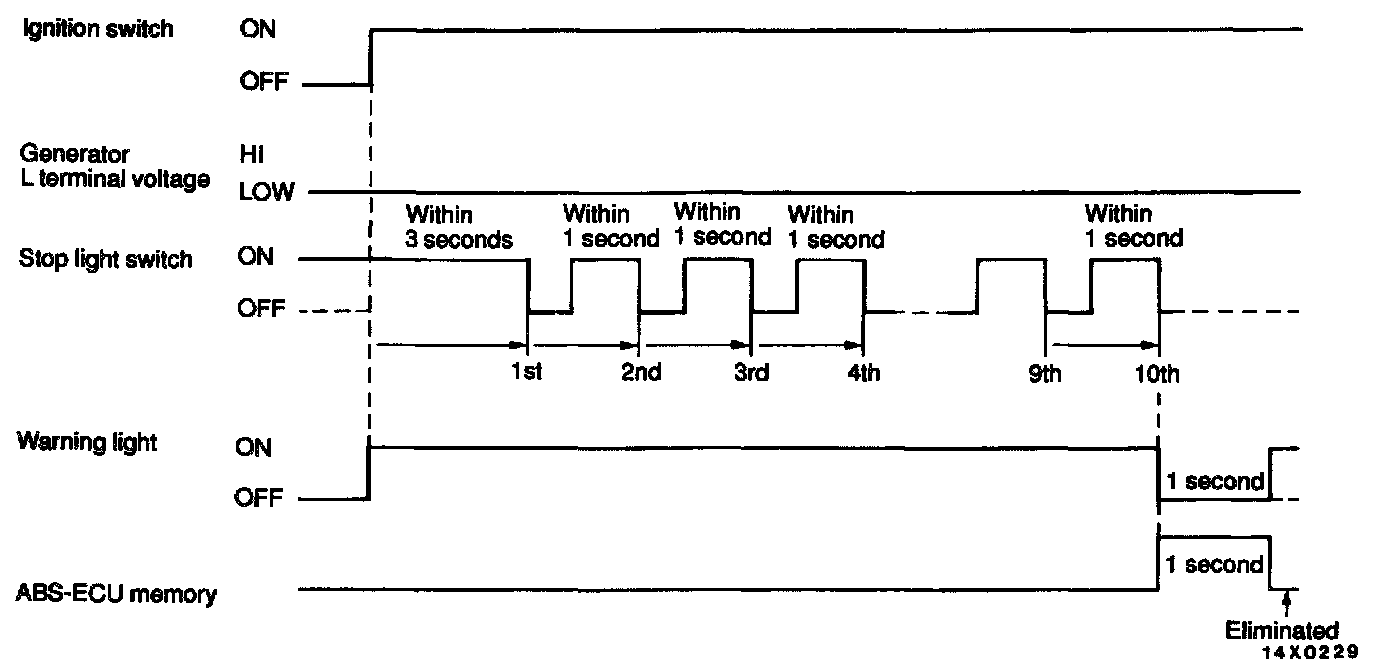

(3) When the ignition switch is turned on while the stop light switch is on, depress the brake pedal 10 times at one second intervals. (see the chart)

CAUTION: The memory cannot be erased under the following conditions.
(1) When the stop light switch is not turned on and off according to the table below.
(2) When the generator L terminal voltage increased (HI state).
