Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures (Charts)
>>
B-5 Distortion on AM or on Both AM and FM
B-5 Distortion on AM or on Both AM and FM

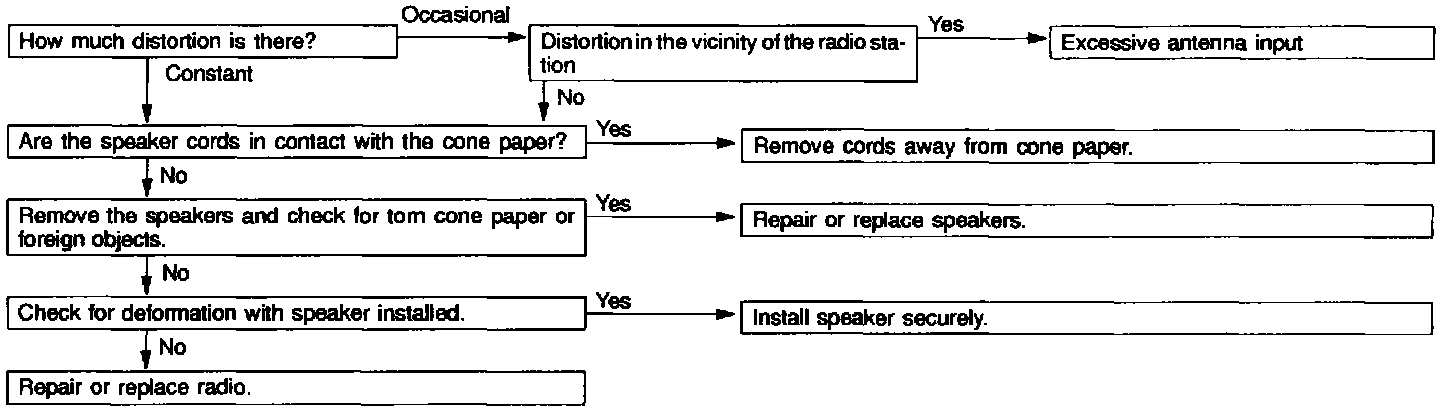

Chart B 5:
Distortion on AM or on both AM and FM.
