Home >> Mitsubishi >> 1995 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures (Charts) >> B-4 Insufficient Sensitivity

B-4 Insufficient Sensitivity

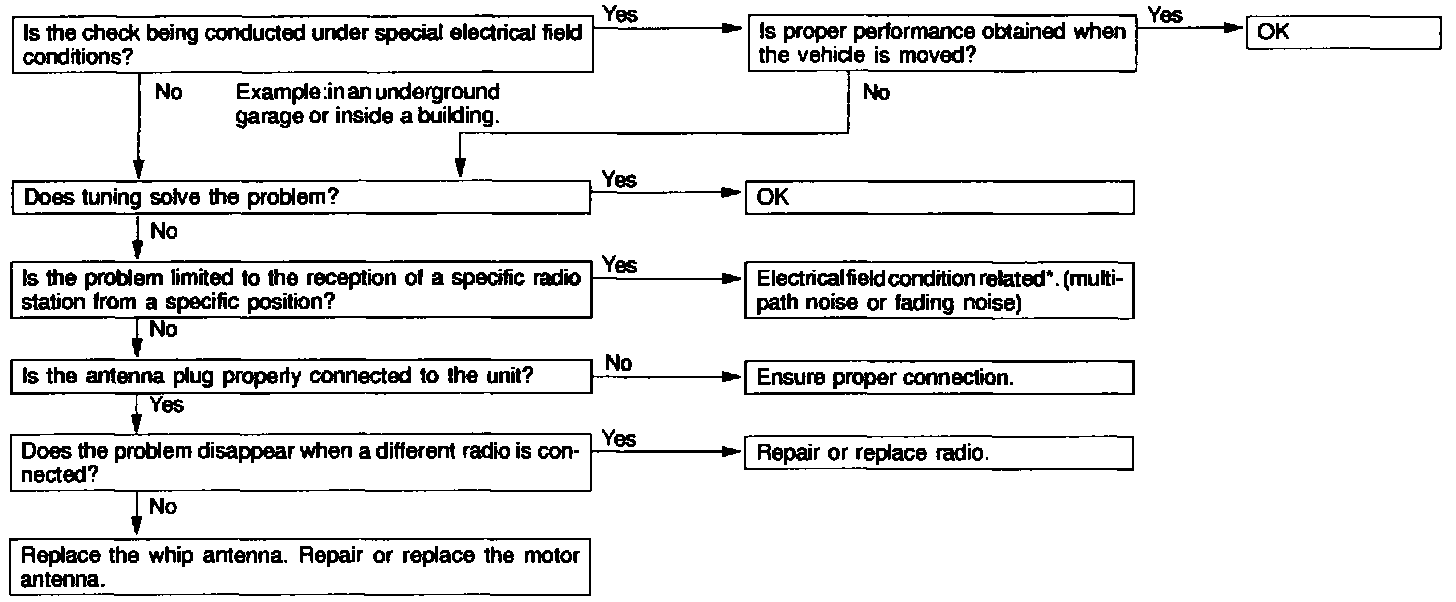

Chart B 4:





Insufficient sensitivity.

NOTE: For Multipath noise and fading noise problems, A-8 Noise Sometimes Appears on FM During Travelling
