Rear Speaker

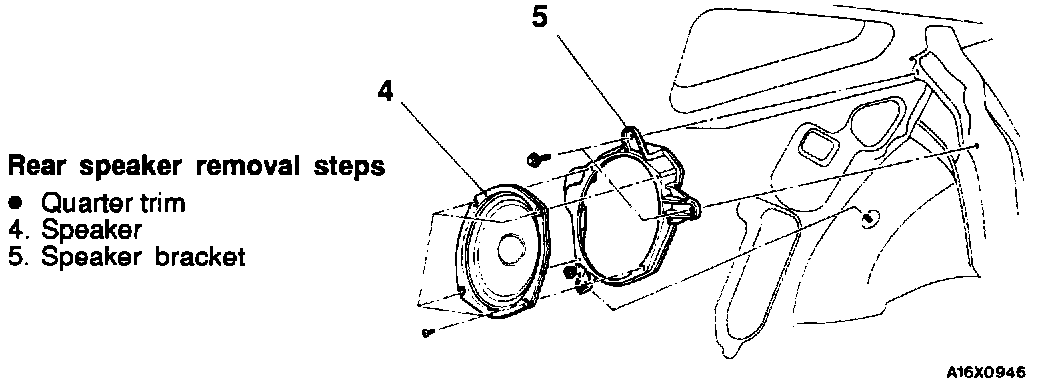

Rear Speaker:





REMOVE
- Quarter trim
4. Speaker
5. Speaker bracket

INSTALL
4. Speaker bracket
5. Speaker
- Quarter trim
