Door Speaker
Door Speaker

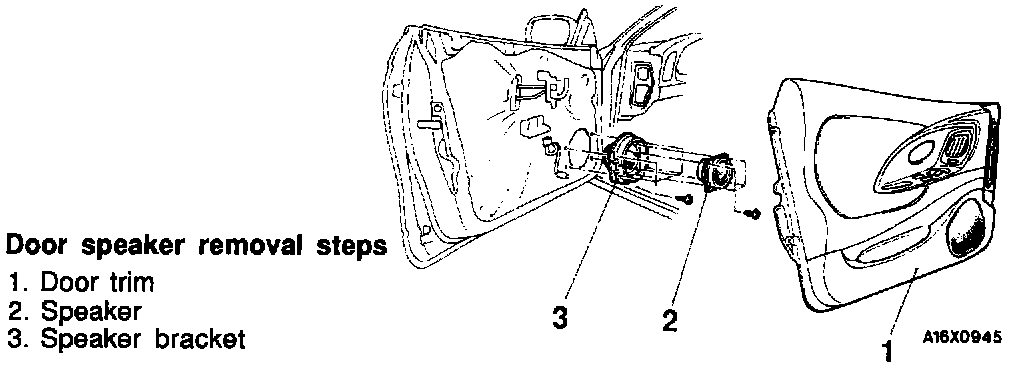

Door Speaker:
REMOVE
1.
Door trim
2.
Speaker
3.
Speaker bracket
INSTALL
1.
Speaker bracket
2.
Speaker
3.
Door trim
