Compact Disc Player (CD): Service and Repair

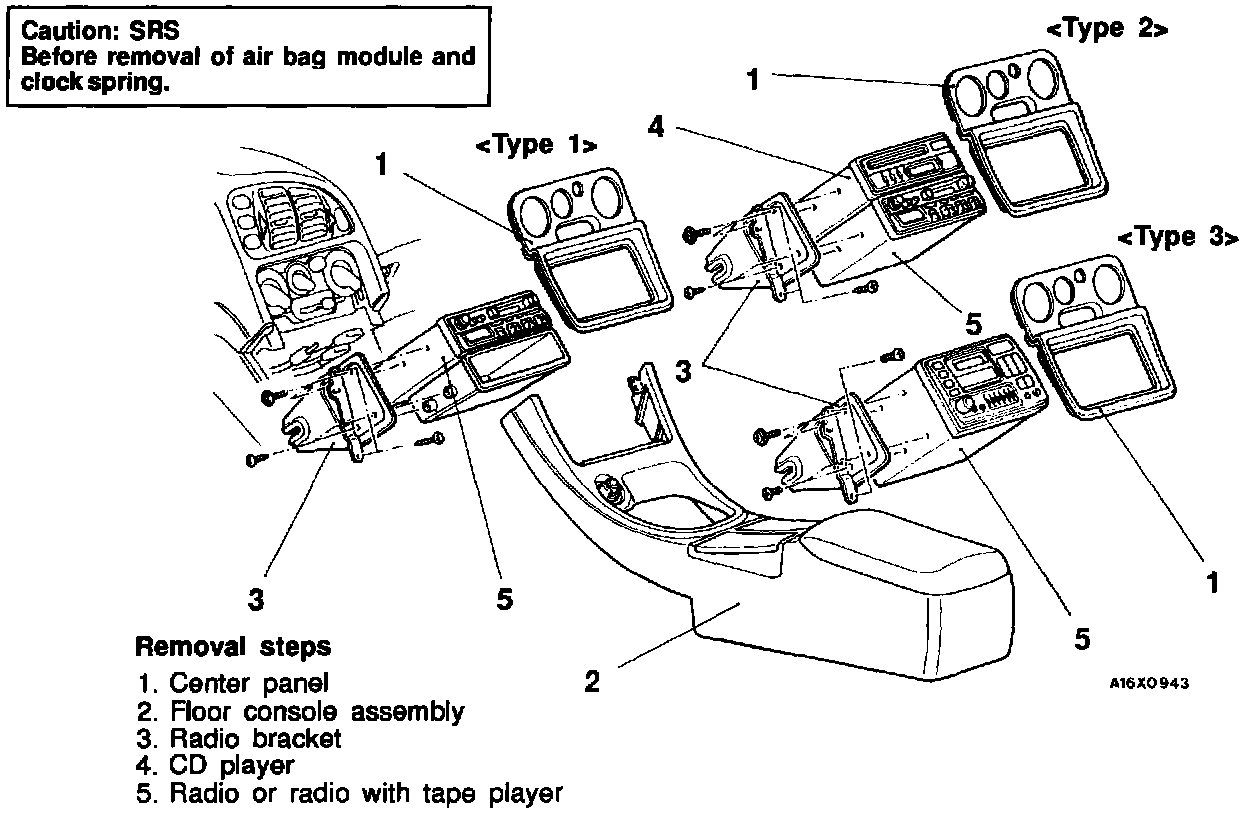

Radio With Tape And CD Player - Removal And Installation:

CAUTION: Before removal of air bag and clock spring refer service precautions and air bag module and clock spring

REMOVE
1. Center panel
2. Floor console assembly
3. Radio bracket
4. CD player
5. Radio or radio with tape player

INSTALL
1. Radio or radio with tape player
2. CD player
3. Radio bracket
4. Floor console assembly
5. Center panel
