Keyless Entry System - Service Manual Revision
NO.: TSB-96-42A-004DATE: April, 1996
MODEL: 1995 Eclipse
SUBJECT:
KEYLESS ENTRY SYSTEM - SERVICE MANUAL REVISION
TSB Revision TSB-96-42A-004
PURPOSE
This bulletin is issued to correct errors in the description of the Remote Keyless Entry System in the 1995 Eclipse Service Manual. It applies only to the factory-installed TRW system.
To reference this bulletin in the service manual, write the TSB Revision number in the TSB Revision box located at the bottom of all affected service manual pages.
AFFECTED SERVICE MANUALS
^ 1995 Eclipse Technical Information, Pages 4-15, 16, 17, 19
^ 1995 Eclipse Volume 1, Pages 42-52, 53, 54, 55, 56, 57
^ 1995 Eclipse Volume 2, Pages 144, 146, 148
SERVICE MANUAL REVISION
Please make revisions as described on the marked-up pages which follow.

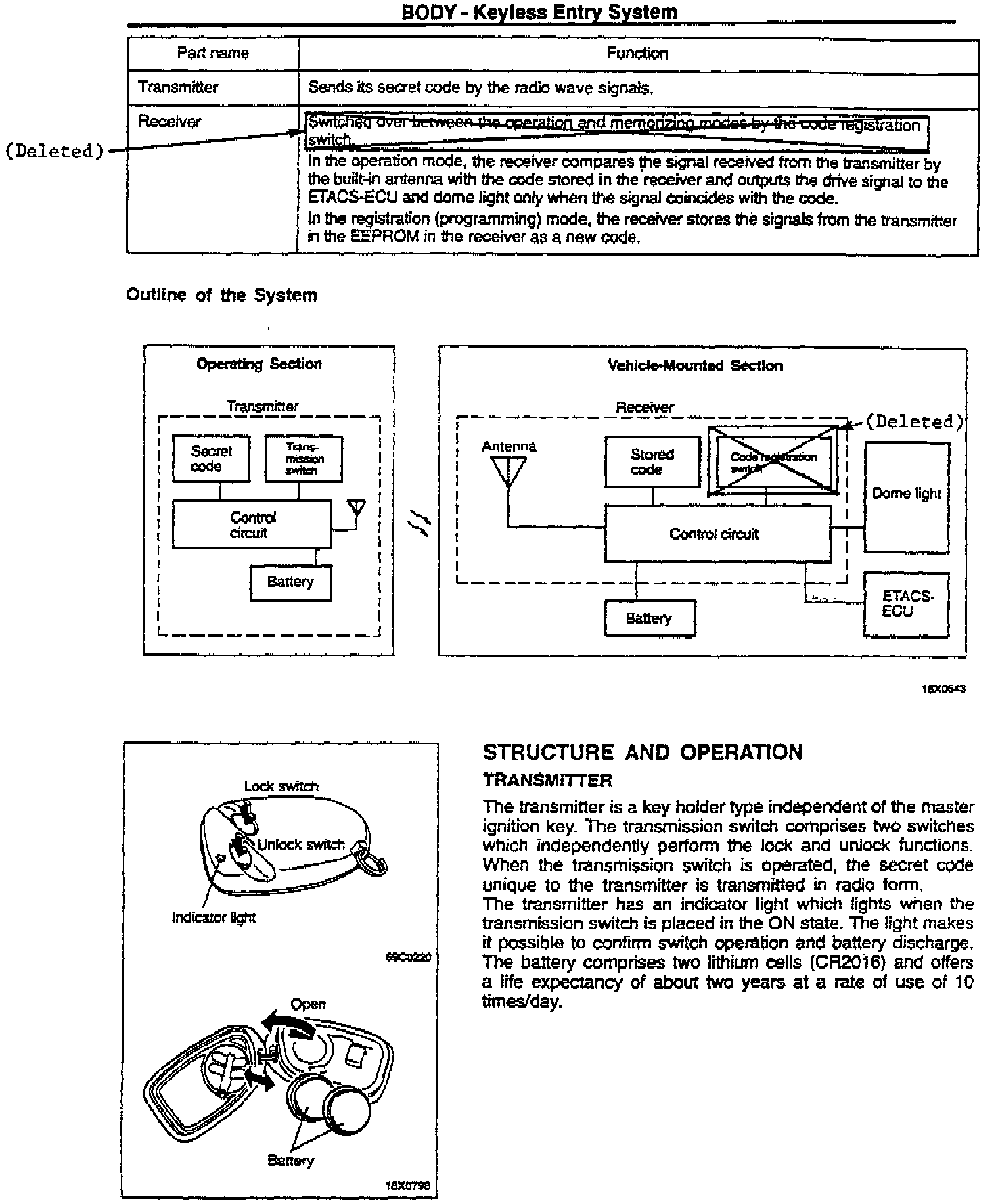

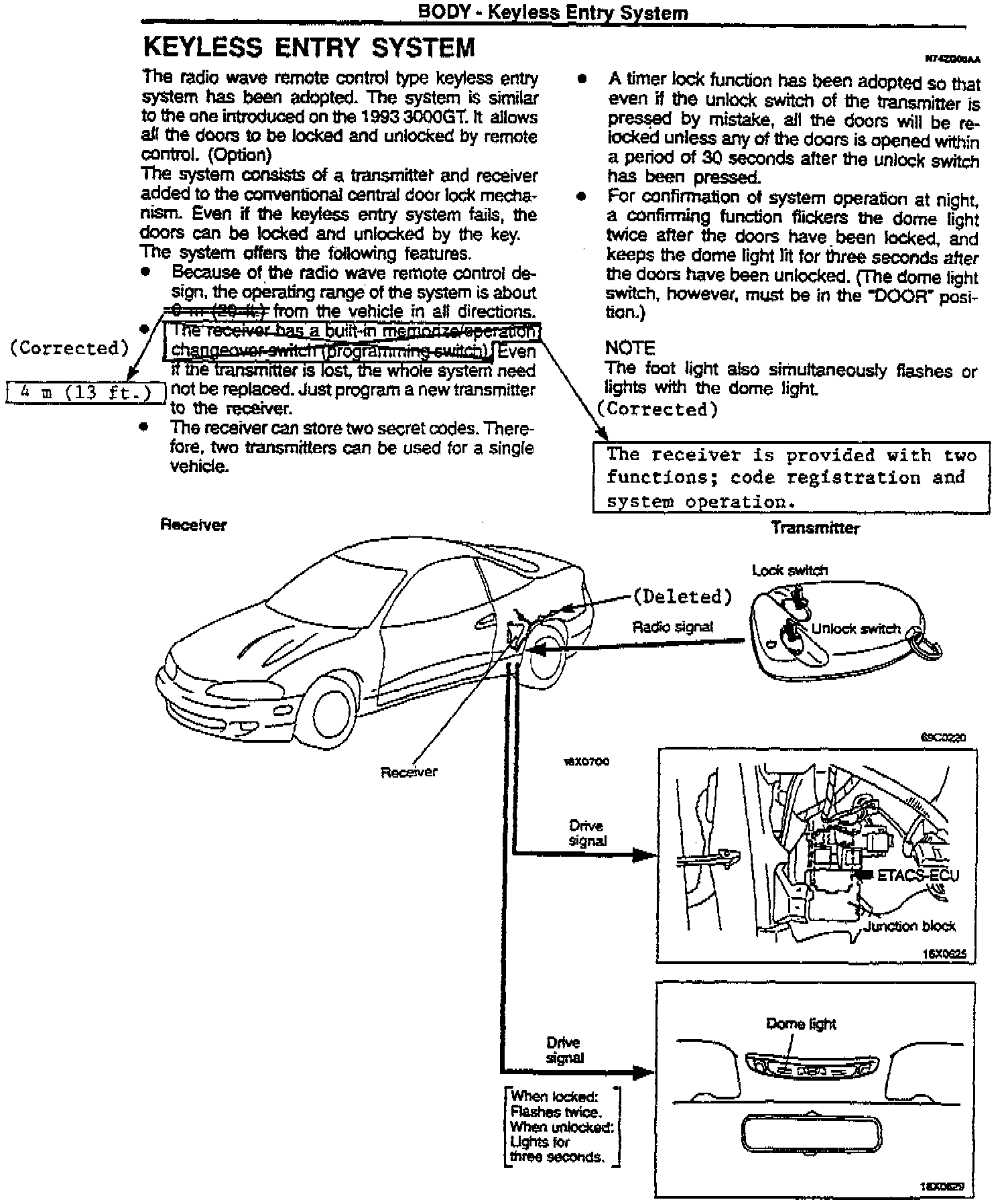

1995 Eclipse Technical Information Manual Page 4-15
Revise Page 4-15 as shown.
1995 Eclipse Technical Information Manual Page 4-16
Delete information from Page 4-16 as shown.

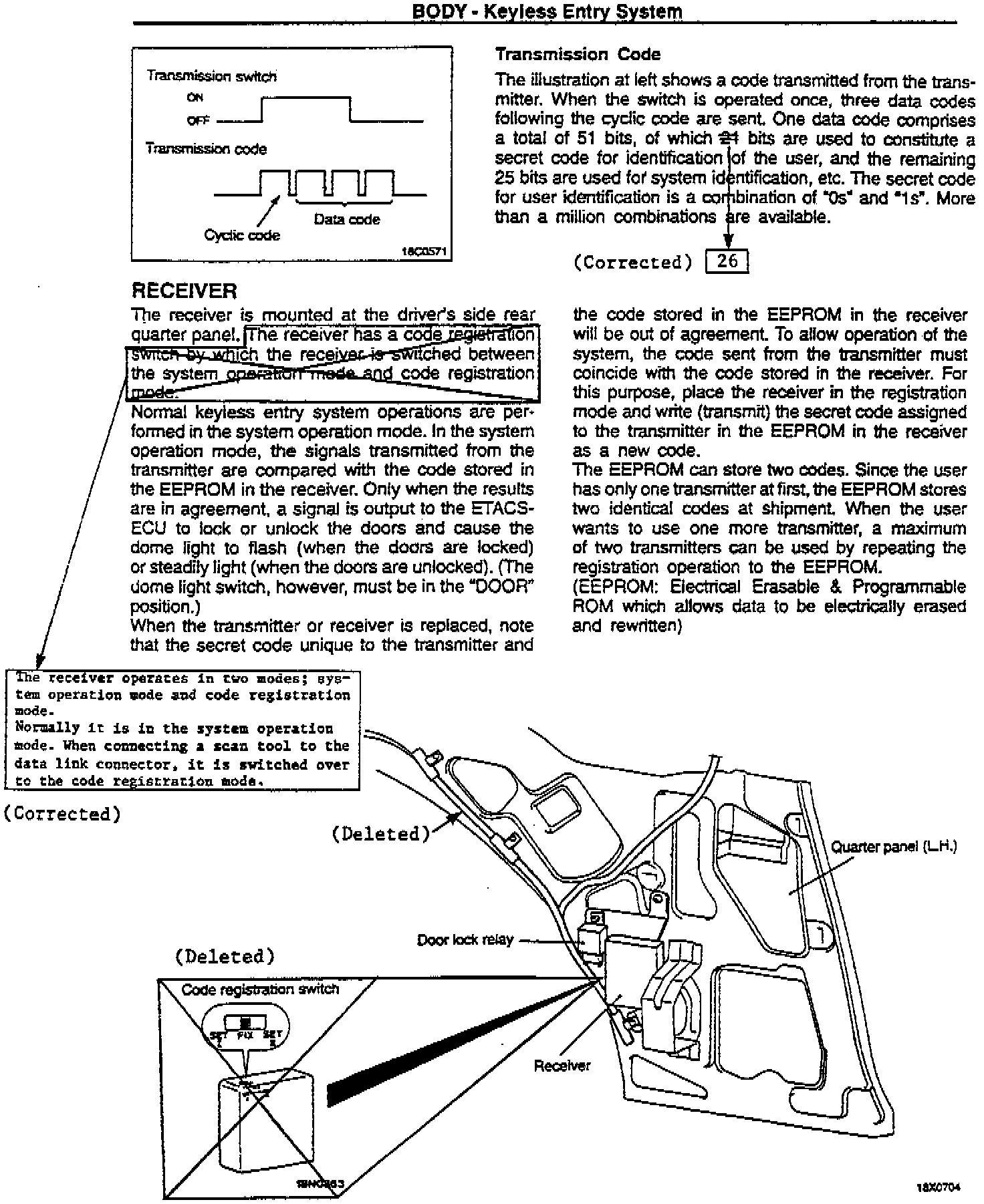

1995 Eclipse Technical Information Manual Page 4-17
Revise Page 4-17 as shown.

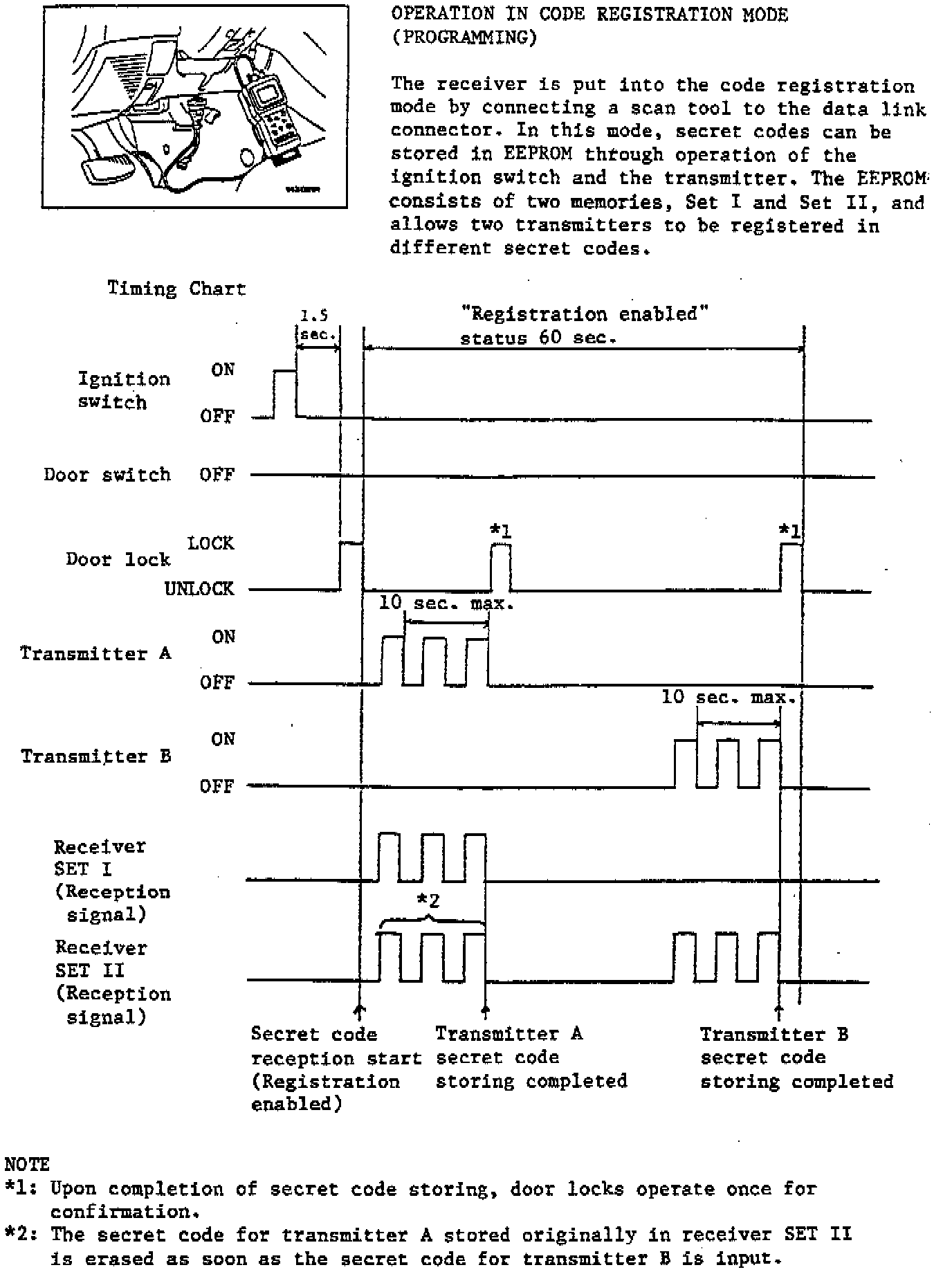

1995 Eclipse Technical Information Manual Page 4-19
Replace the entire page with the following:

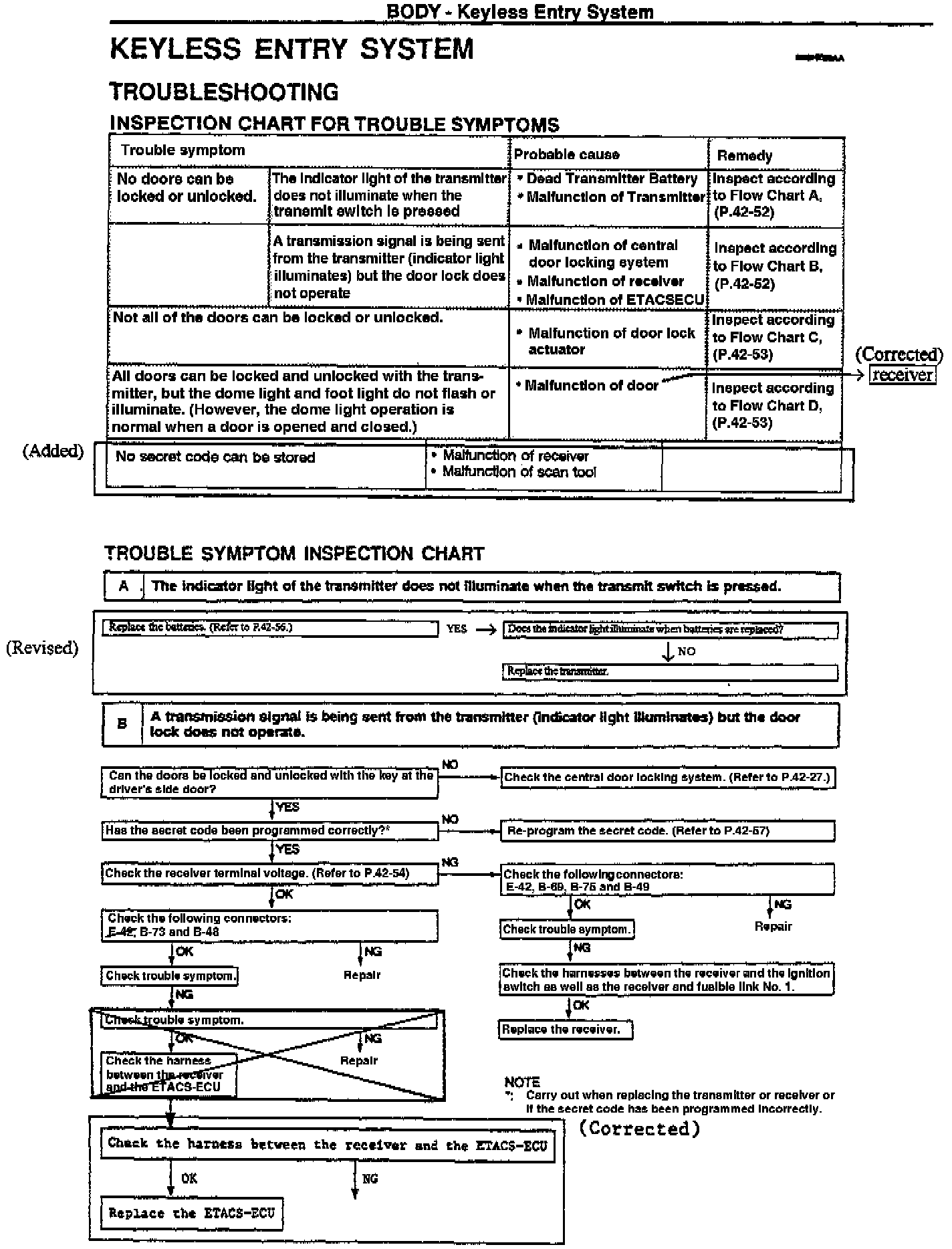

1995 Eclipse Technical Information Manual Page 42.52
Make the corrections and additions to Page 42-52:

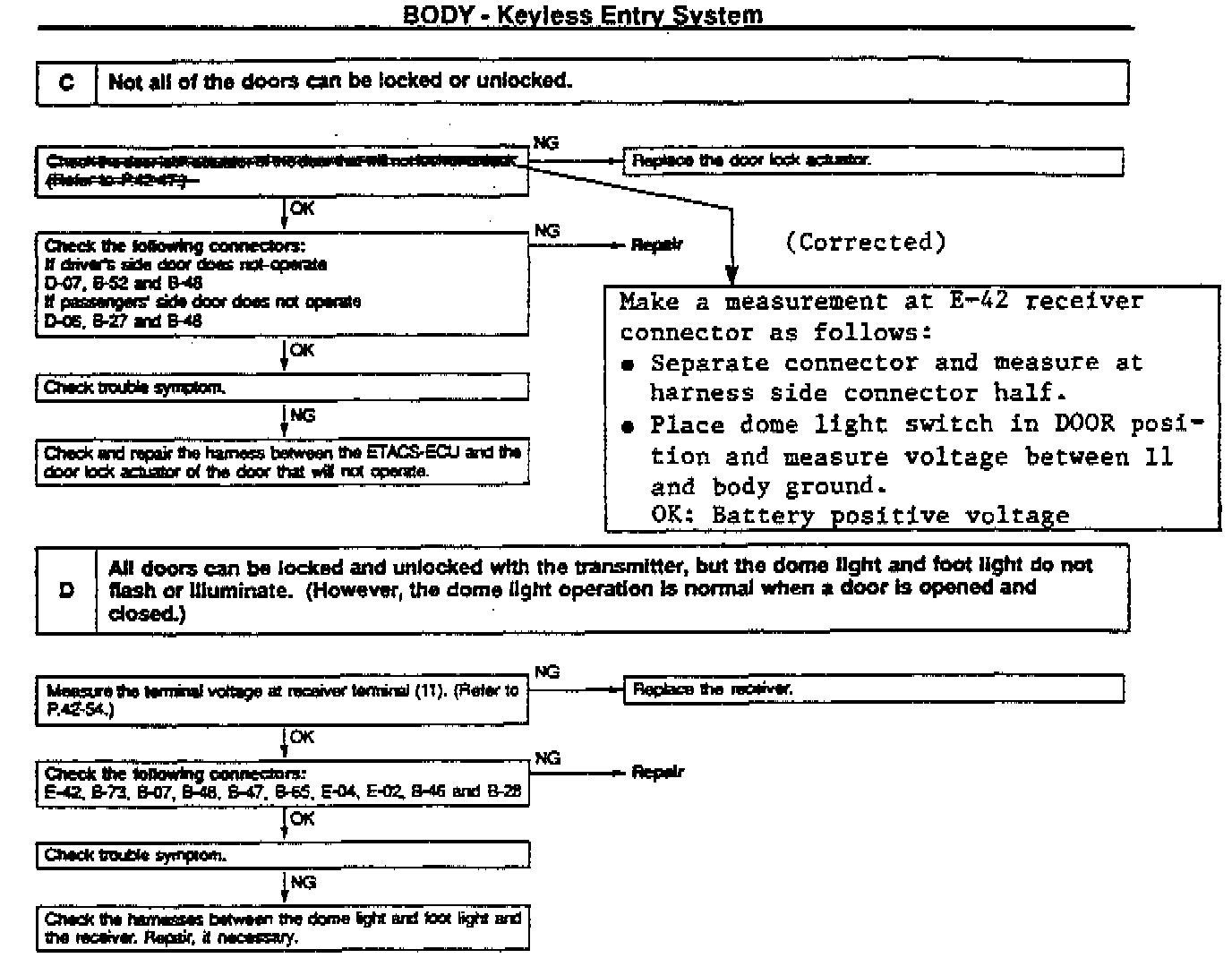

1995 Eclipse Service Manual, Volume 1, Page 42-53
Revise Page 42-53 as shown.

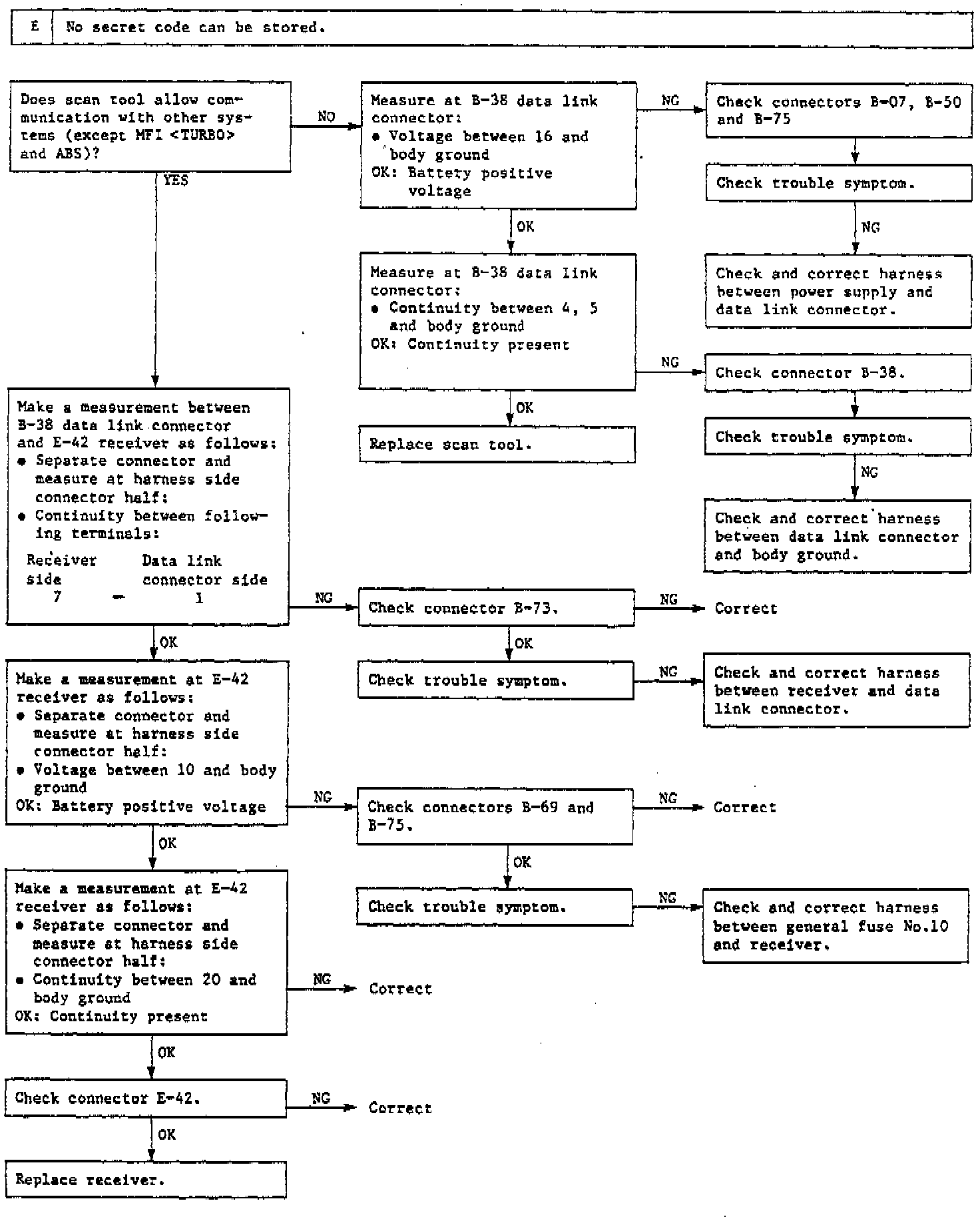

1995 Eclipse Service Manual, Volume 1, Page 42-53
Please add this page adjacent to Page 42-53:

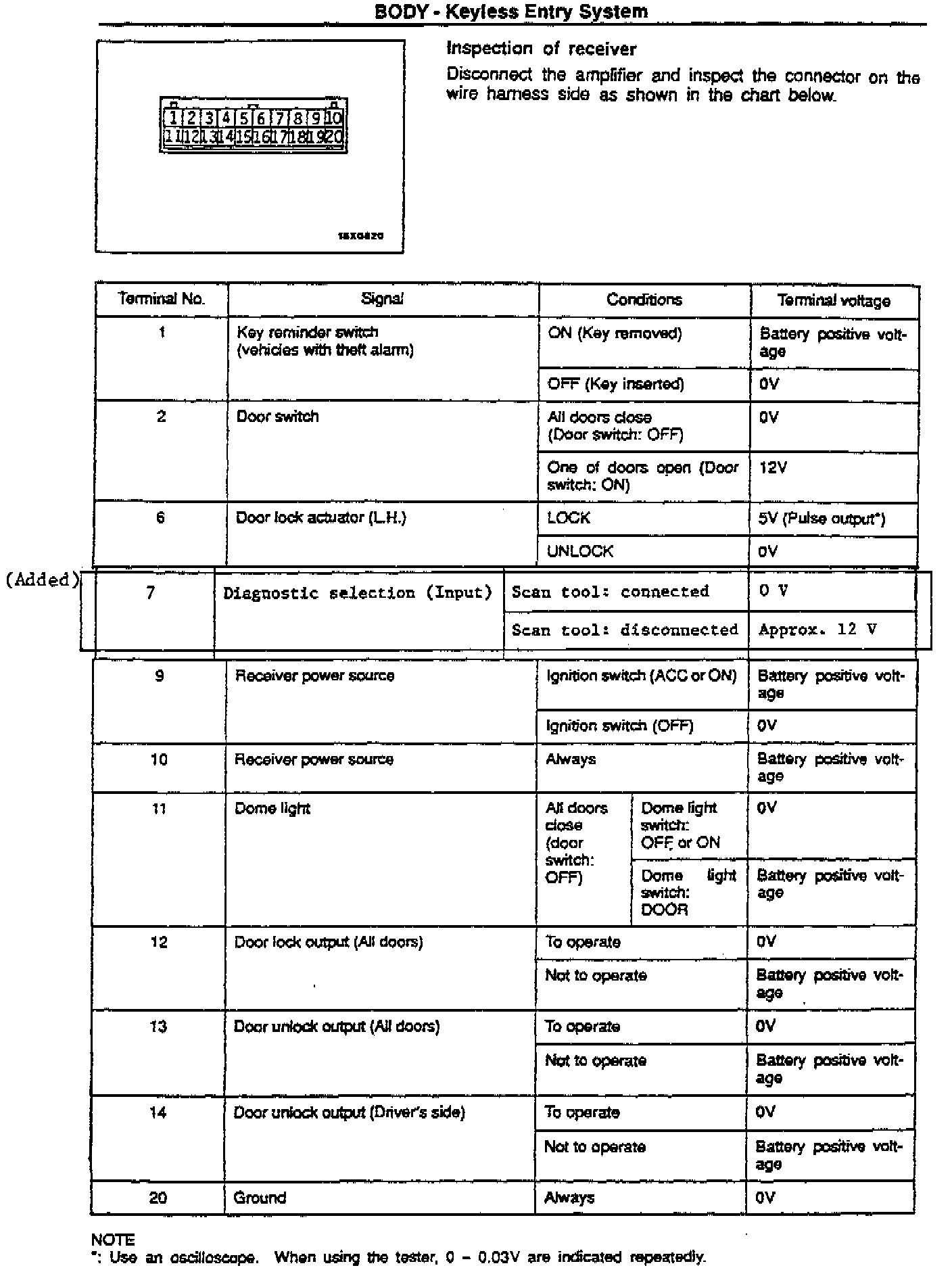

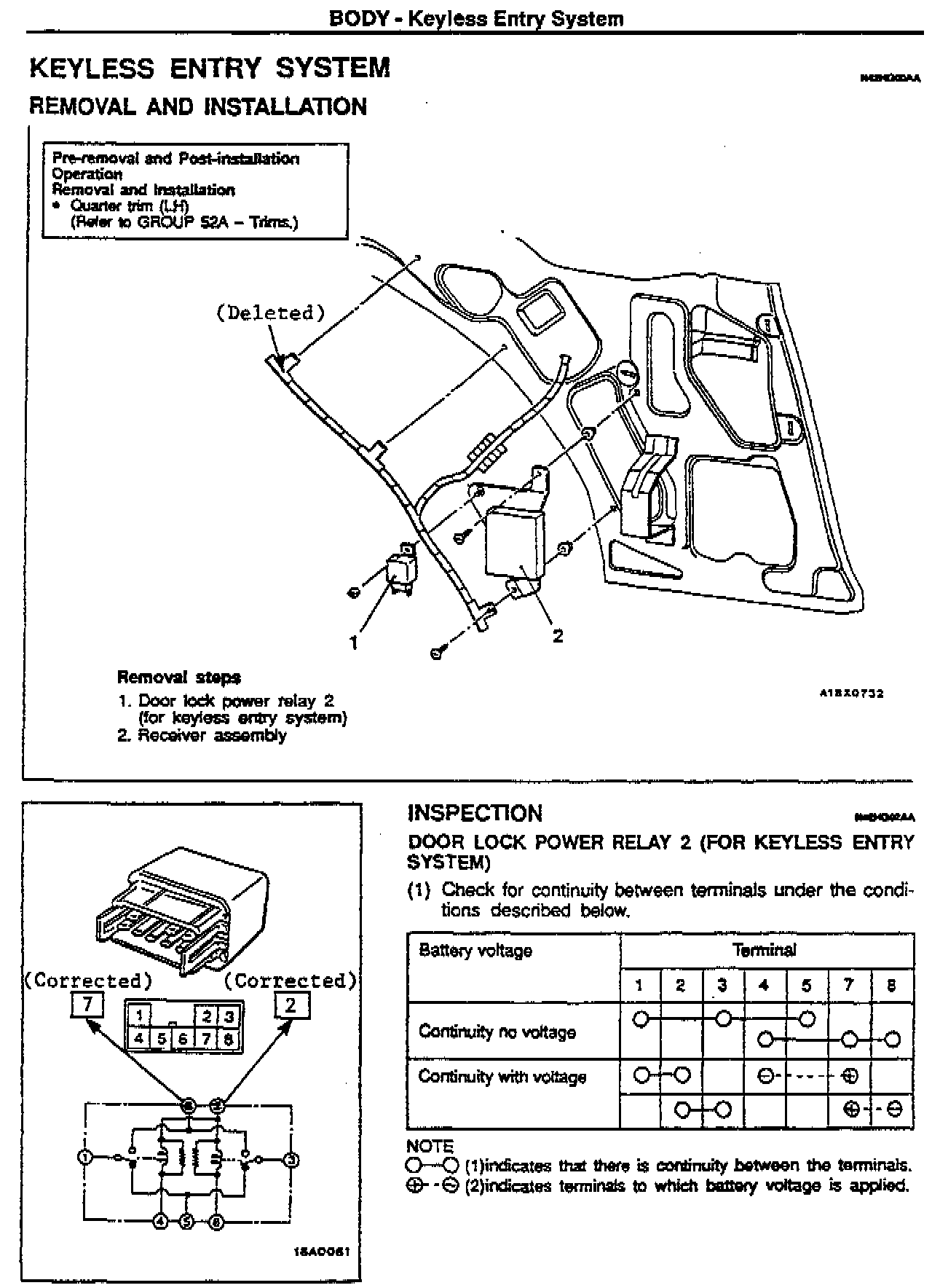

1995 Eclipse Service Manual, Volume 1, Page 42-54
Add the new information to Page 42-54 as shown.
1995 Eclipse Service Manual, Volume 1, Page 42-55
Make deletions and corrections to Page 42-55:

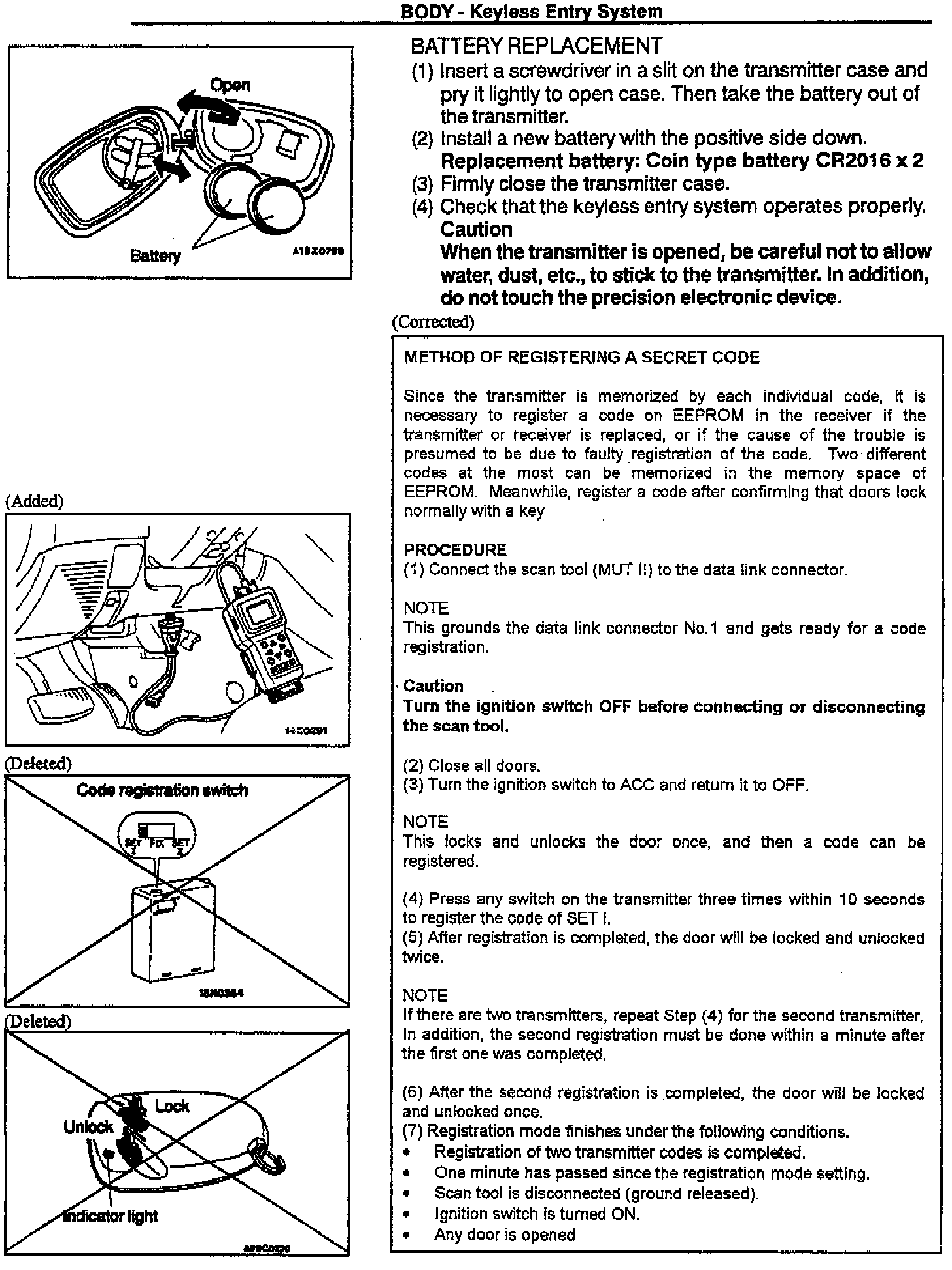

1995 Eclipse Service Manual, Volume 1, Page 42-56
Make the additions, corrections, and deletions to Page 42-56

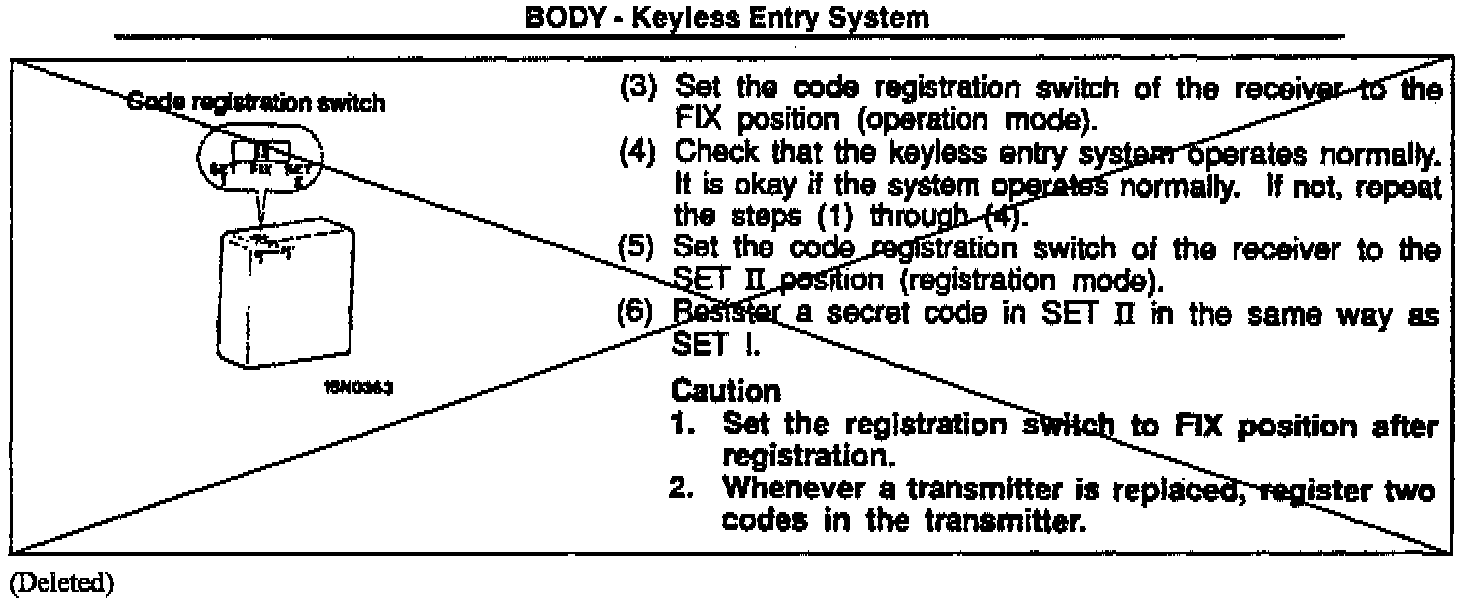

1995 Eclipse Service Manual, Volume 1, Page 42-57
Delete the information from Page 42-57.

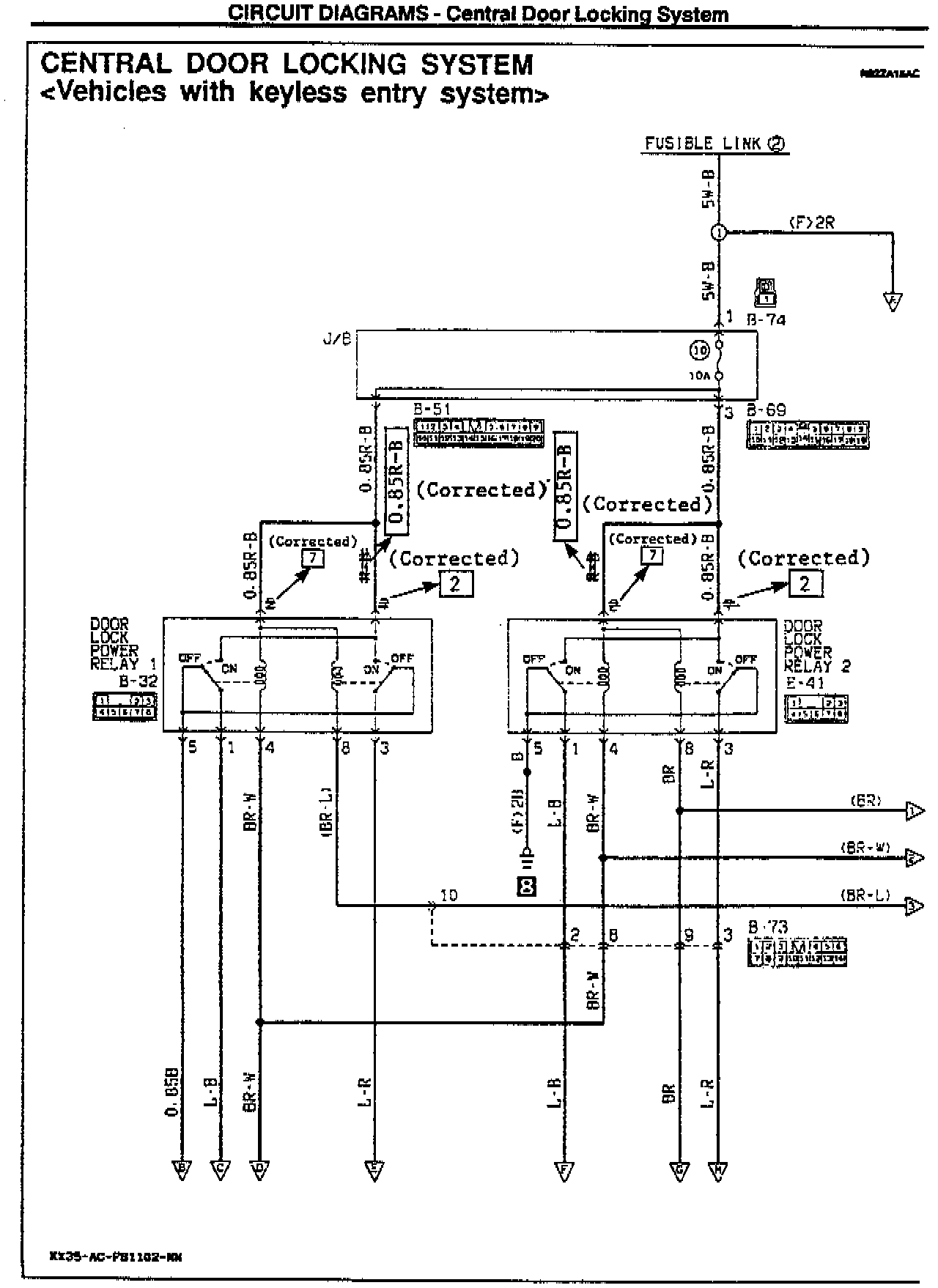

1995 Eclipse Service Manual, Volume 1, Page 144
Revise the circuit diagram as shown.

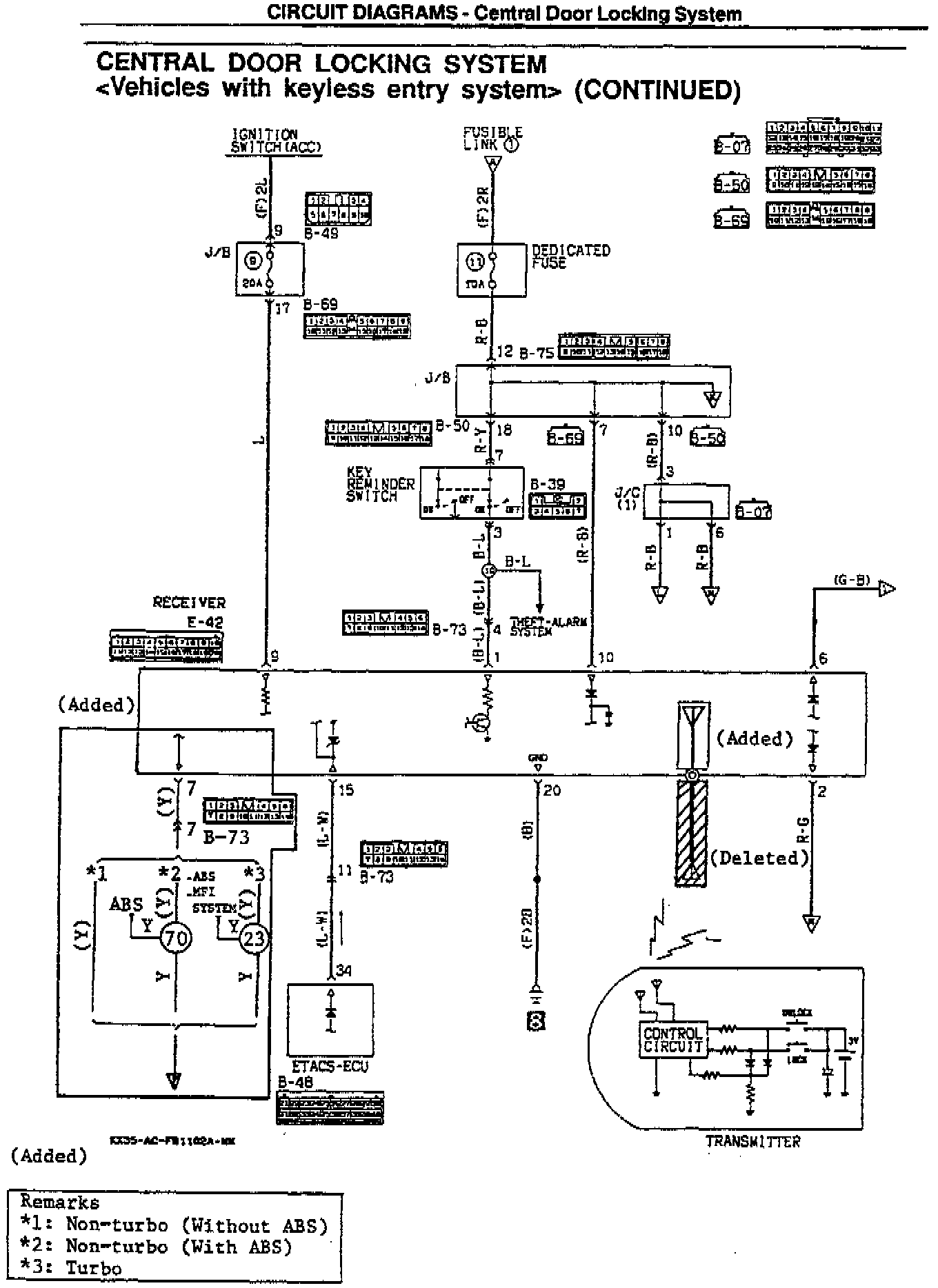

1995 Eclipse Service Manual, Volume 1, Page 146
Add and delete information to the circuit diagram as shown.

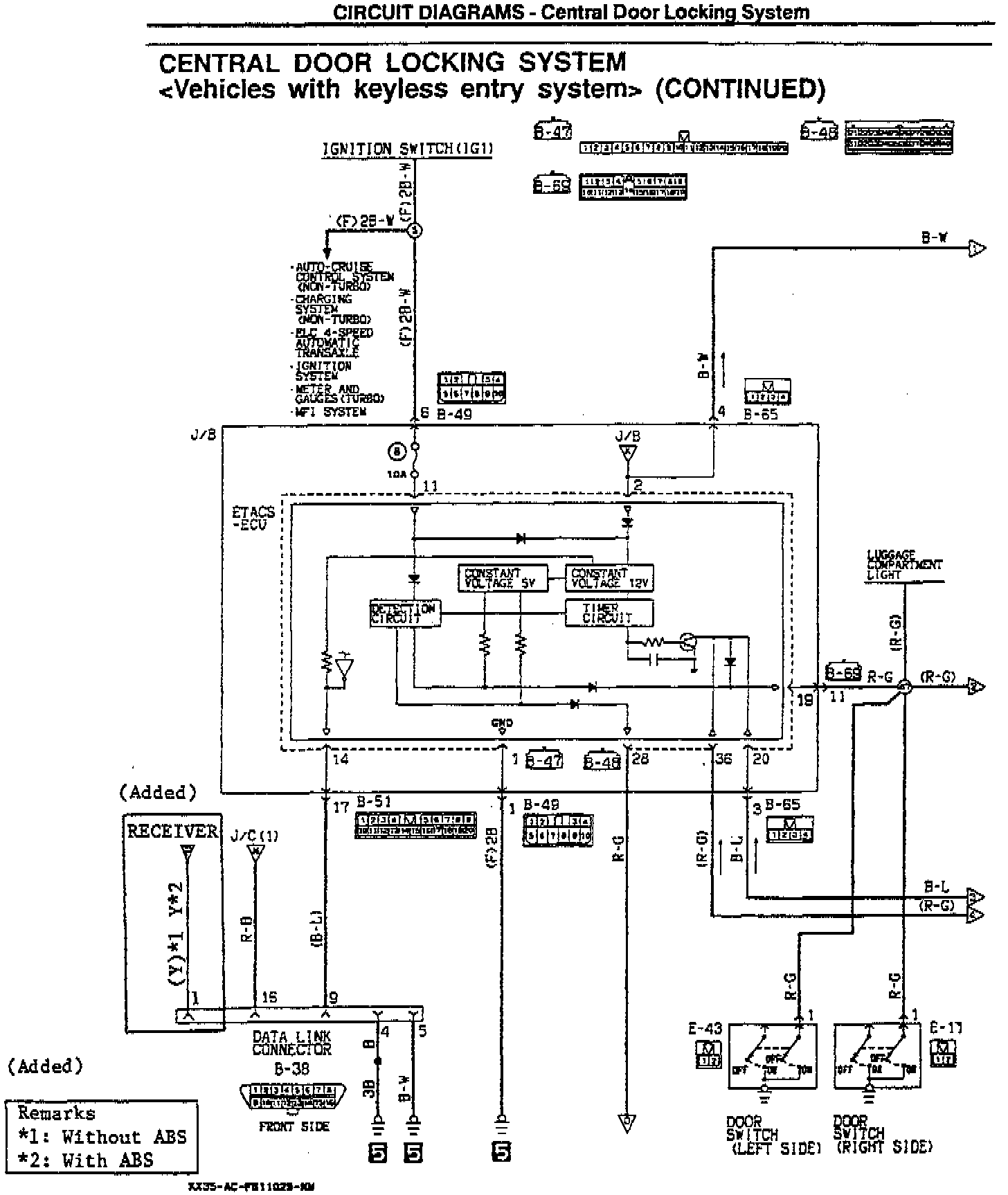

1995 Eclipse Service Manual, Volume 1, Page 148
Add information to the circuit diagram as shown.
