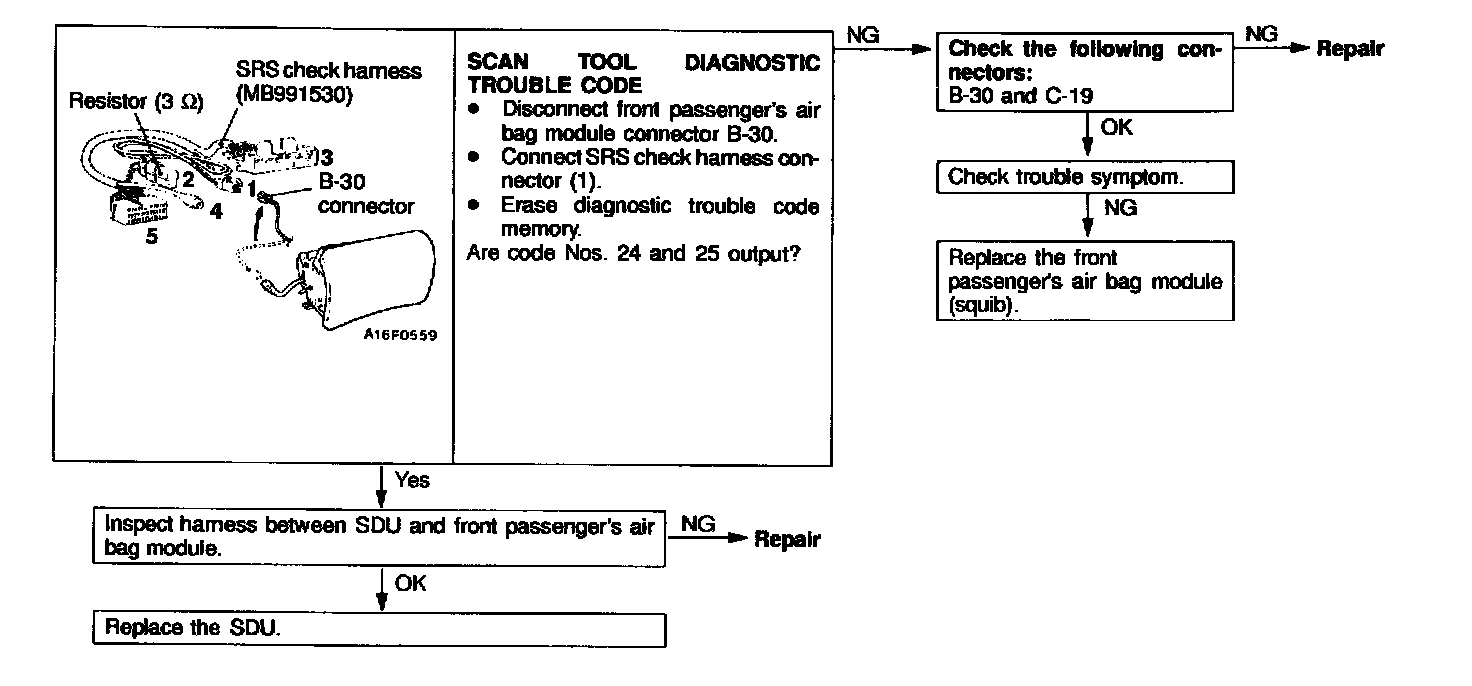

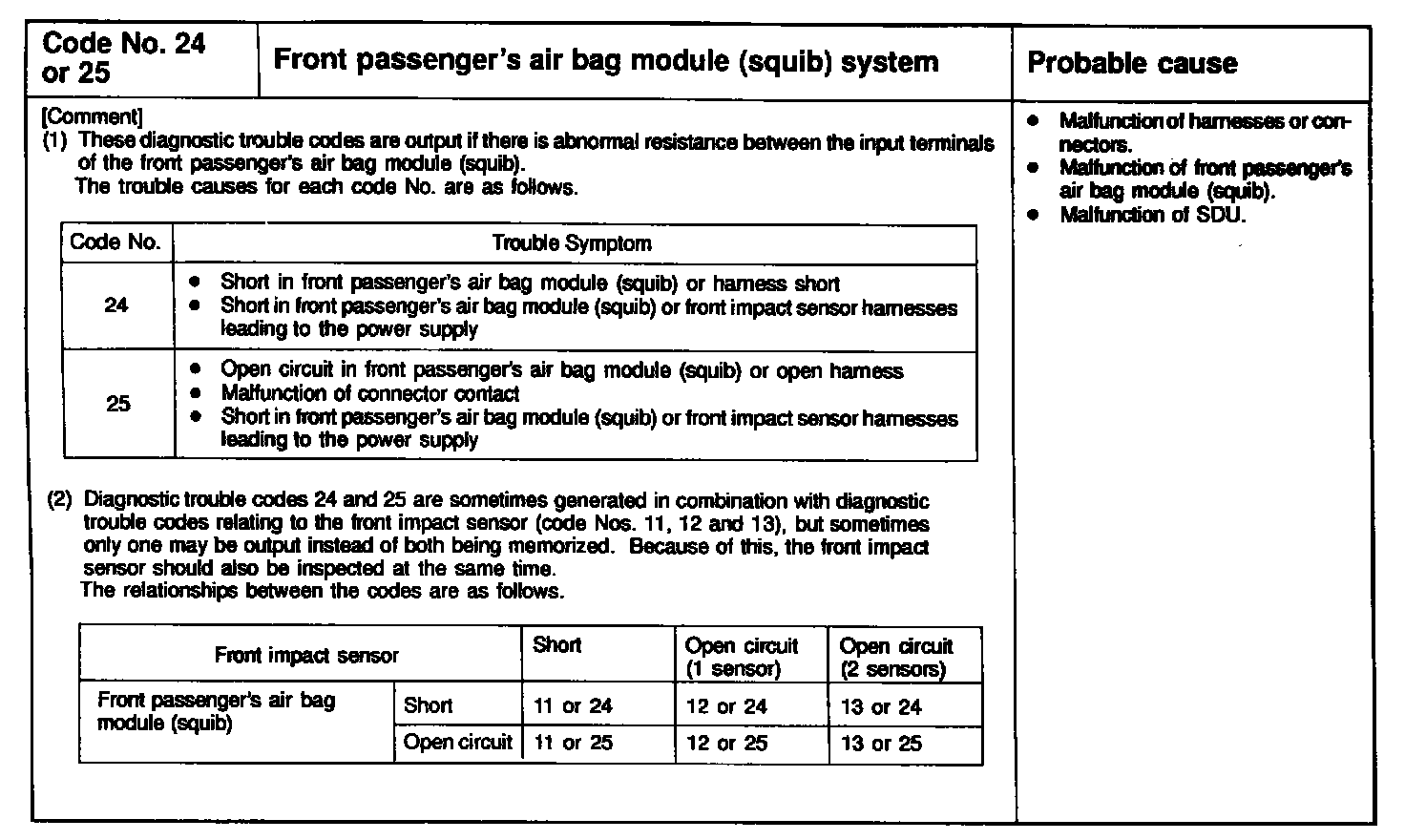

DTC 25

1. Turn the ignition key to the "LOCK" position, disconnect the negative battery cable and tape the terminal.

Caution:
Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

2. Remove the floor console assembly.





3. Place a flat-tipped screwdriver against the lock spring at the lock lever notch and push the spring toward the unit.

Caution:
Do not use excessive force to raise the lock lever (green).
