Home >> Mitsubishi >> 1995 >> 3000GT Convertible V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Specifications >> Mechanical Specifications

Mechanical Specifications

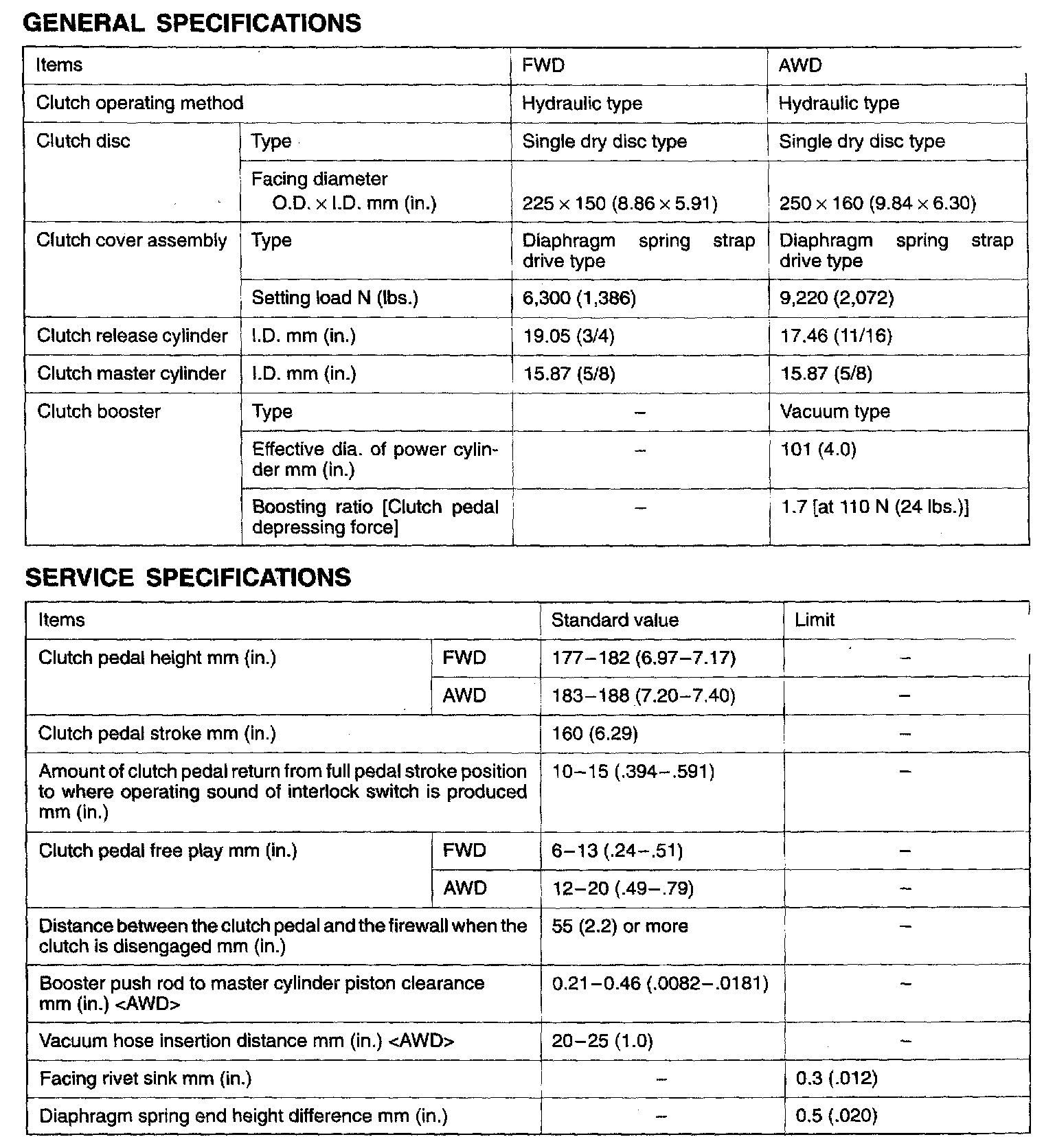

F5M33 5-spd M/T, Clutch Dimensions / Standard Value & Limits:

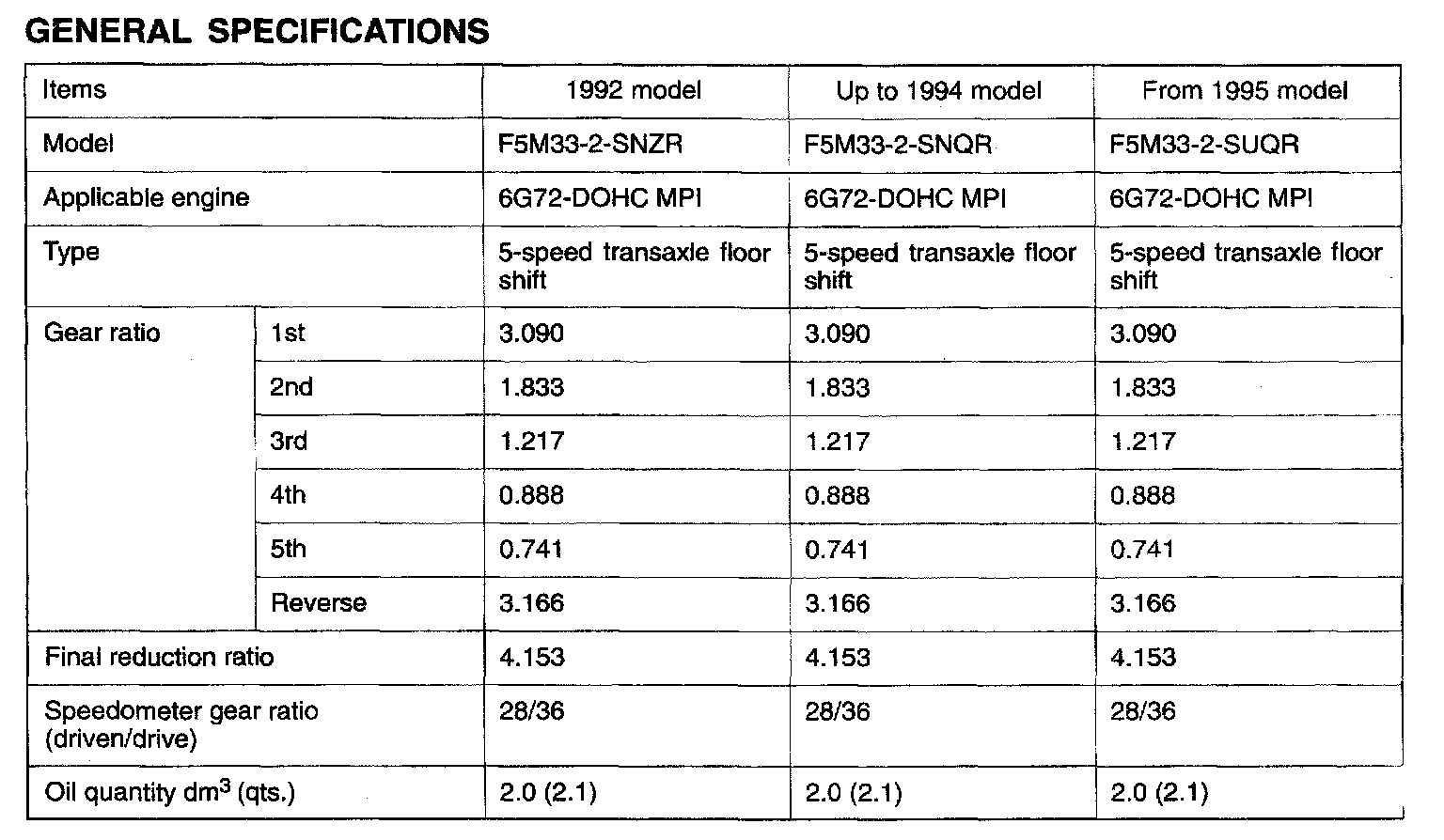

F5M33 5-spd M/T, Gear Ratios:
