Output Shaft: Service and Repair

OUTPUT SHAFT - FWD

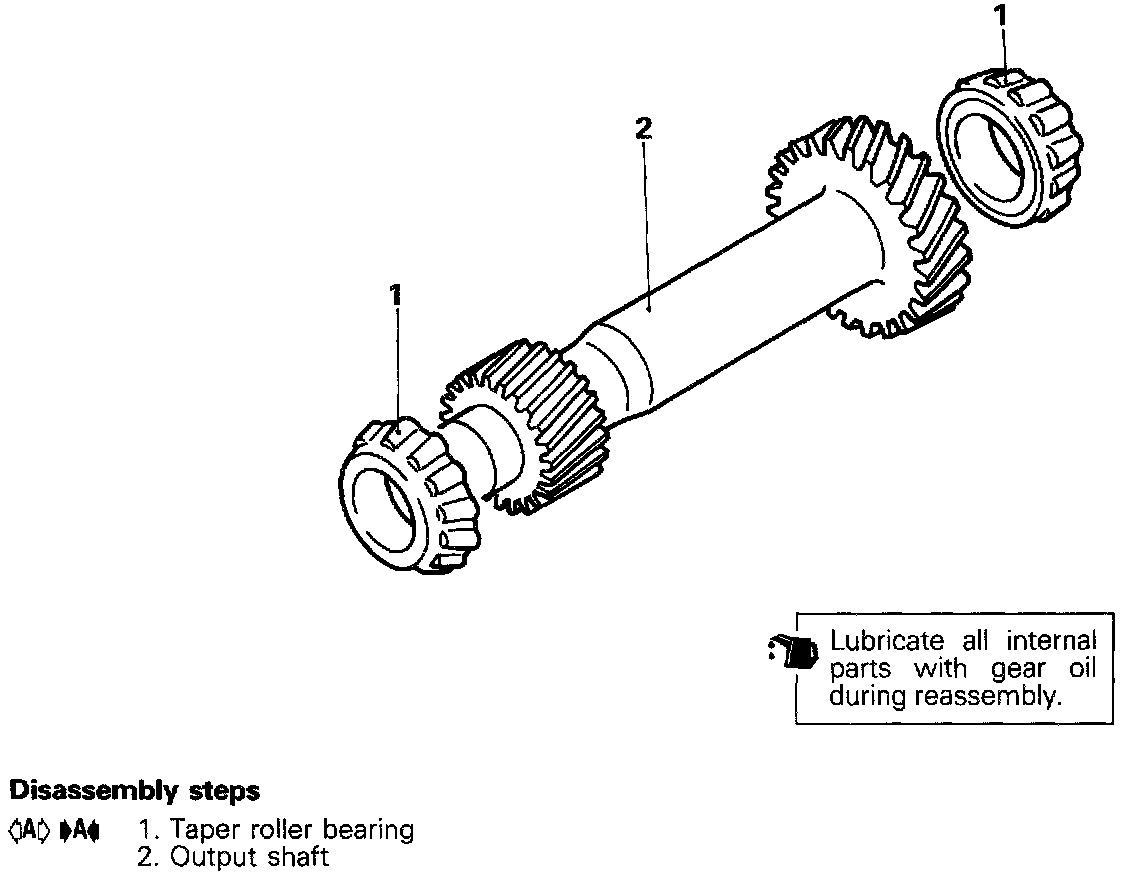

DISASSEMBLY AND REASSEMBLY





DISASSEMBLY SERVICE POINTS

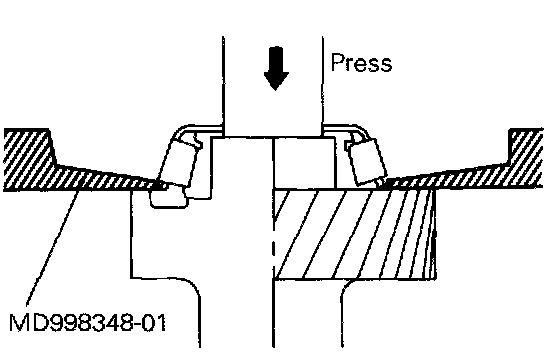

A. TAPER ROLLER BEARINGS REMOVAL





CAUTION:
- Do not reuse the bearings removed from the shaft.
- Replace the inner and outer races of the taper roller bearing as a set.

REASSEMBLY SERVICE POINTS

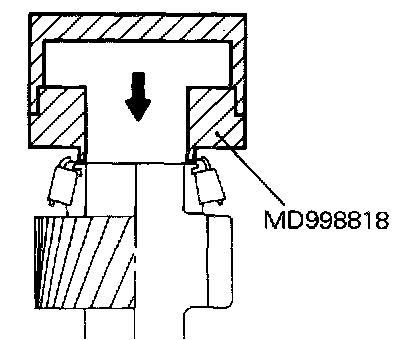

A. TAPER ROLLER BEARINGS INSTALLATION





CAUTION: When installing the bearing, push the inner race only.
