Rear Suspension

1. Remove shock absorber assembly as outlined under Shock Absorber.

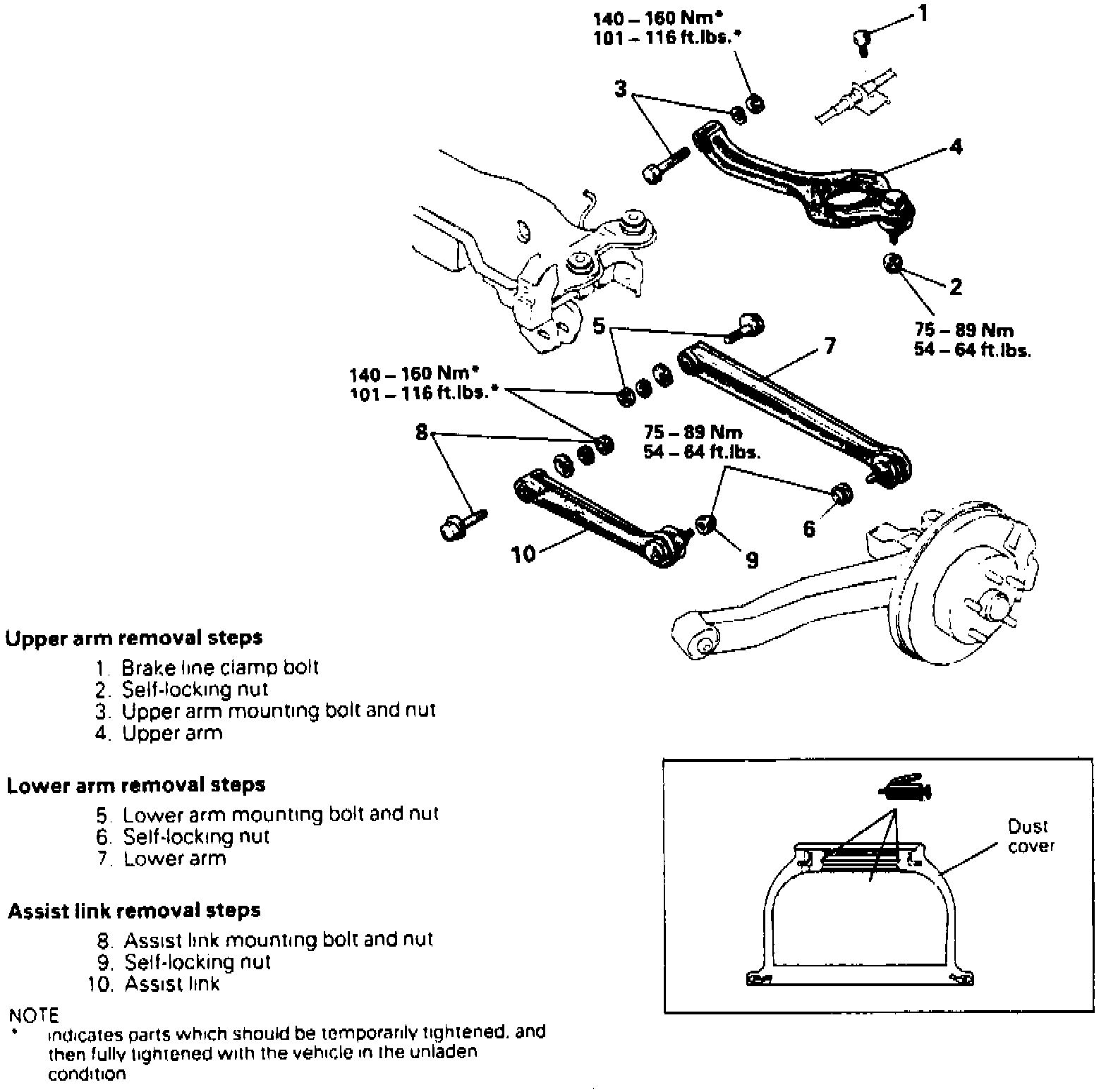

Fig. 27 Upper & Lower Control Arm & Assist Link Replacement:

2. Remove upper and lower control arms and assist link in numbered sequence as shown, Fig. 27, noting the following:
a. Using ball joint remover tool No. MB991113-01, or equivalent, remove ball joints from the knuckle. Loosen but do not remove ball joint nut.
