Connector Locations

CONFIGURATION DIAGRAMS

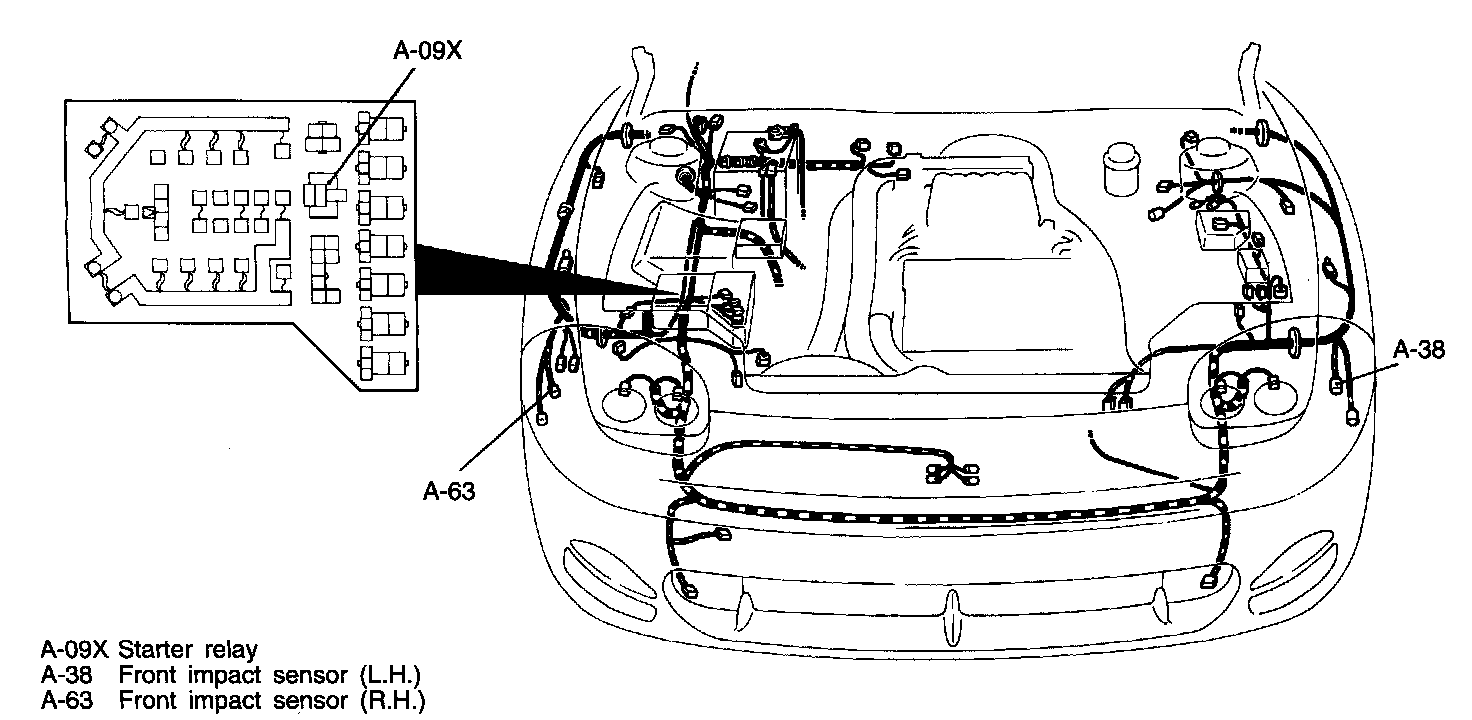

Engine compartment

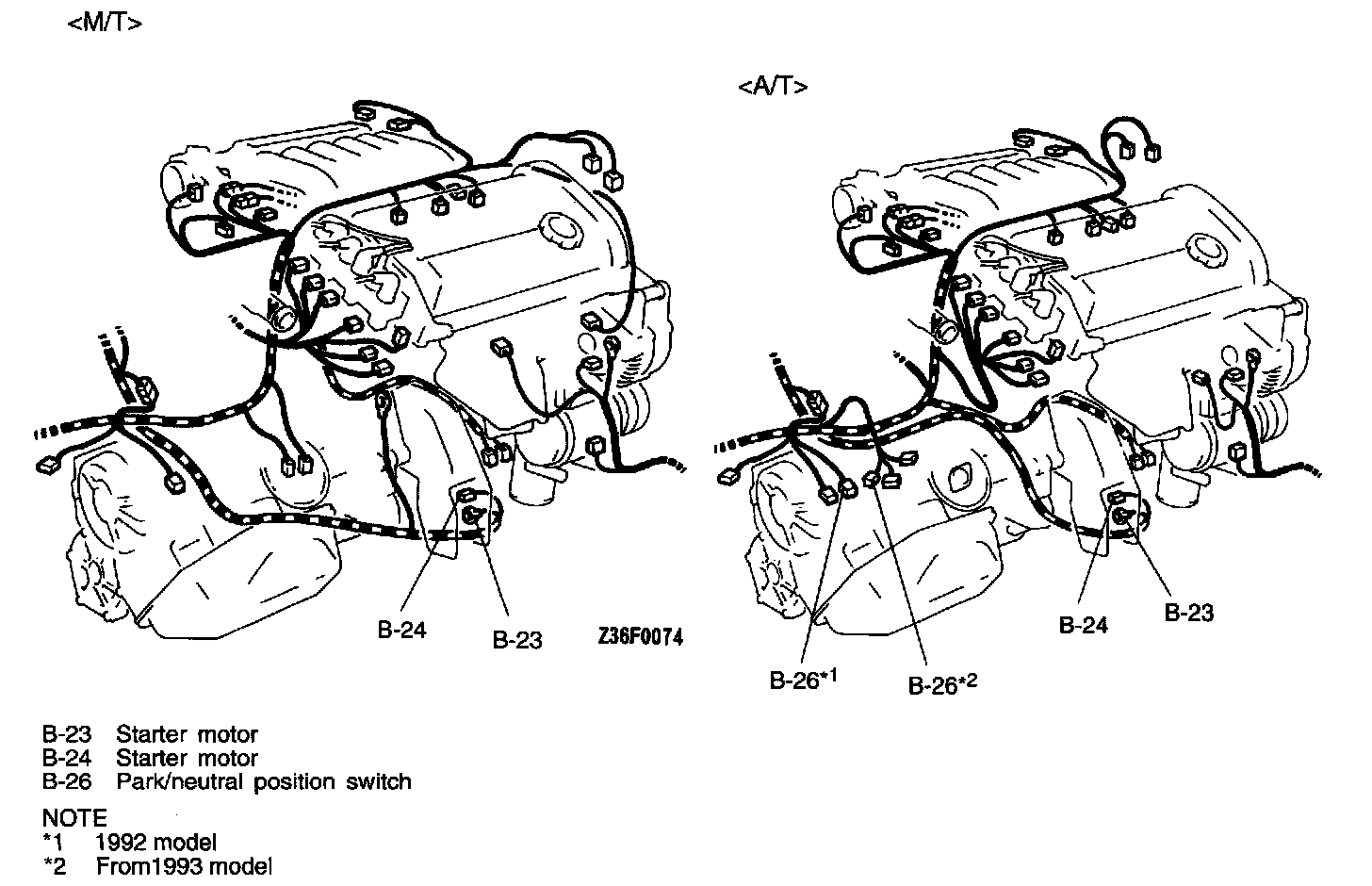

Engine and transaxle (Front view)

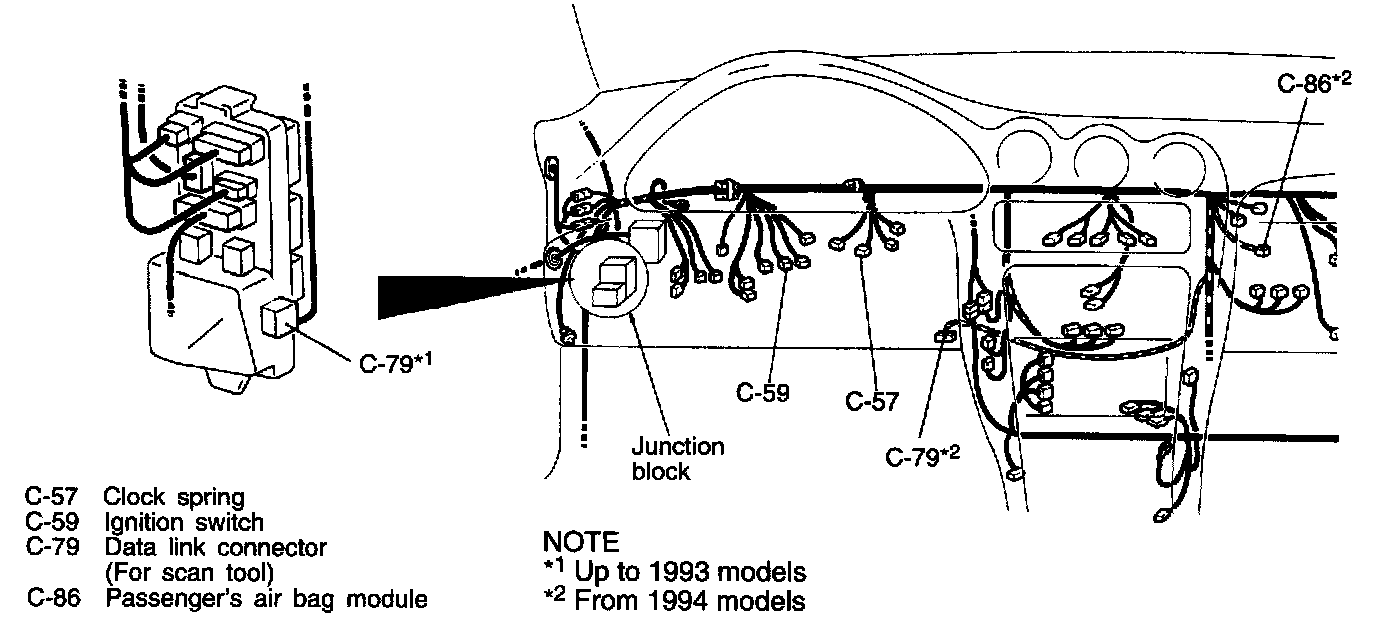

Dash panel

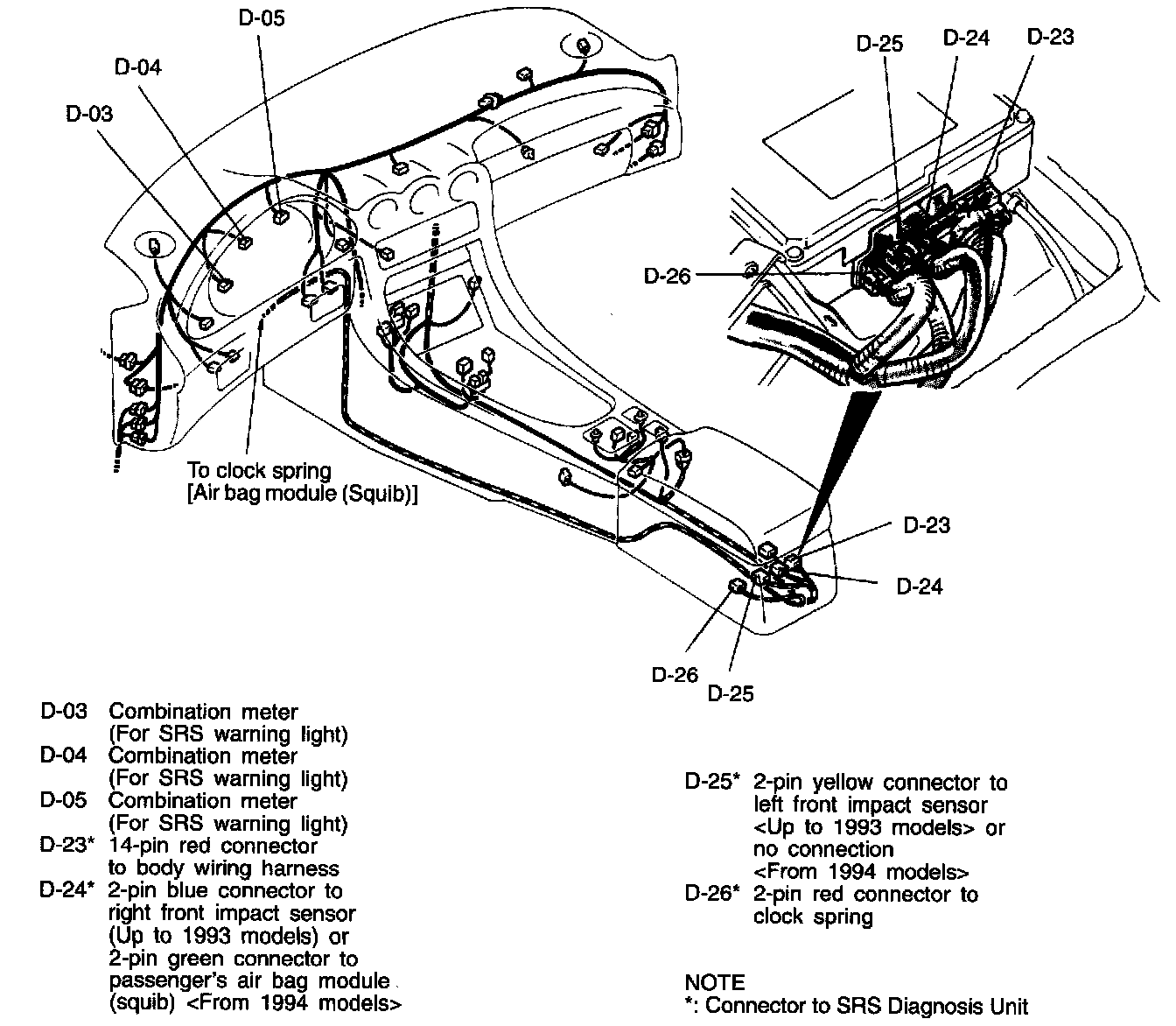

Instrument panel and floor console
