Windshield Wiper and Washer

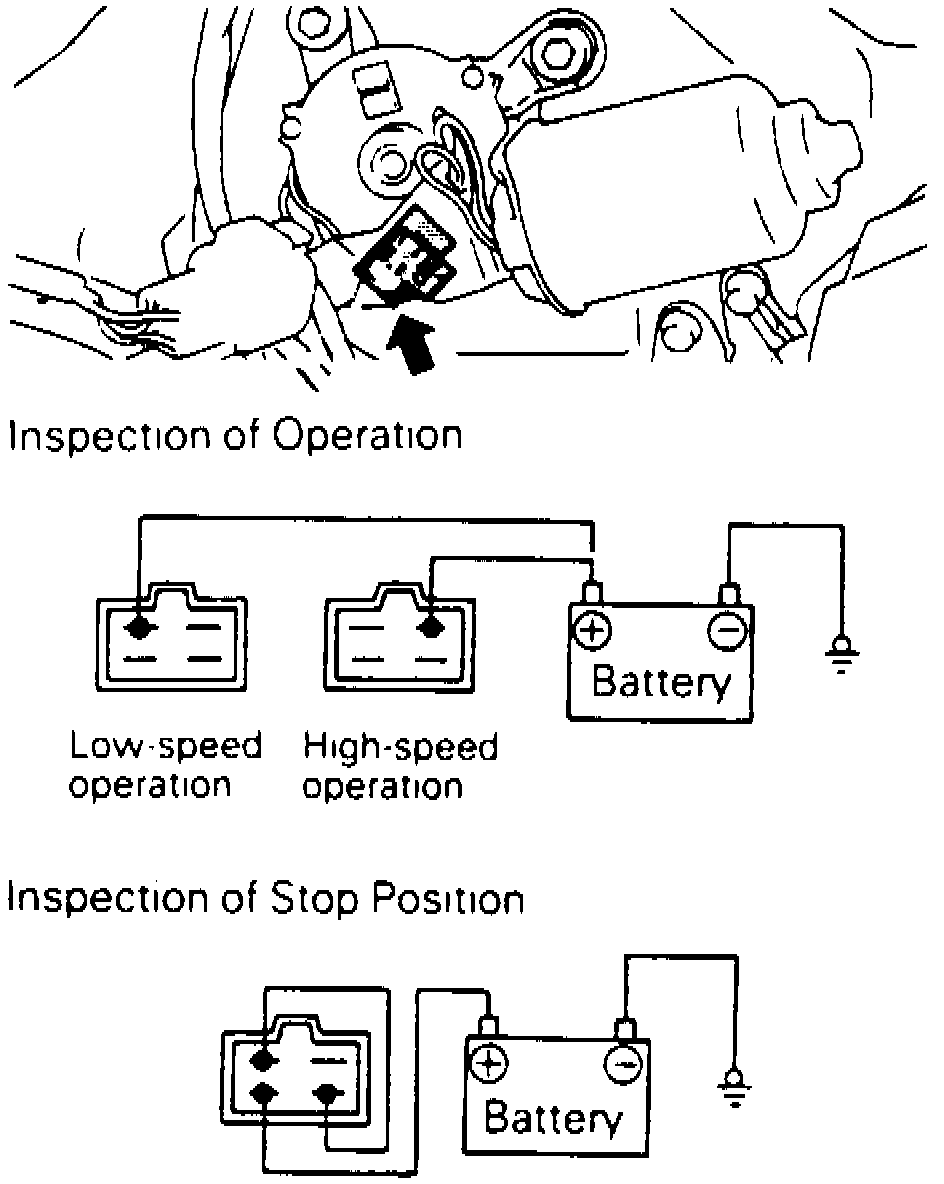

Fig. 50 Front Wiper Motor Connector Identification:

1. To ensure proper low and high speed operation of wiper motor, connect battery as shown in Fig. 50.
2. To check motor automatic stop position, run motor at low speed, then disconnect battery and connect jumper wire and battery as shown in Fig. 50.
