Windshield Wiper Motor Replace

1. Disconnect battery ground cable.
2. Remove wiper arm attaching bolt, then remove wiper arm.

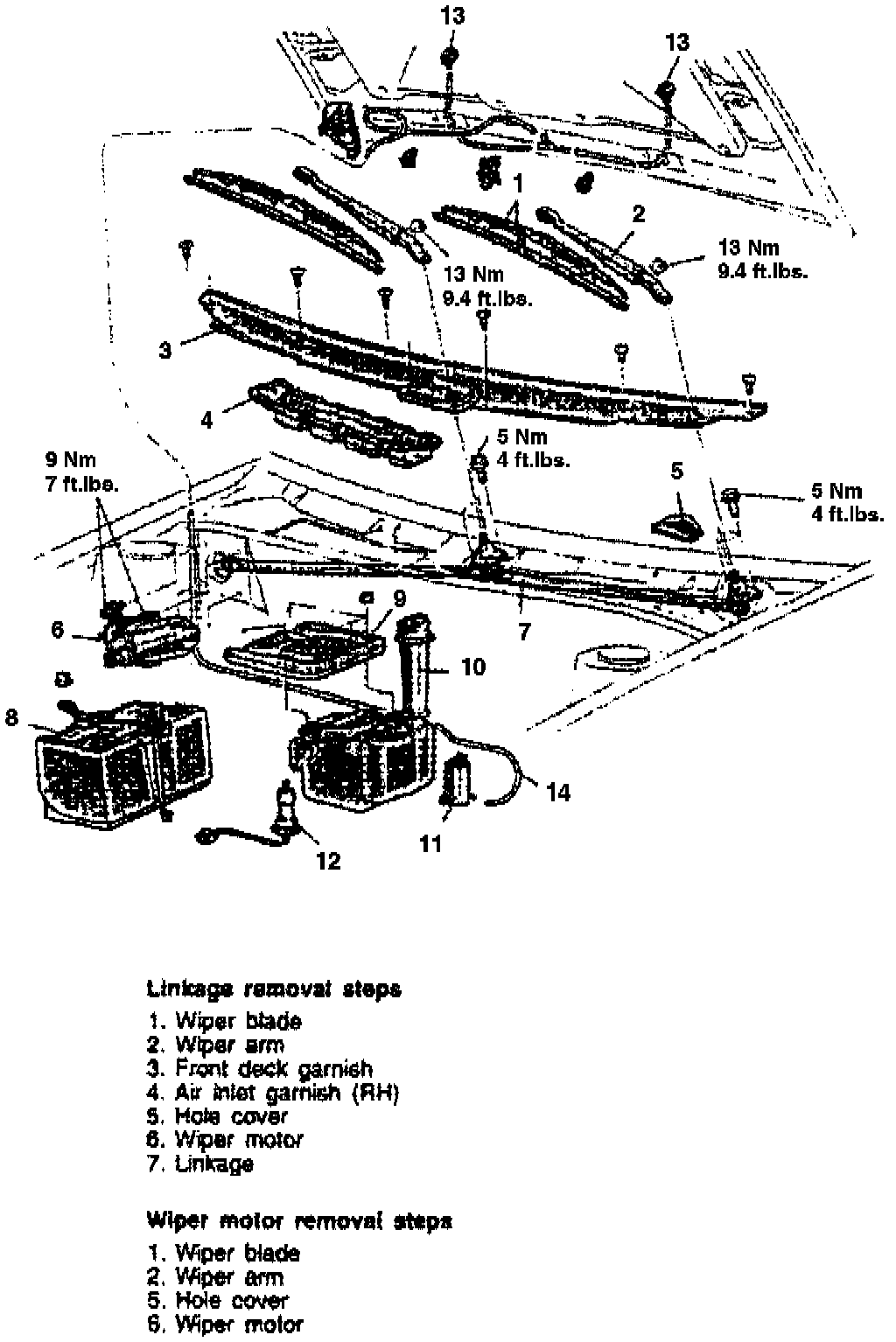

Fig. 25 Front Wiper Motor Replacement:

3. Unsnap hole cover assembly, Fig. 25.
4. Disconnect wiper motor electrical connector.
5. Remove wiper motor attaching bolts, then remove wiper motor.
6. Reverse procedure to install. Torque wiper motor attaching bolts to 7 ft. lbs. Torque wiper arm attaching nuts to 9.4 ft. lbs.
