Rear Window Wiper Motor Replace

1. Disconnect battery ground cable.

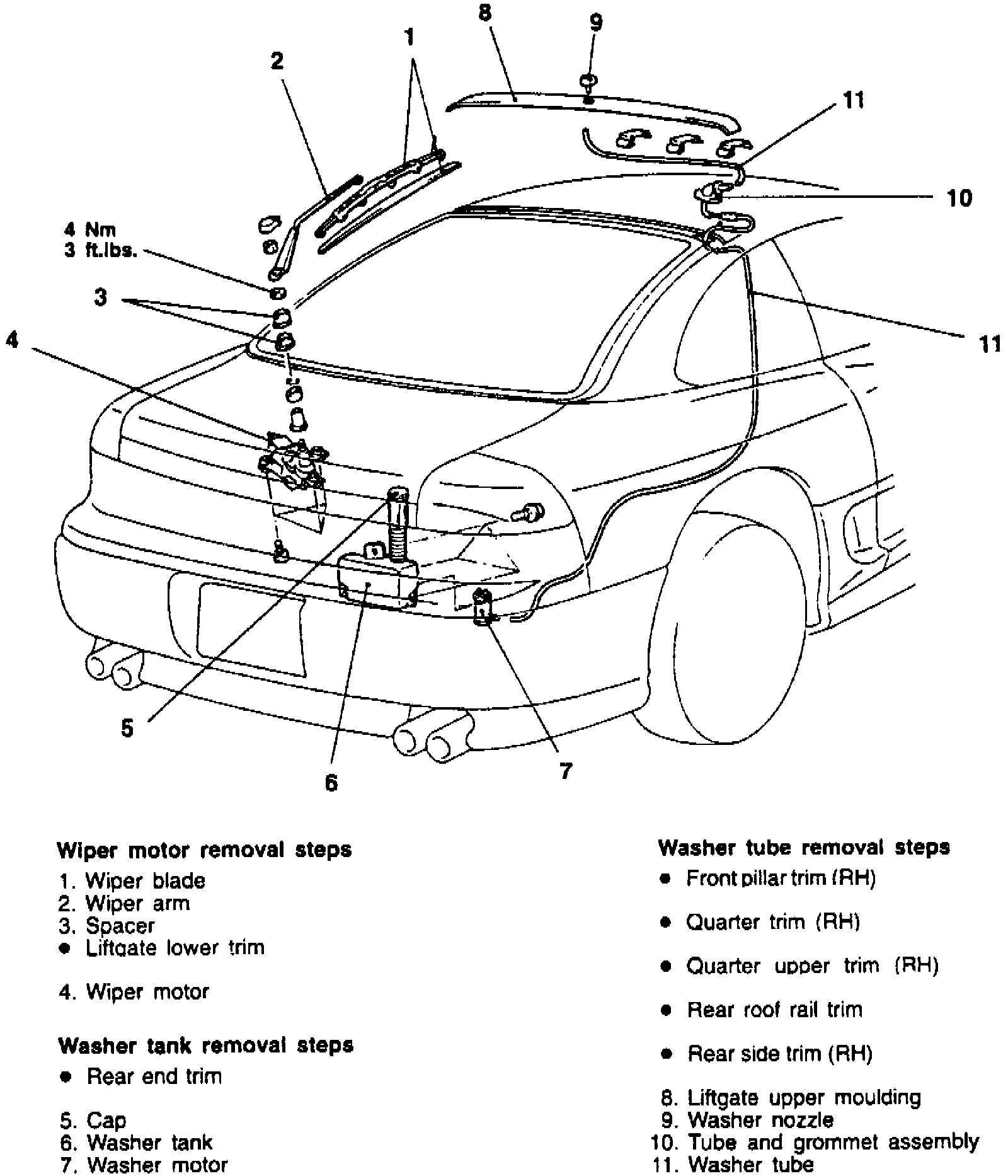

Fig. 26 Rear Wiper Motor Replacement:

2. Remove wiper arm and wiper blade, Fig. 26.
3. Remove wiper arm spacer, then the hatch trim.
4. Remove rear wiper motor bracket mounting nuts, then remove rear wiper motor assembly from hatch.
5. Reverse procedure to install.
