Removal and Replacement

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

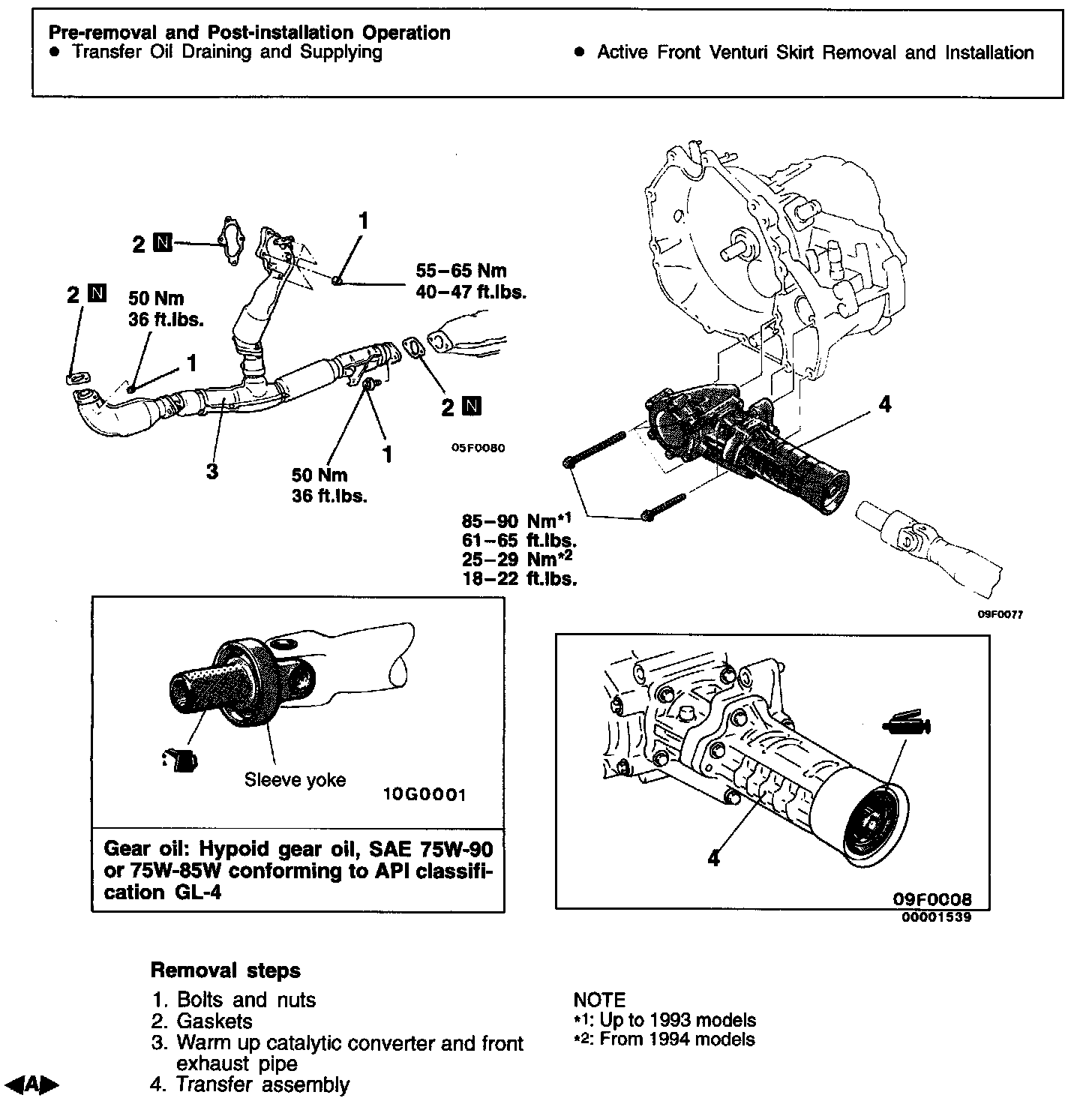

(A) TRANSFER ASSEMBLY REMOVAL





CAUTION:

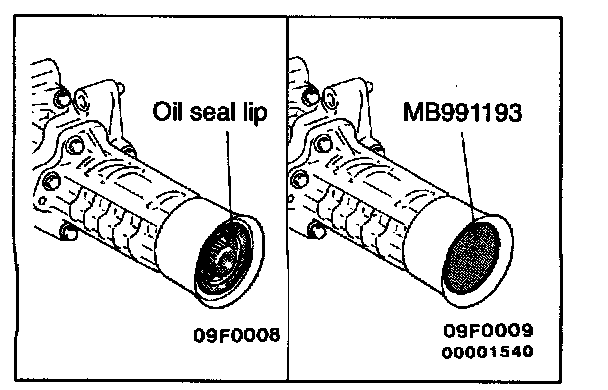

1. Be cautious to avoid damaging the transfer oil seal lip.
2. Cover the transfer opening with the special tool to prevent transaxle oil discharge and the entry of foreign objects.

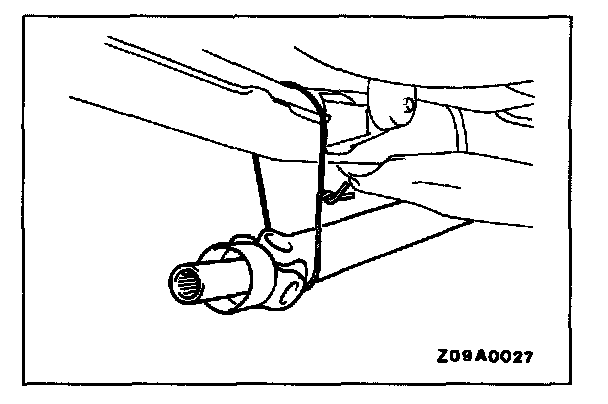

3. The propeller shaft should be suspended so that it is not sharply bent.
