Transmission Mount: Service and Repair

1. Using suitable transmission jack, raise and support transaxle to remove weight off mounts.
2. Remove air cleaner assembly.

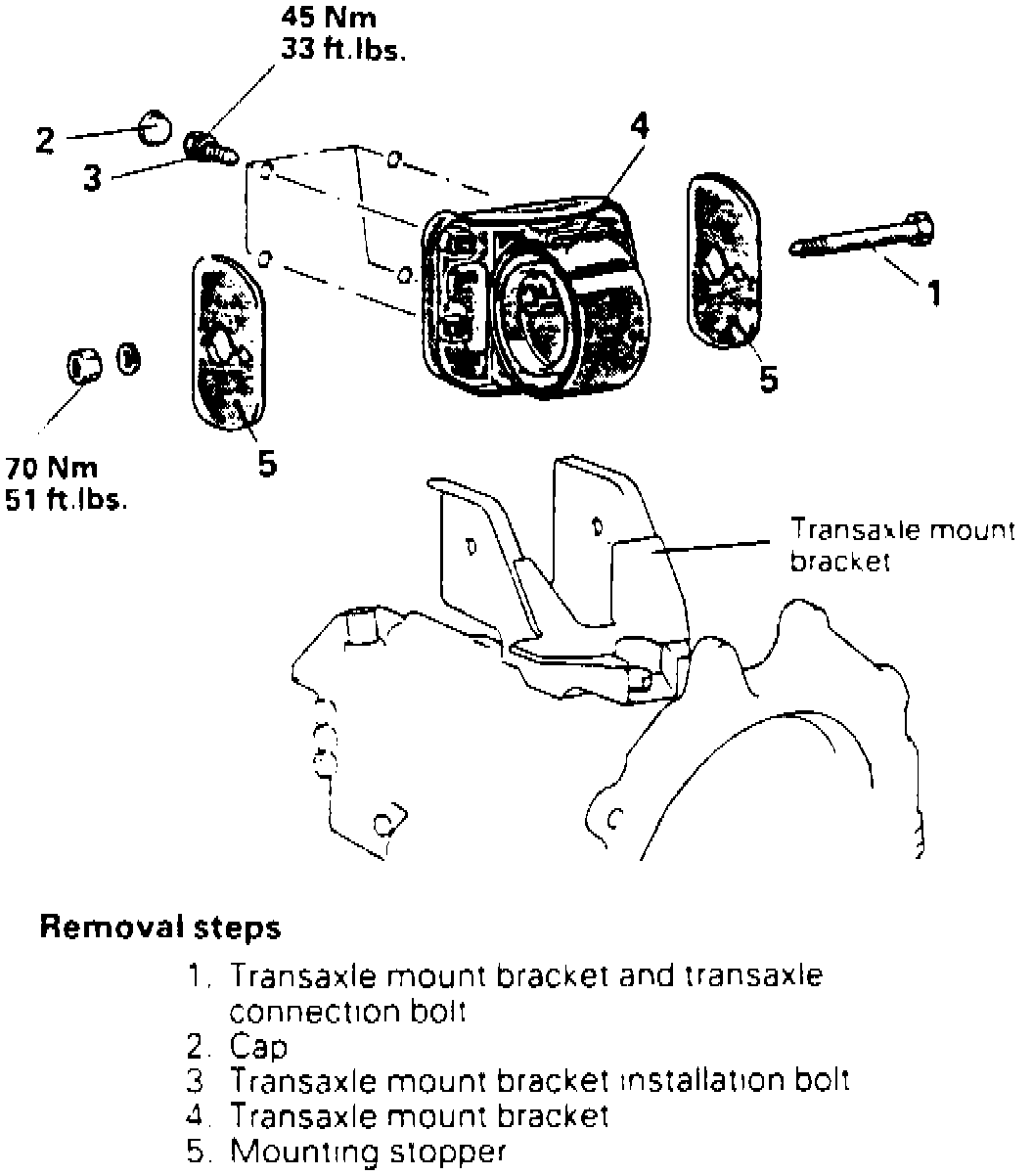

Fig. 4 Transaxle Mount Replacement:

3. Replace transaxle mounts in numbered sequence as shown, Fig. 4.

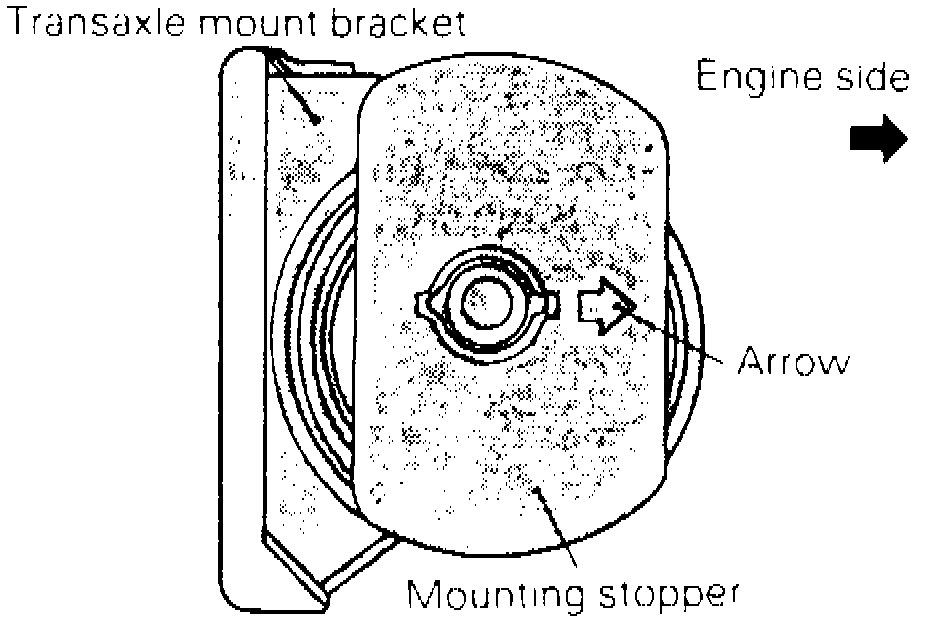

Fig. 5 Transaxle Mounting Stopper Installation:

4. Ensure arrow mark on mounting stopper is pointing toward engine when attaching transaxle mounting bracket, Fig. 5.
