M/T Shift Lever - Operational Inspection Revision

NO.: TSB-96-22-005

DATE: November, 1996

MODEL: See Below

SUBJECT:
ADDITIONAL MANUAL TRANSAXLE
SHIFT LEVER OPERATIONAL INSPECTION
- SERVICE MANUAL REVISION

TSB Revision TSB-96-22-O5

PURPOSE

This bulletin contains additional operational procedures for inspecting the manual transmission shift lever mechanism after reassembly. This information should be added to the indicated section of the affected service manuals.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

1992-97 3000GT
1995-96 3000GT Spyder
1995-97 Eclipse
1996-97 Eclipse Spyder
1992-95 Expo/Expo LRV
1994-97 Galant
1993-96 Mirage

AFFECTED MANUALS

1992-96 3000GT Service Manual, Volume 1, Page 22-8
1997 3000GT Service Manual, Volume 1, Page 22A-12
1995 Eclipse Service Manual, Volume 1, Pages 22-9 and 22-24
1996 Eclipse Service Manual, Volume 1, Pages 22A-10 and 22A-26
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 22A-11 and 22A-27
1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 22-8
1994-95 Galant Service Manual, Volume 1, Page 22-8
1996 Galant Service Manual, Volume 1, Page 22A-8
1997 Galant Service Manual, Volume 1, Page 22A-8
1993-96 Mirage Service Manual, Volume 1, Page 22-10





SERVICE MANUAL REVISIONS

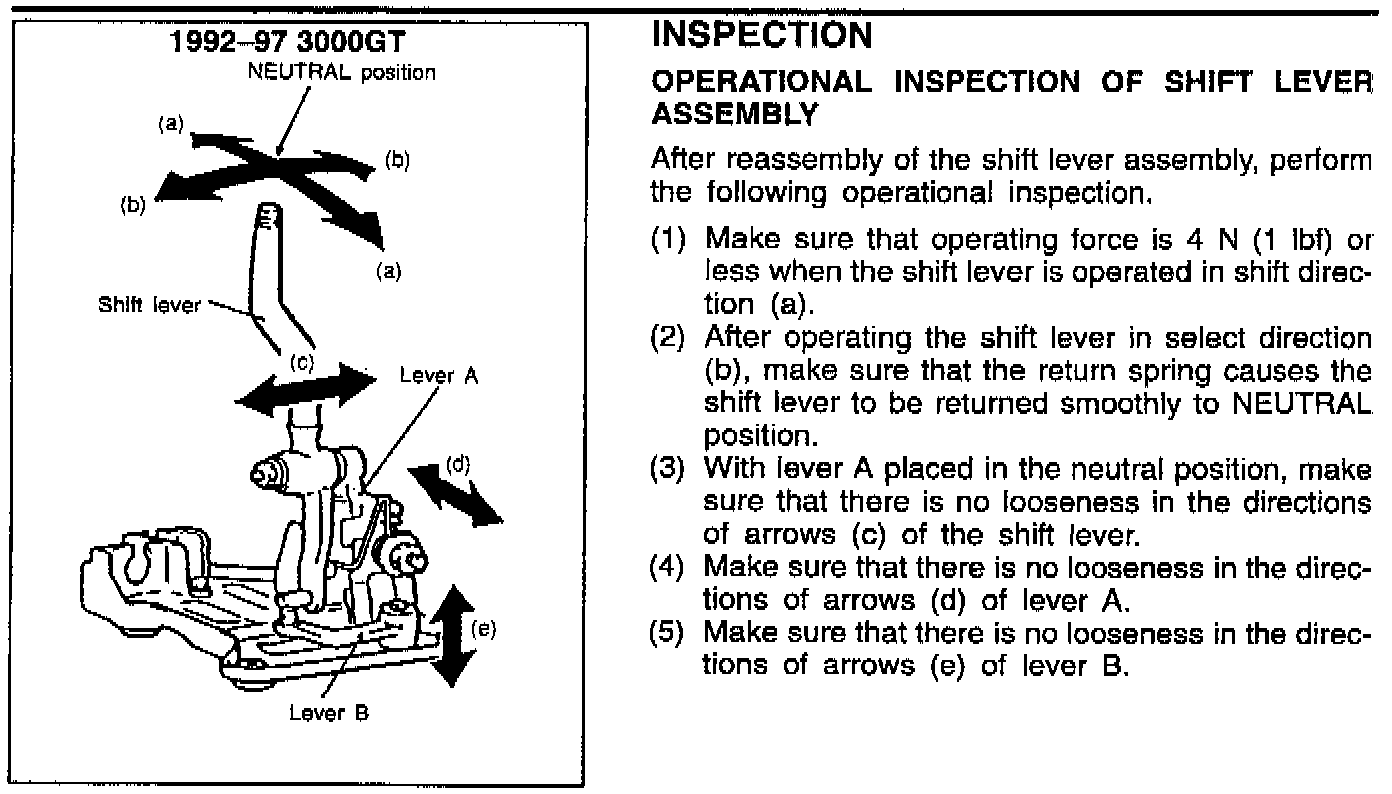

1992-96 3000GT Service Manual, Volume 1, Page 22-8
1997 3000GT Service Manual, Volume 1, Page 22A-12
Add the following new procedures for OPERATIONAL INSPECTION OF SHIFT LEVER ASSEMBLY to the end of the indicated service manual pages.

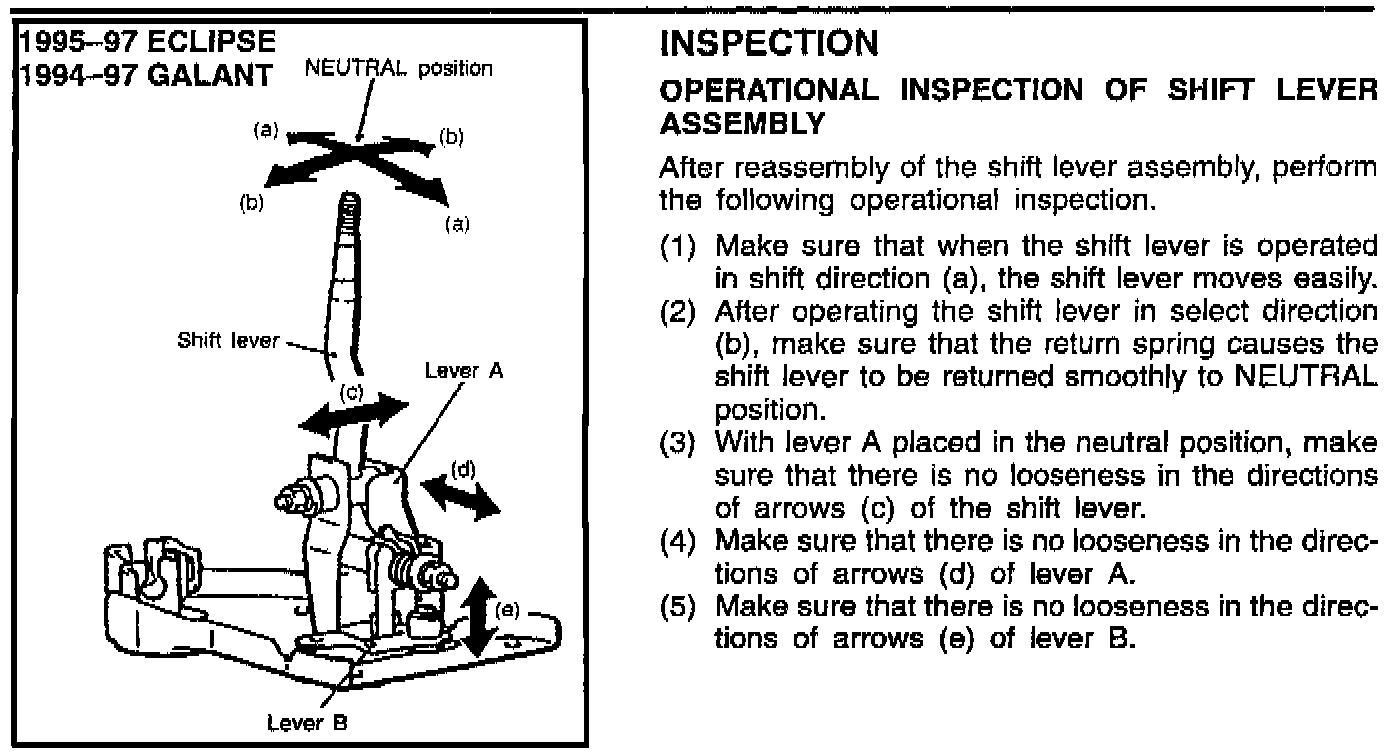

1995 Eclipse Service Manual, Volume 1, Pages 22-9 and 22-24
1996 Eclipse Service Manual, Volume 1, Pages 22A-10 and 22A-26
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Pages 22A-11 and 22A-27
1994-95 Galant Service Manual, Volume 1, Page 22-8
1996 and 1997 Galant Service Manuals, Volume 1, Page 22A-8 Add the following new procedures for OPERATIONAL INSPECTION OF SHIFT LEVER ASSEMBLY to the end of the indicated service manual pages.

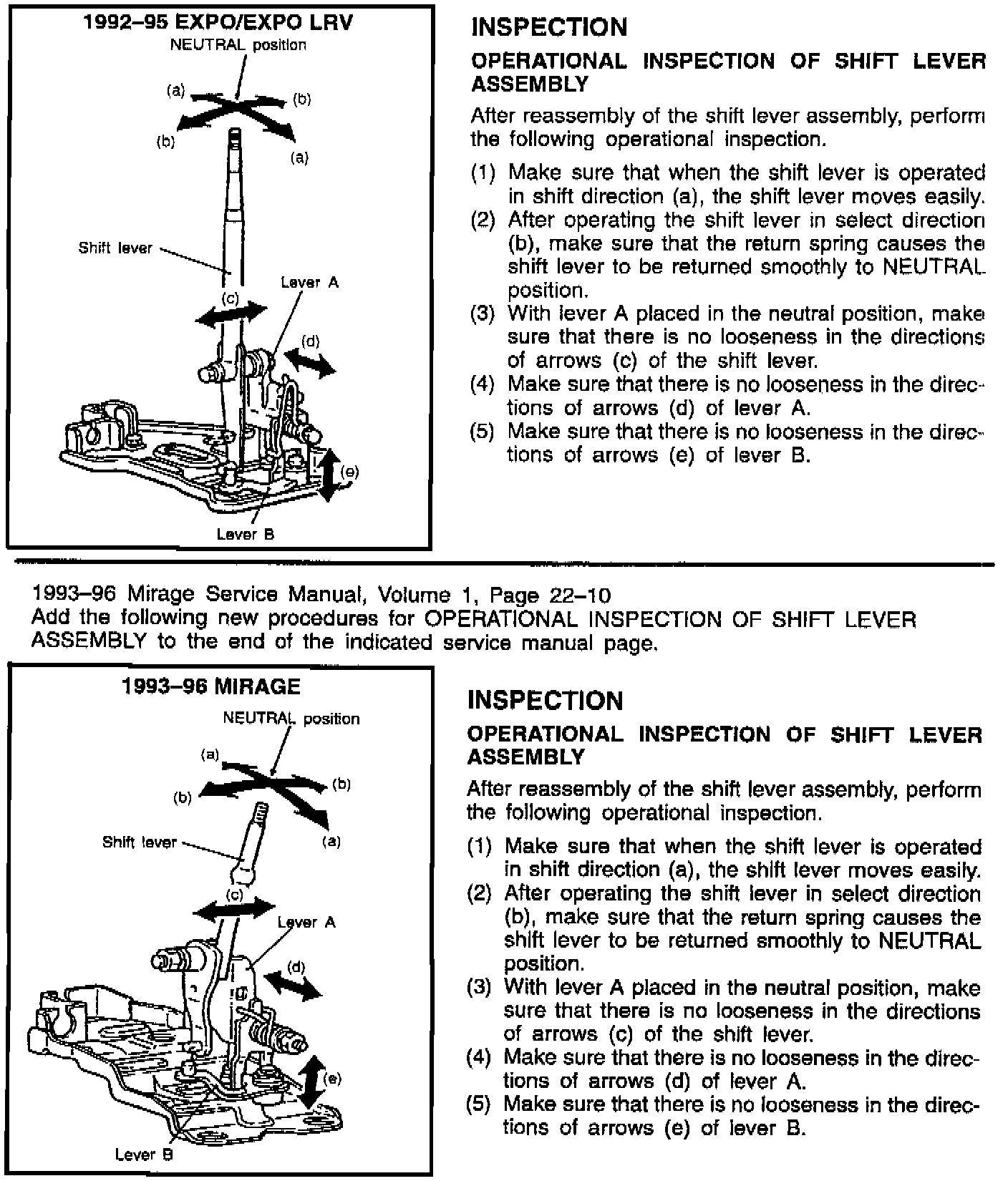

1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 22-8
Add the following new procedures for OPERATIONAL INSPECTION OF SHIFT LEVER ASSEMBLY to the end of the indicated service manual page.
