Removal and Replacement

Part 1:

Part 2:

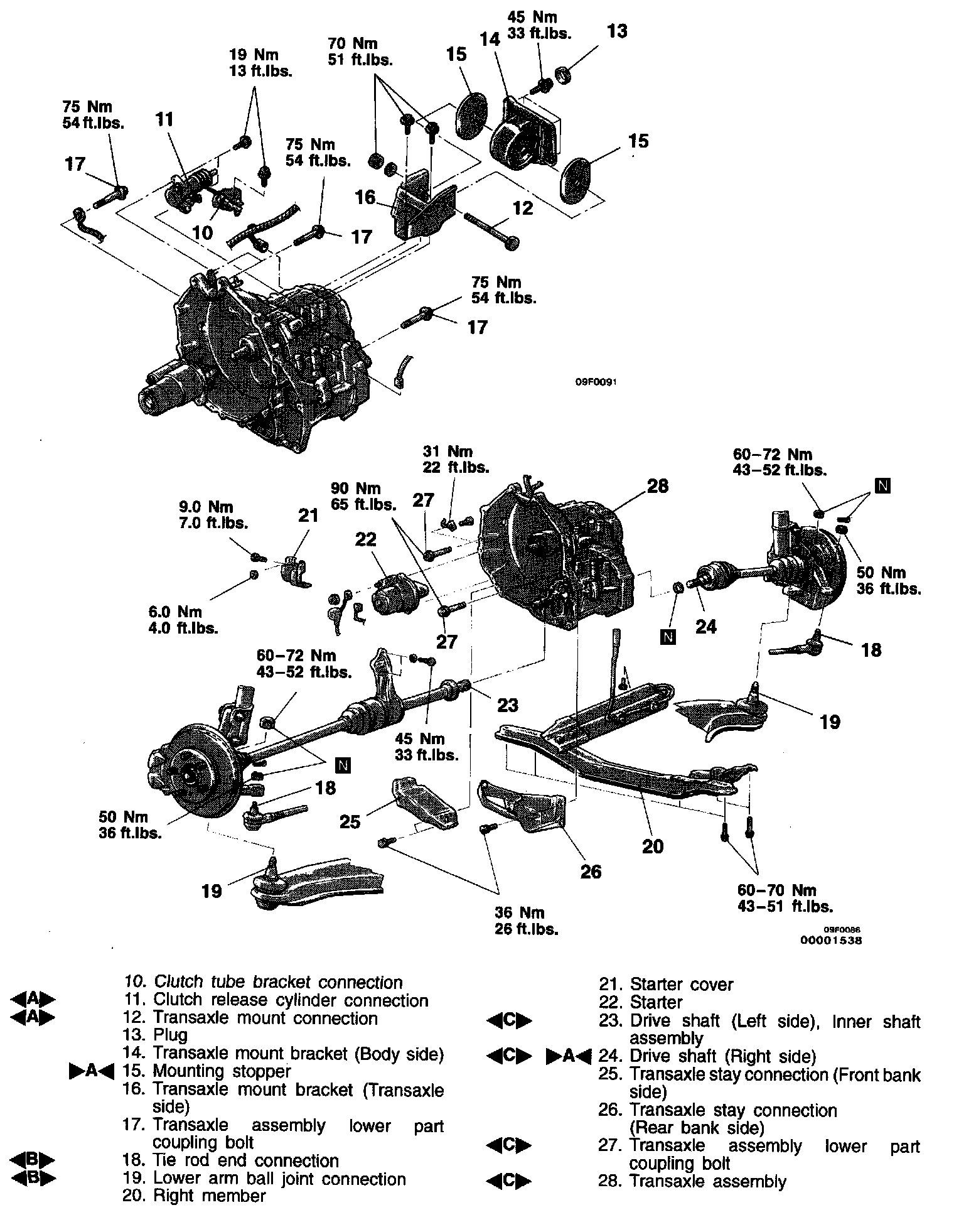

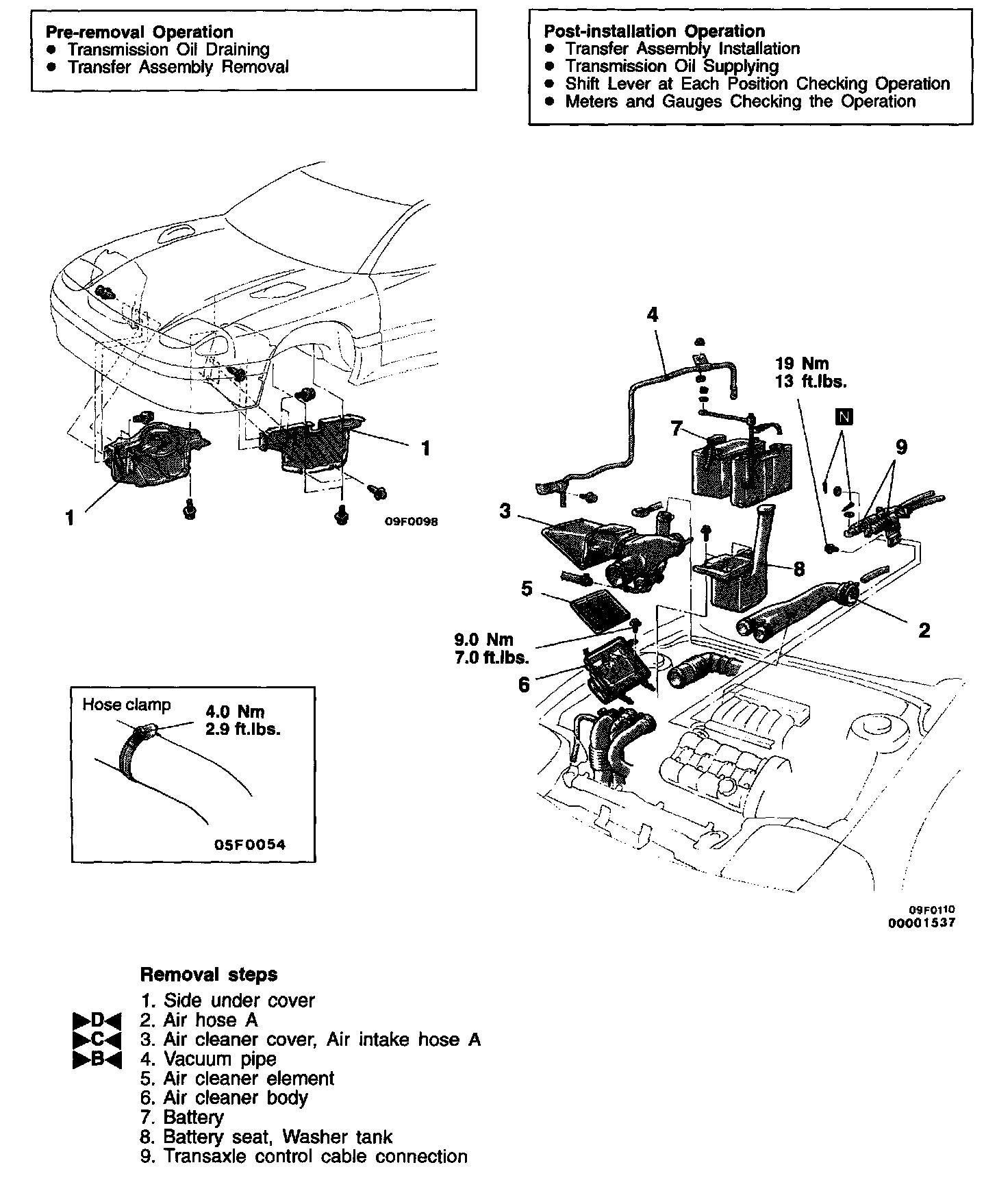

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

(A) CLUTCH RELEASE CYLINDER / TRANSAXLE MOUNT CONNECTION
(B) TIE ROD END / LOWER ARM BALL JOINT CONNECTION
(C) DRIVE SHAFT (LEFT SIDE), INNER SHAFT ASSEMBLY / DRIVE SHAFT (RIGHT SIDE) / TRANSAXLE ASSEMBLY LOWER COUPLING BOLT / TRANSAXLE ASSEMBLY REMOVAL

INSTALLATION SERVICE POINTS

(A) DRIVE SHAFT (RIGHT SIDE) / MOUNTING STOPPER INSTALLATION

(B) VACUUM PIPE INSTALLATION




If the vacuum pipe has a stepped part, connect the vacuum hose to the pipe securely, up to the stepped part, as shown in the figure.

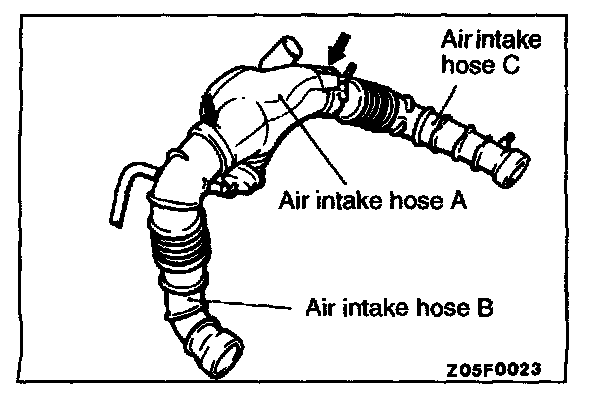

(C) AIR CLEANER COVER, AIR INTAKE HOSE A INSTALLATION




Align slots indicated by arrows in air intake hose A with A markings on air intake hoses B and C; then, insert hoses B and C all the way into air intake hose A.
Insert air intake hoses B and C all the way up to the roots on the turbocharger end.

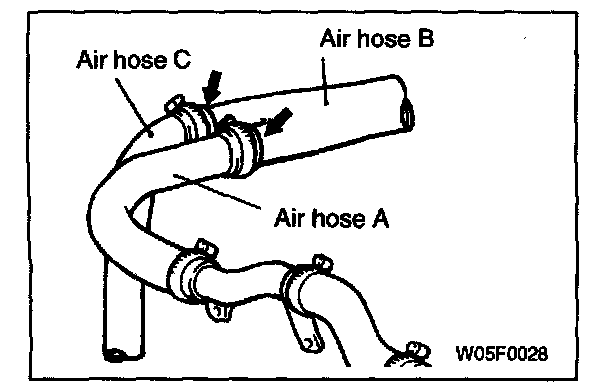

(D) AIR HOSE A INSTALLATION




Connect the air hoses ensuring that alignment marks are aligned with projections.
Insert air hoses B and C into pipe all the way to its step.

CAUTION: Be careful not to allow any foreign matter to get into the hoses, pipes, or the intercooler itself.
