Service Adjustment Procedures

1. Disconnect the drive shaft from the transaxle.

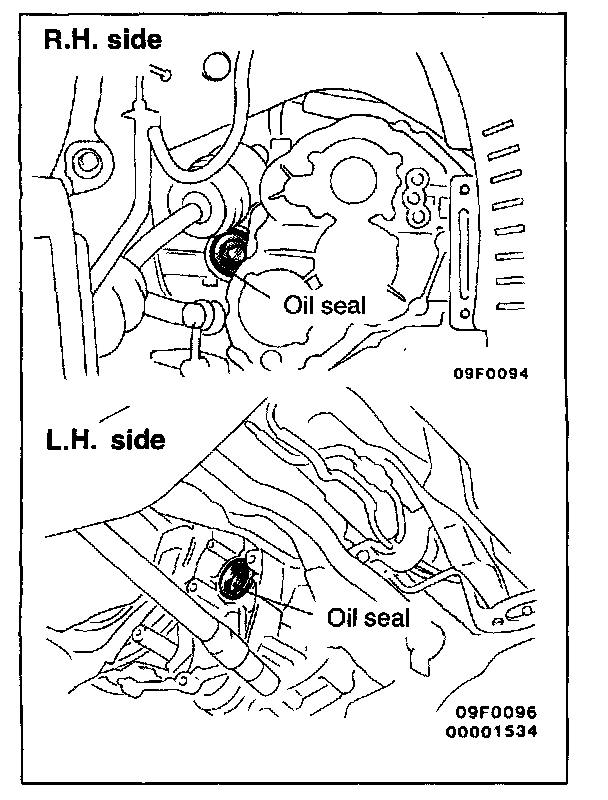

2. Remove the transfer assembly.
3. Using a flat-tip (-) screwdriver, remove the oil seal.




4. Install the oil seals using the following procedure:

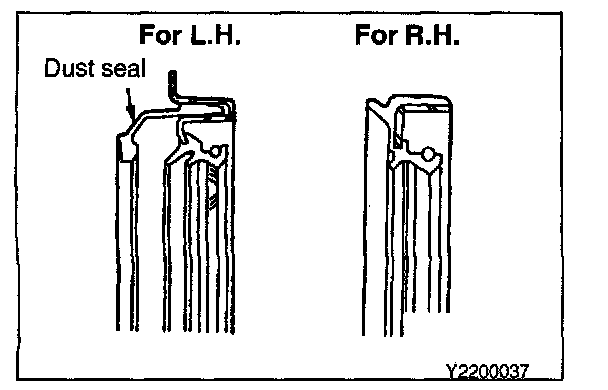

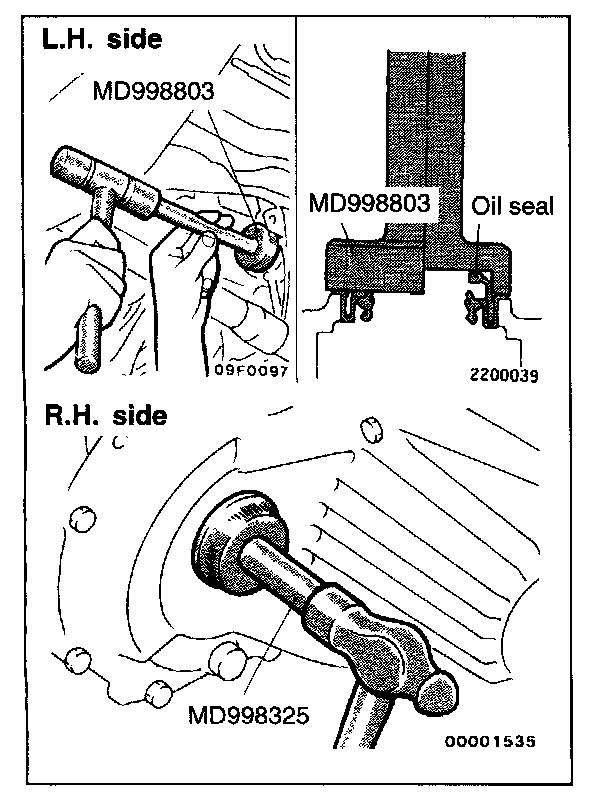

Using the special tool, tap the oil seal into the transaxle. Note that there are two types of oil seals, one for R.H. and the other for L.H., and the shape of each type is different, as shown.




5. Drive shaft oil seal must be installed in the direction shown.
6. Apply a coating of the transmission oil to the lip of the oil seal.

Transmission oil: Hypoid gear oil, SAE 75 W - 90 or 75 W - 85 W conforming to API classification GL-4
