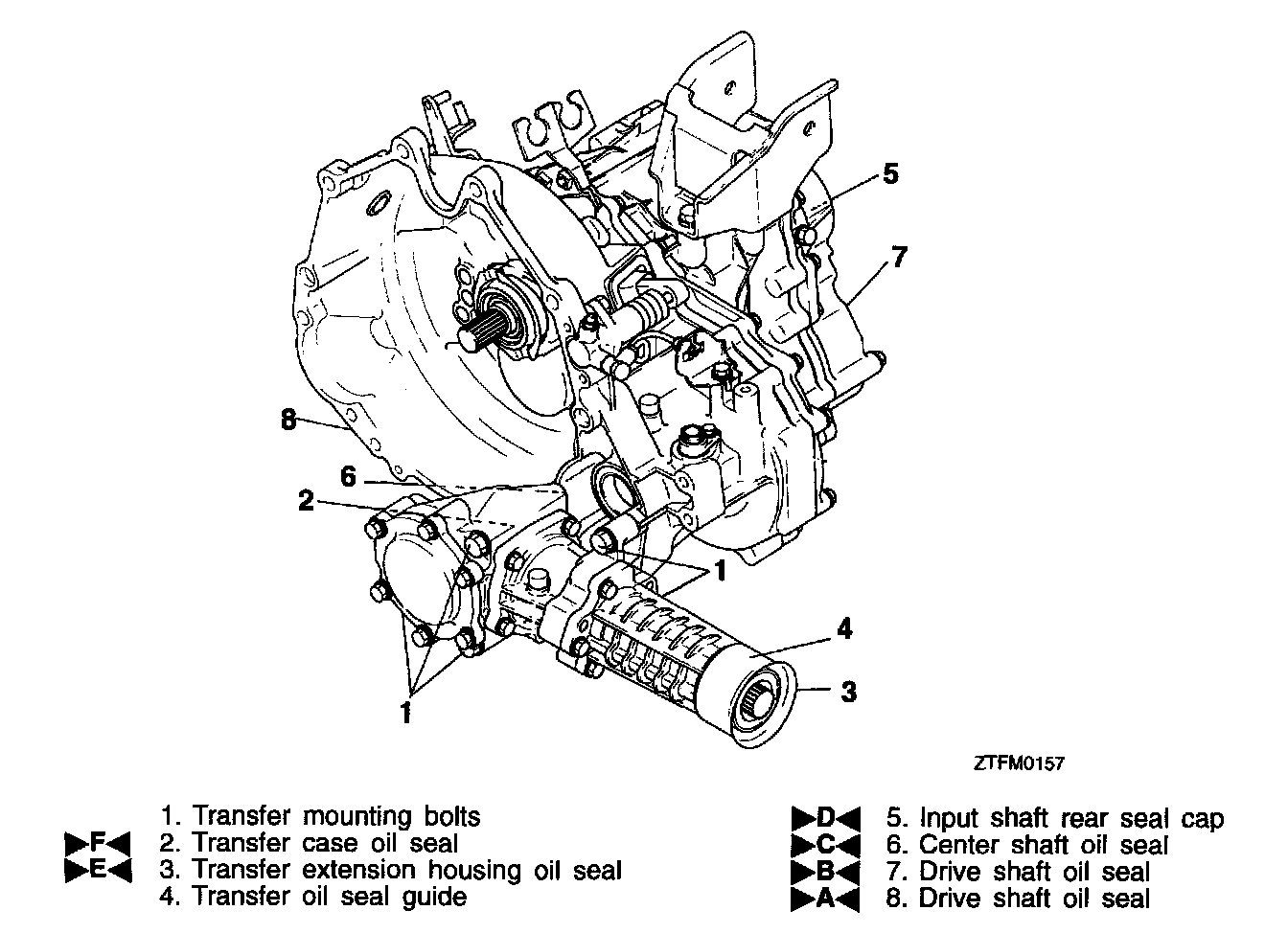

Replaceable Part

The transaxle cannot be disassembled.
If any parts other than describes below are detective, replace the transaxle assembly.

INSTALLATION SERVICE POINTS

(A) DRIVE SHAFT OIL SEAL INSTALLATION

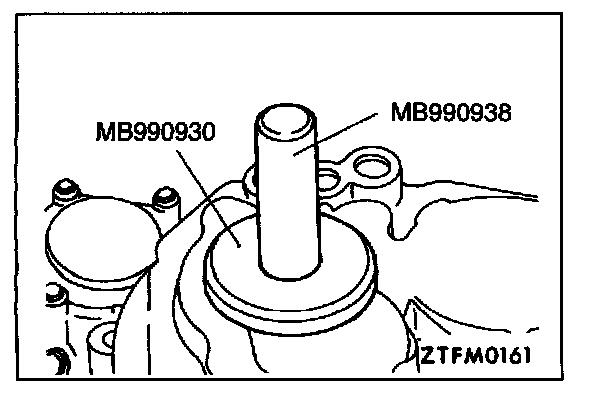

Using the special tool, install the drive shaft oil seal.

(B) DRIVE SHAFT OIL SEAL INSTALLATION




Using the special tool, install the drive shaft oil seal.

(C) CENTER SHAFT OIL SEAL INSTALLATION

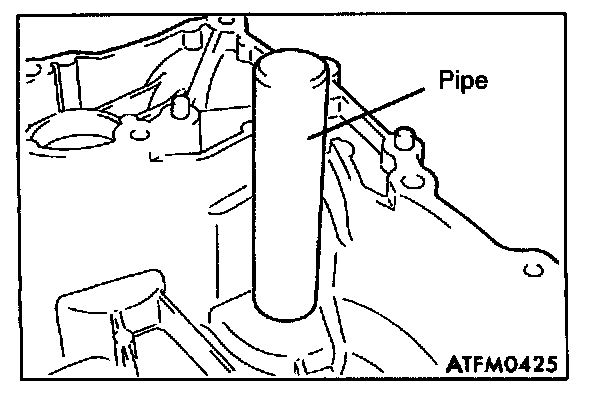

Using a pipe shown in the illustration, drive the oil seal until it is flush with the case. Do not drive the oil seal more than necessary.

(D) INPUT SHAFT REAR SEAL CAP INSTALLATION

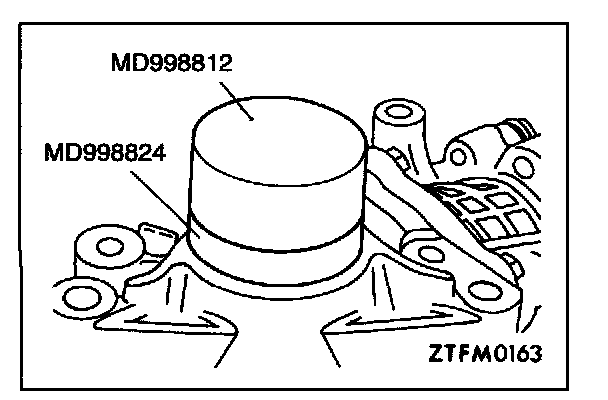

Using the special tool, install the input shaft rear seal cap.

(E) TRANSFER EXTENSION HOUSING OIL SEAL INSTALLATION

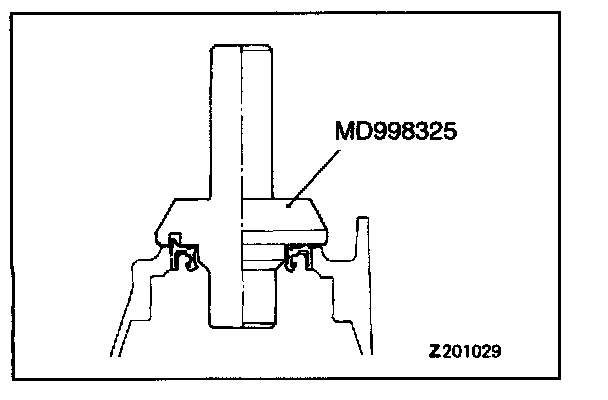

Using the special tool, install the transfer extension housing oil seal.

(F) TRANSFER CASE OIL SEAL INSTALLATION

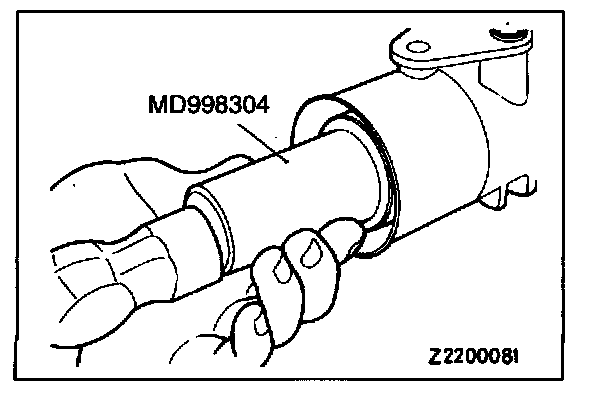

Using the special tool, install the transfer case oil seal.
