Disassembly

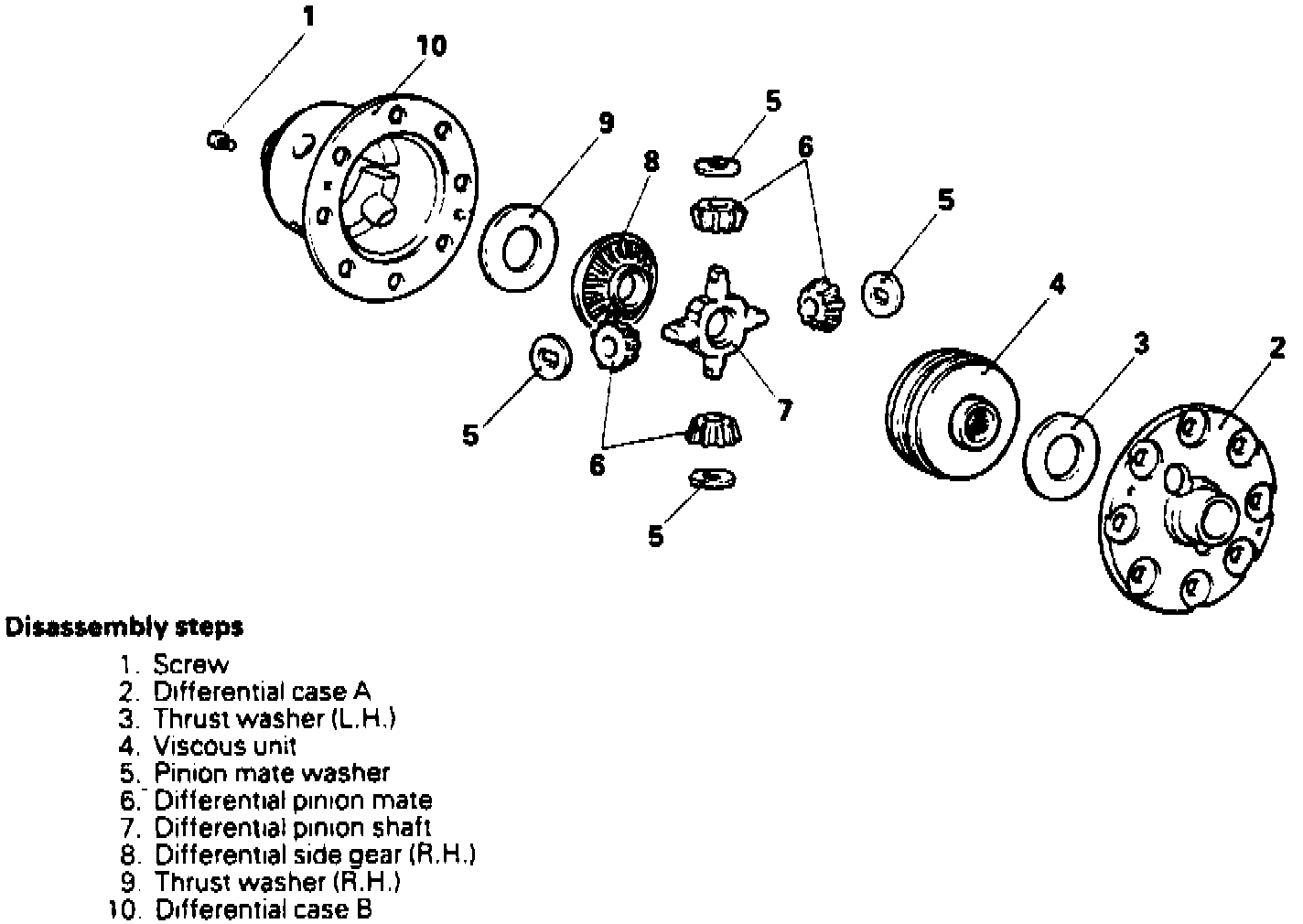

Fig. 39 Limited Slip Differential Carrier Disassembly:

Disassemble limited slip differential carrier in numbered sequence shown in Fig. 39. Right and left thrust washers are of different thickness, and should be identified in some way for reference during assemble.
