Clutch Master Cylinder: Service and Repair

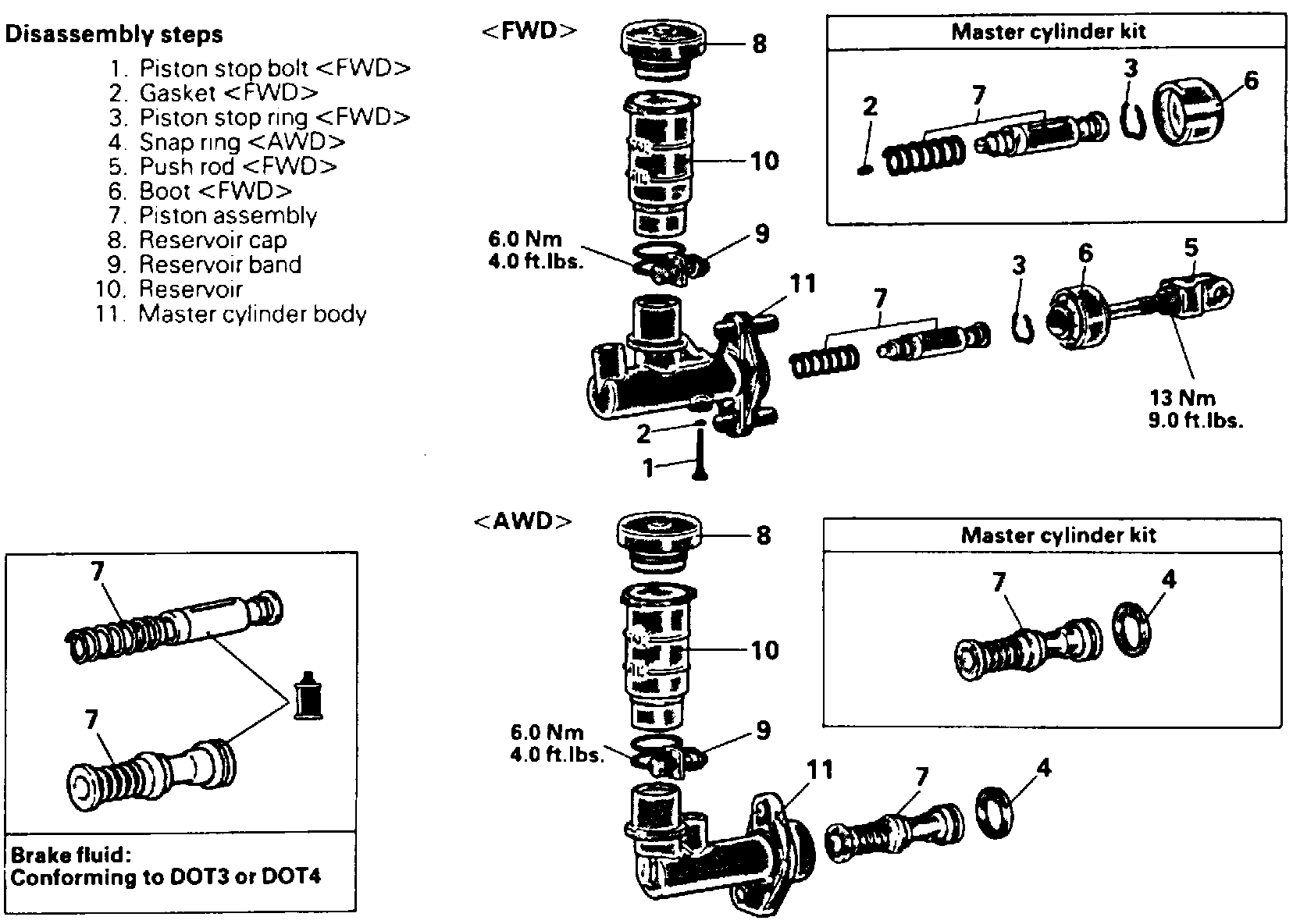

Fig. 20 Clutch Master Cylinder:

2. Remove snap ring while depressing the piston, Fig. 20.
3. Remove piston assembly. Do not damage master cylinder body or piston assembly. Do not disassemble piston assembly.
4. Inspect inside cylinder body and piston for rust or scars and the piston cup for wear or deformation, replace as necessary.
5. Inspect clutch tube connection part for clogging.
6. Reverse procedure to assemble, tightening reservoir band.
