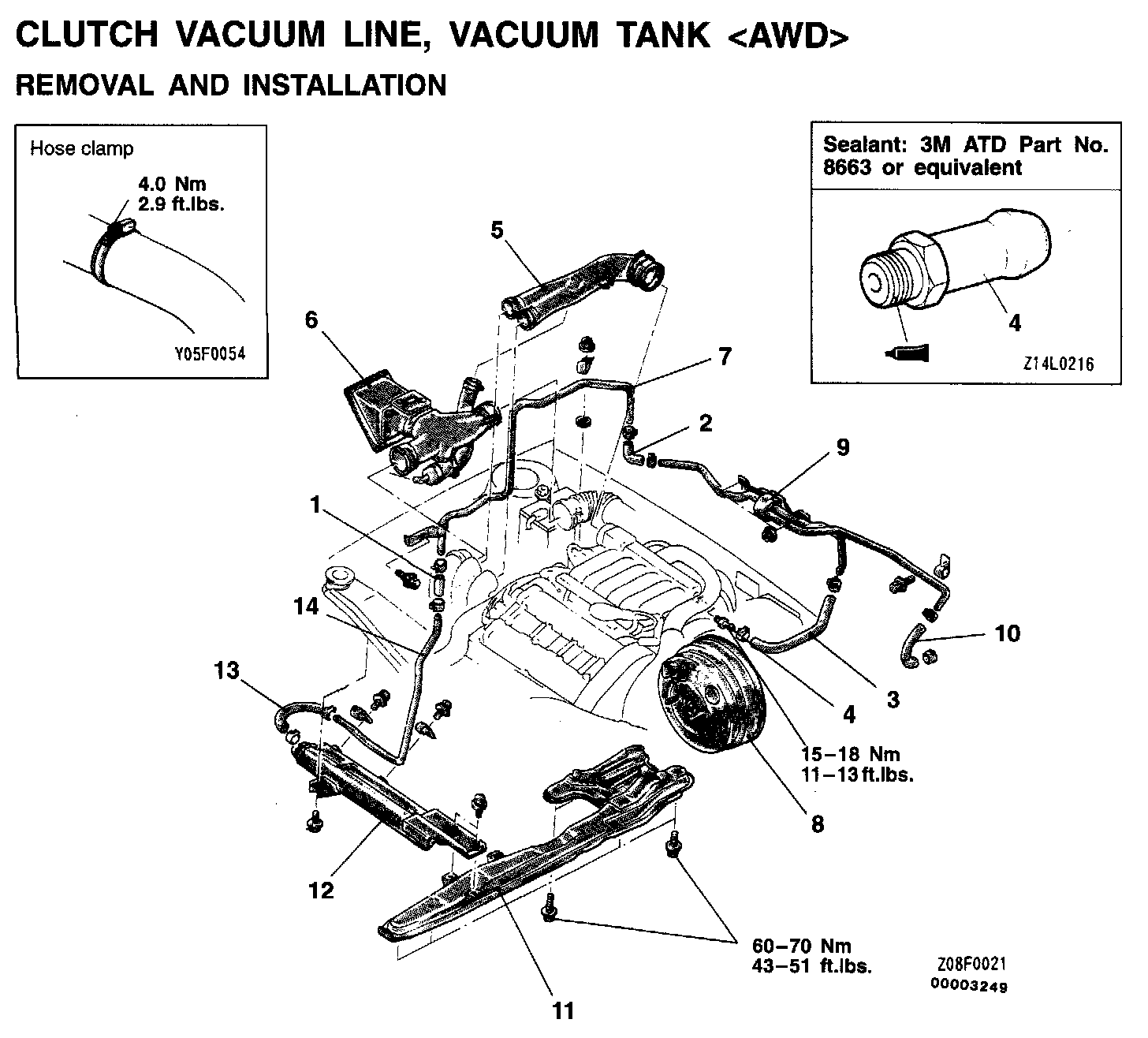

Clutch Assist Booster: Service and Repair

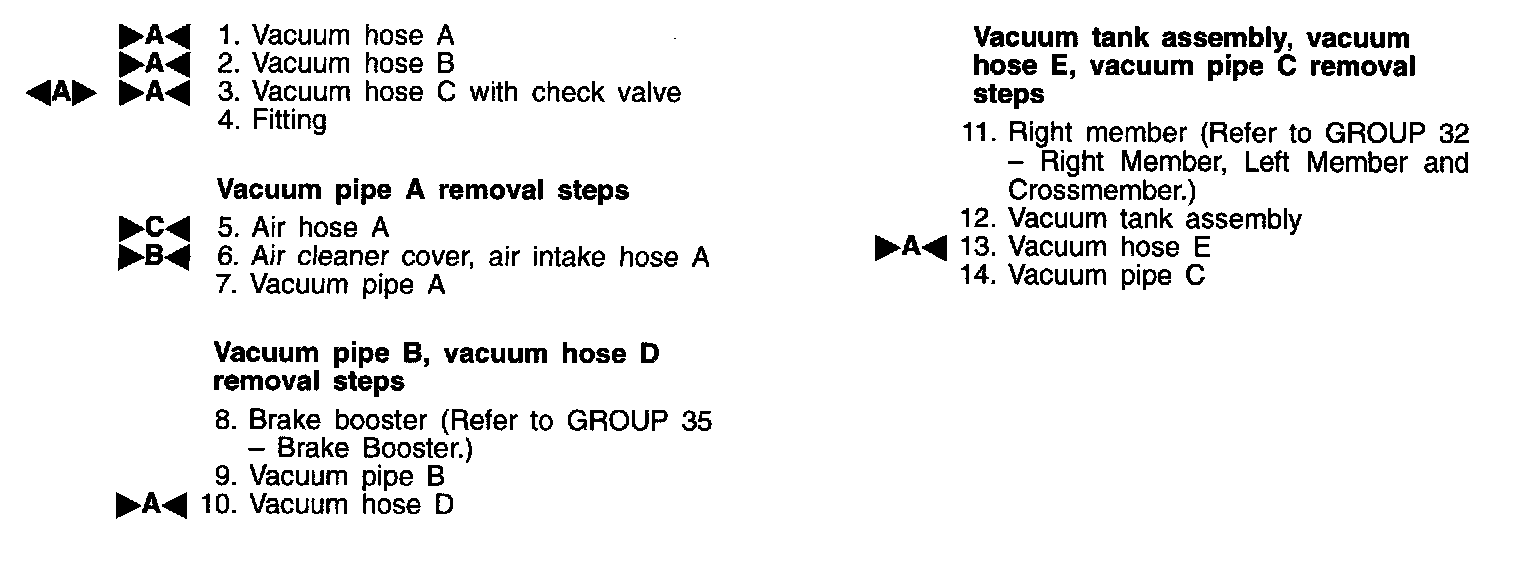

REMOVAL SERVICE POINT

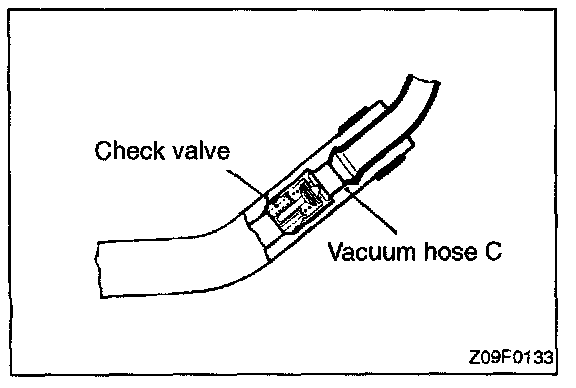

{A} VACUUM HOSE C WITH CHECK VALVE REMOVAL

NOTE:
Since the check valve is fit to the vacuum hose C, replace the check valve as an assembly unit together with the vacuum hose C if the check valve is defective.





INSTALLATION SERVICE POINTS

}A{ VACUUM HOSE E/VACUUM HOSE D/VACUUM HOSE C WITH CHECK VALVE/VACUUM HOSE B/VACUUM HOSE A INSTALLATION

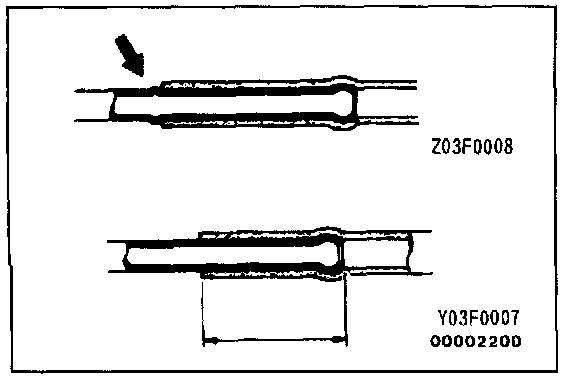

If a hose is connected to a pipe with a stepped part, insert the hose up to the stepped part.

If it is connected to a pipe without any stepped part, insert the hose until the insertion amount reaches the standard value.

Standard value: 20 - 25 mm (.8 - 1.0 in.)

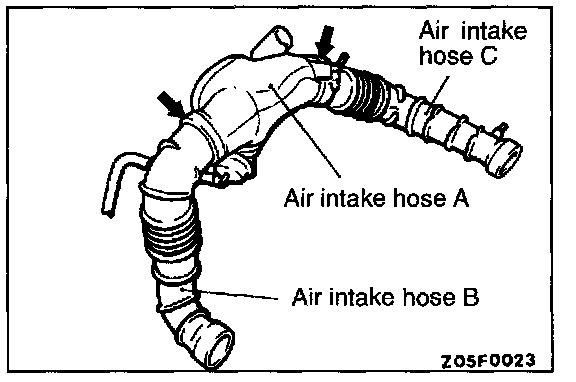

}B{ AIR CLEANER COVER, AIR INTAKE HOSE A INSTALLATION

Align slots indicated by arrows in air intake hose A with arrow markings on air intake hoses B and C; then, insert hoses B and C all the way into air intake hose A.

Insert air intake hoses B and C all the way up to the roots on the turbocharger end.

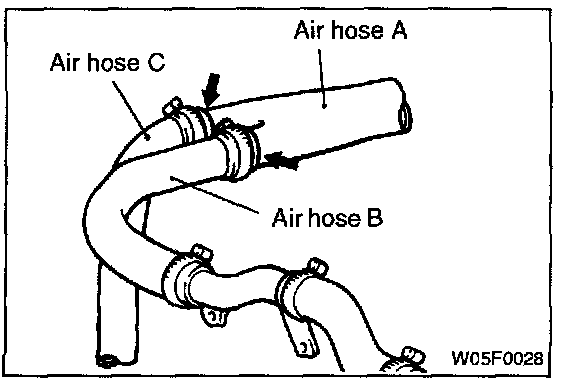

}C{ AIR HOSE A INSTALLATION

Connect the air hoses ensuring that alignment marks are aligned with projections.

Insert air hoses B and C into pipe all the way to its step.

Caution: Be careful not to allow any foreign matter to get into the hoses, pipes, or the intercooler itself.
