Symptom Related Diagnostic Procedures

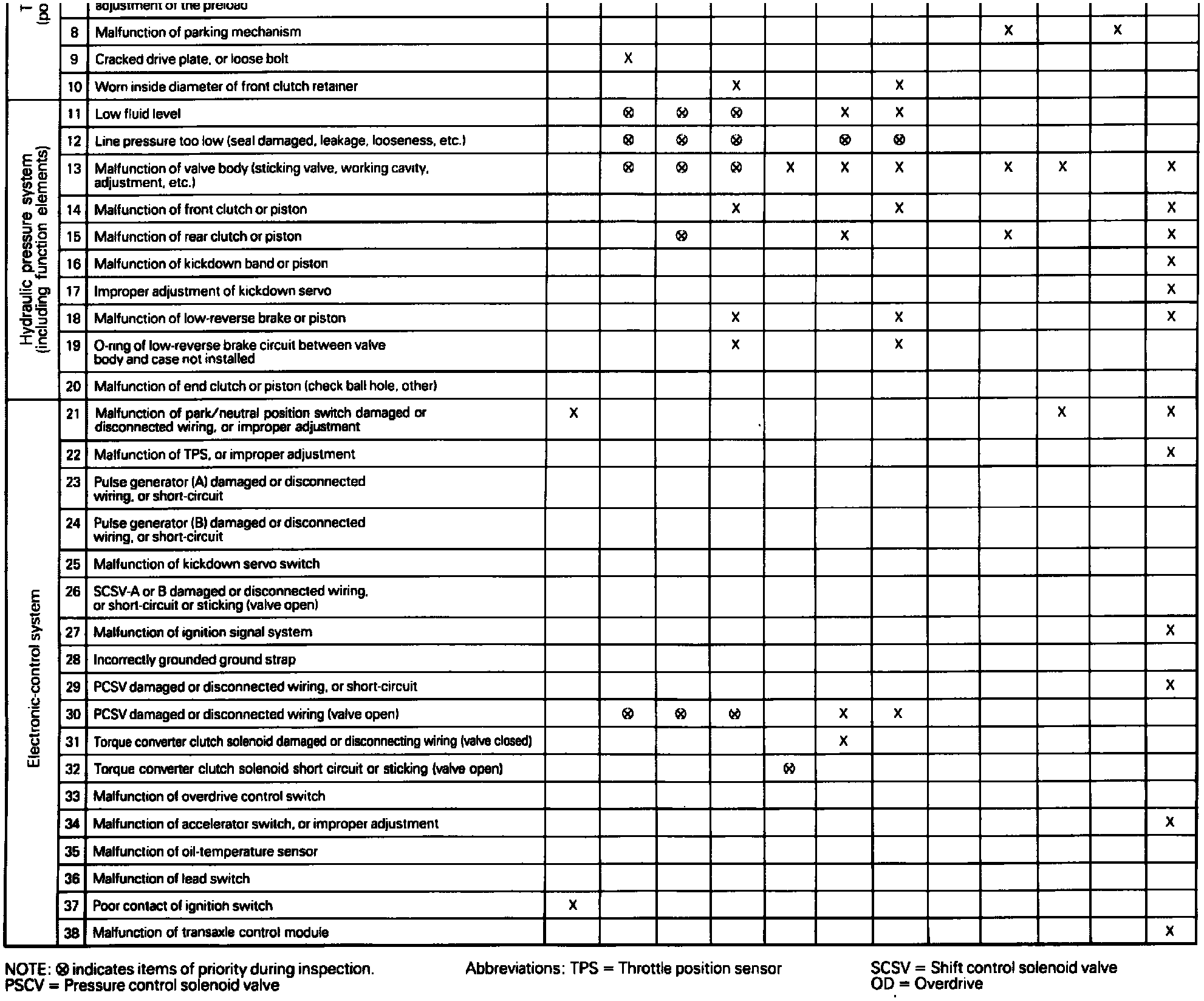

Pˋ;Fig. 11 Transaxle Troubleshooting (Part 1 Of 2):

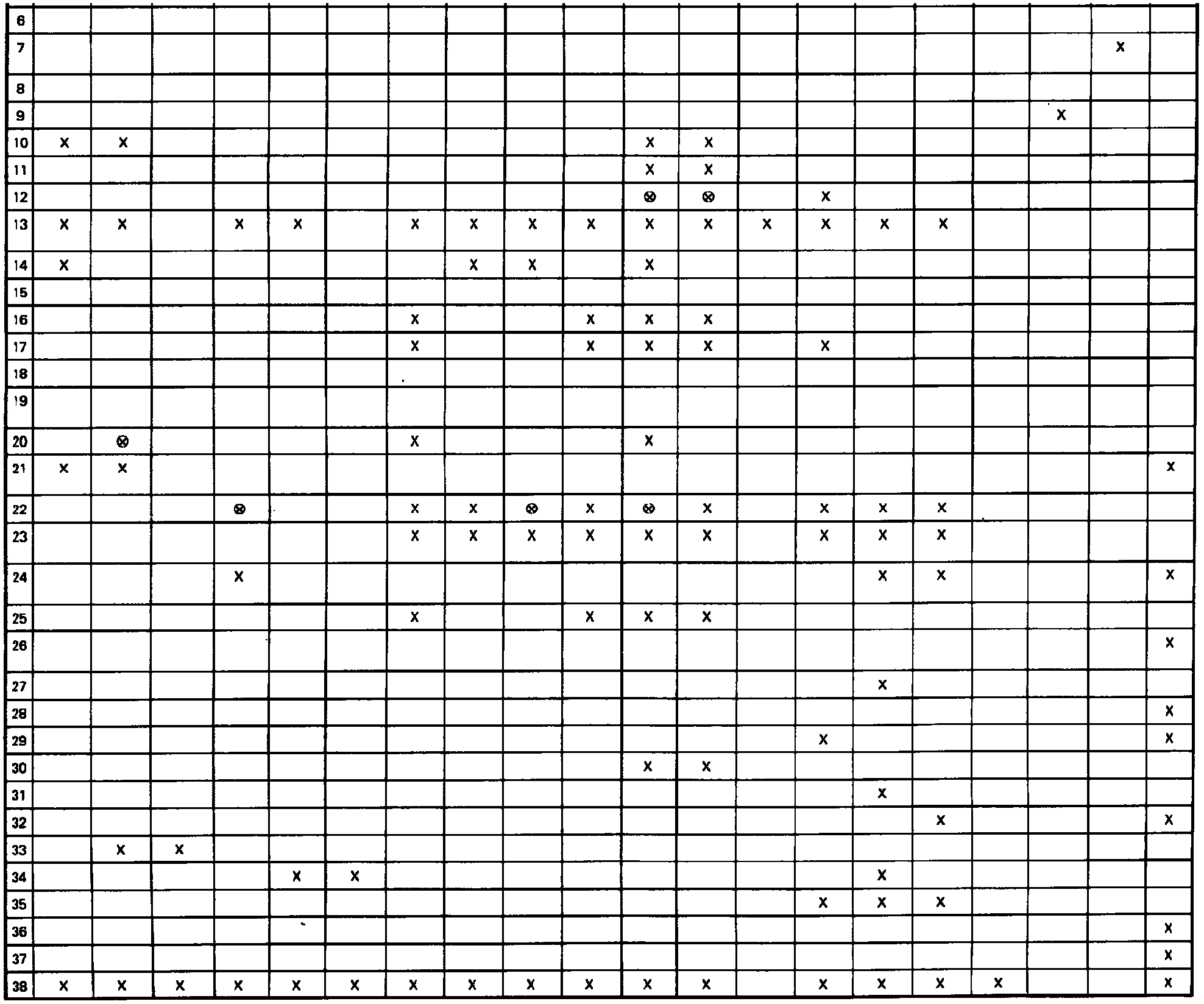

�+�;Fig. 11 Transaxle Troubleshooting (Part 2 Of 2):

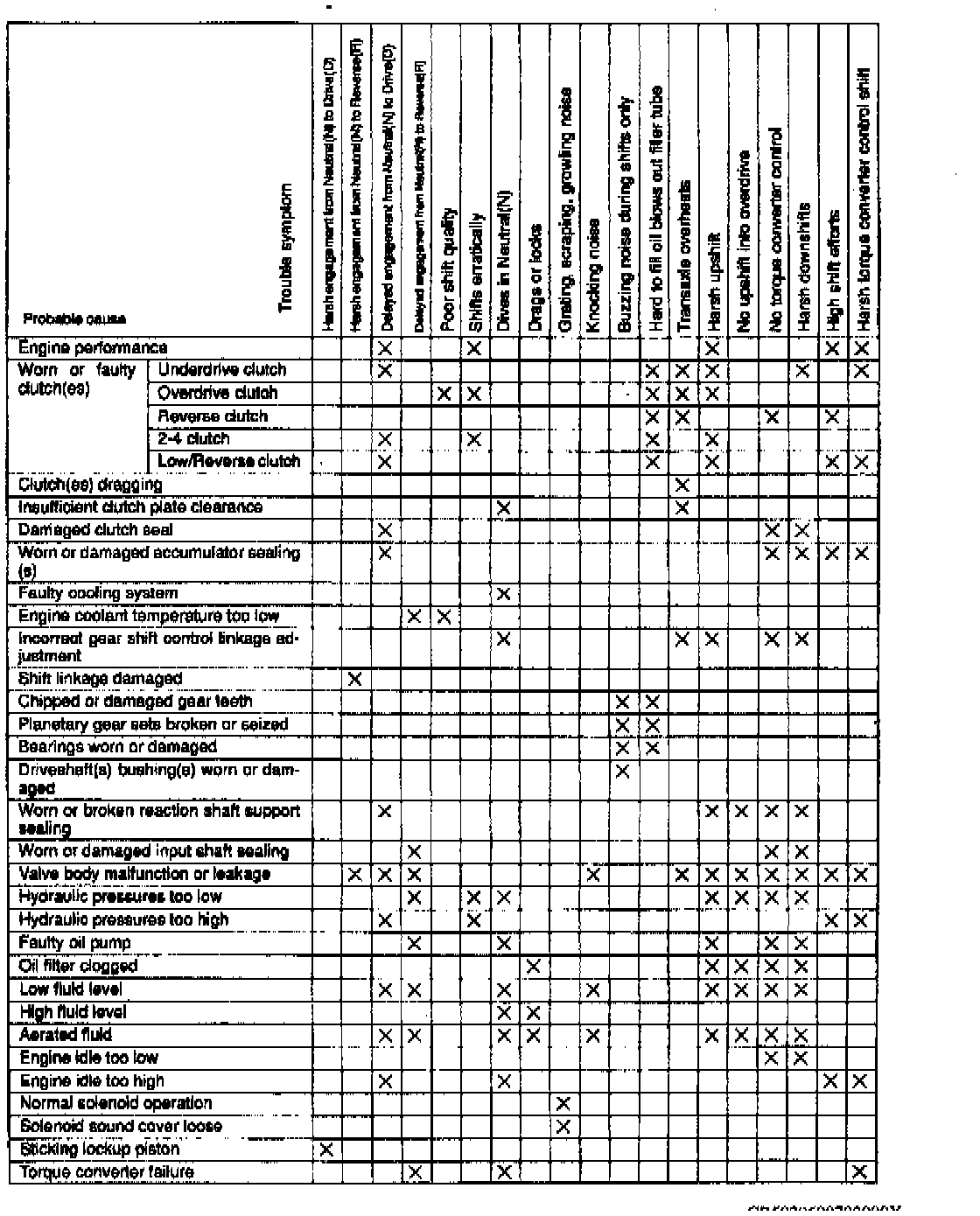

Fig. 12 Inspection Matrix For Trouble Symptoms:
Refer to Figs. 11 and 12 when troubleshooting these transaxles.
