Shift Cable: Service and Repair

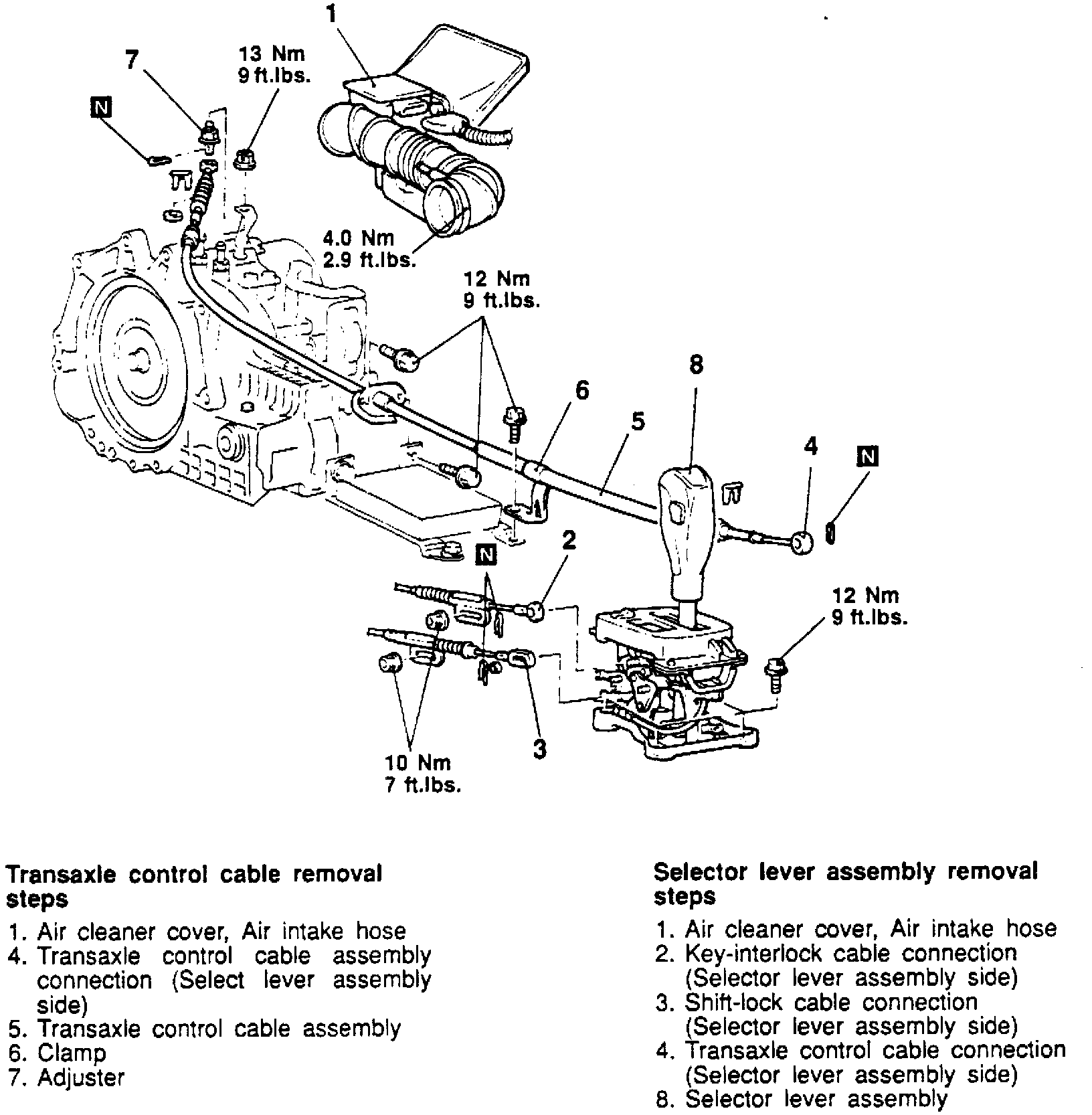

Fig. 33 Control Cable Replacement:





Refer to Figs. 33 when replacing transaxle control cables.
