Shift Interlock: Service and Repair

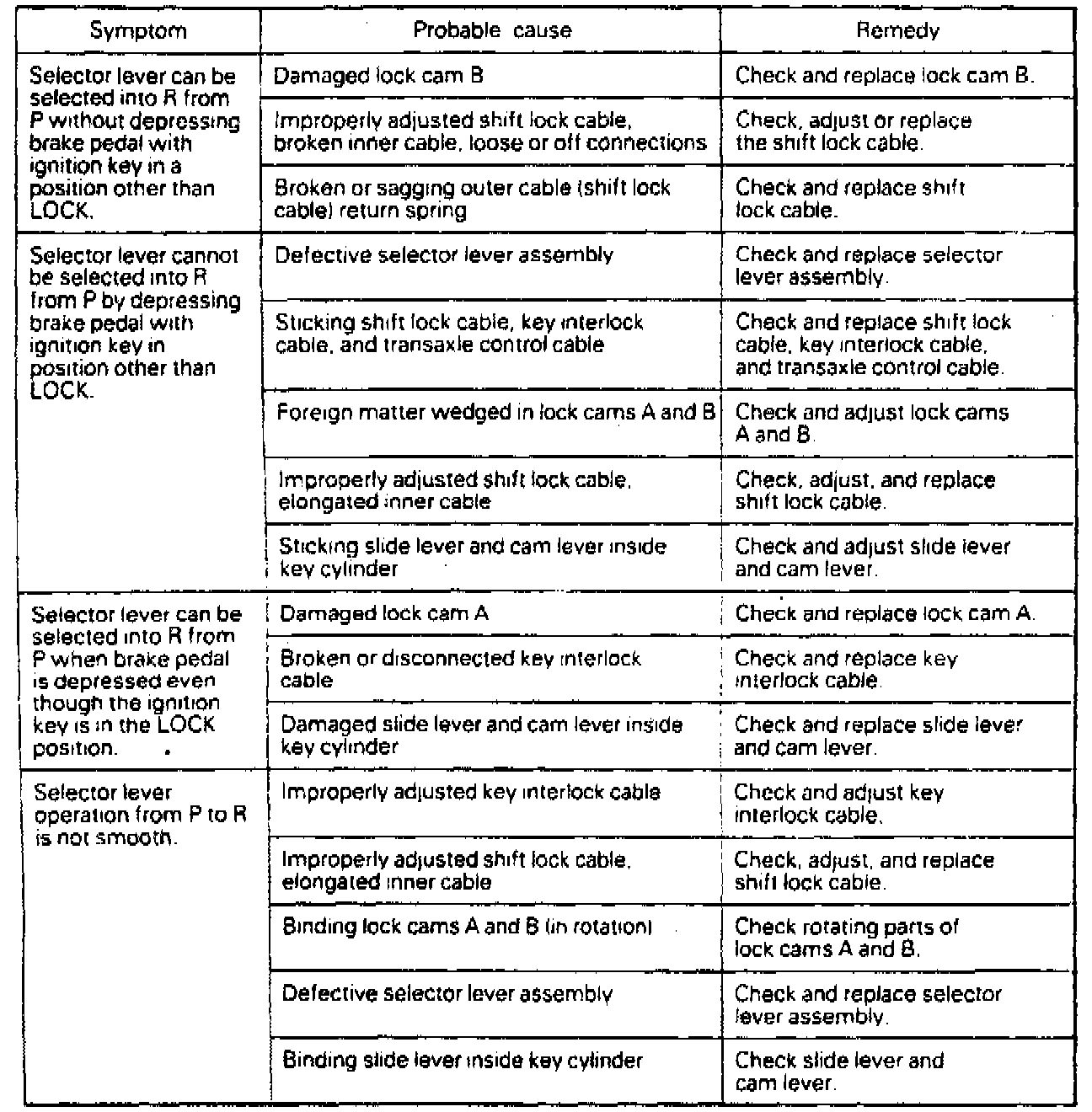

Fig. 13 Shift Lock System Troubleshooting (Part 1 Of 2):

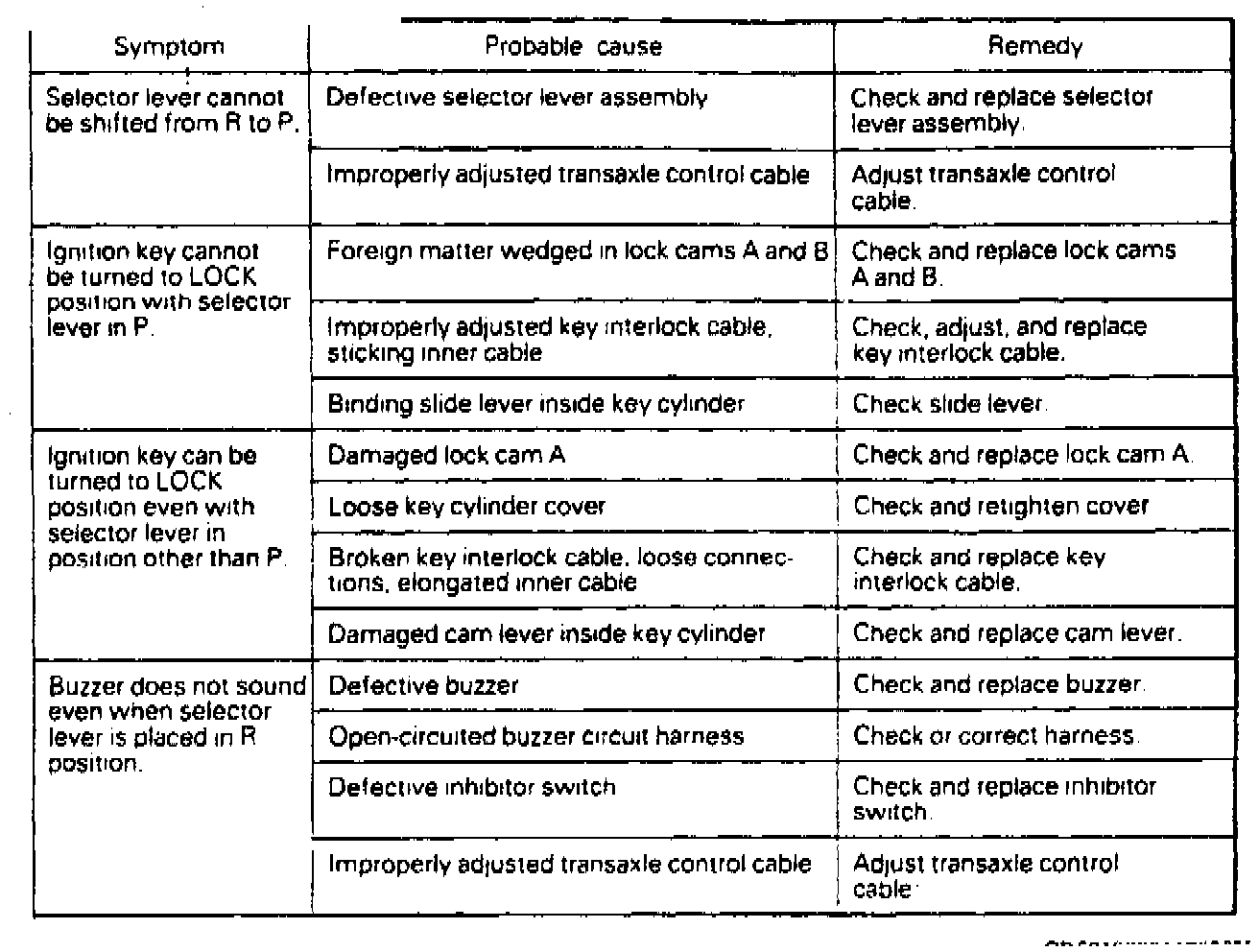

Fig. 13 Shift Lock System Troubleshooting (Part 2 Of 2):
Refer to Fig. 13 when troubleshooting the shift lock system.
Refer to Fig. 13 when troubleshooting the shift lock system.
