Throttle Body - Overhaul Procedure Revision
NO.: TSB-97-11-006DATE: May, 1997
MODEL: See below
SUBJECT:
THROTTLE BODY PROCEDURES - SERVICE MANUAL REVISION
[TSB Revision TSB-97-11-006]
PURPOSE
The throttle body procedures on the affected engine overhaul and service manual pages do not include the fixed SAS and speed adjusting screw. This service bulletin contains corrected throttle body disassembly and reassembly instructions.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
1992-96 3000GT, Diamante and Truck
1992-97 Montero
AFFECTED SERVICE MANUALS
1992-96 Engine Overhaul, pages 11E-53 through 11E-57
1996 Montero, Volume 1, page 13A-177
1997 Montero, Volume 1, page 13A-152

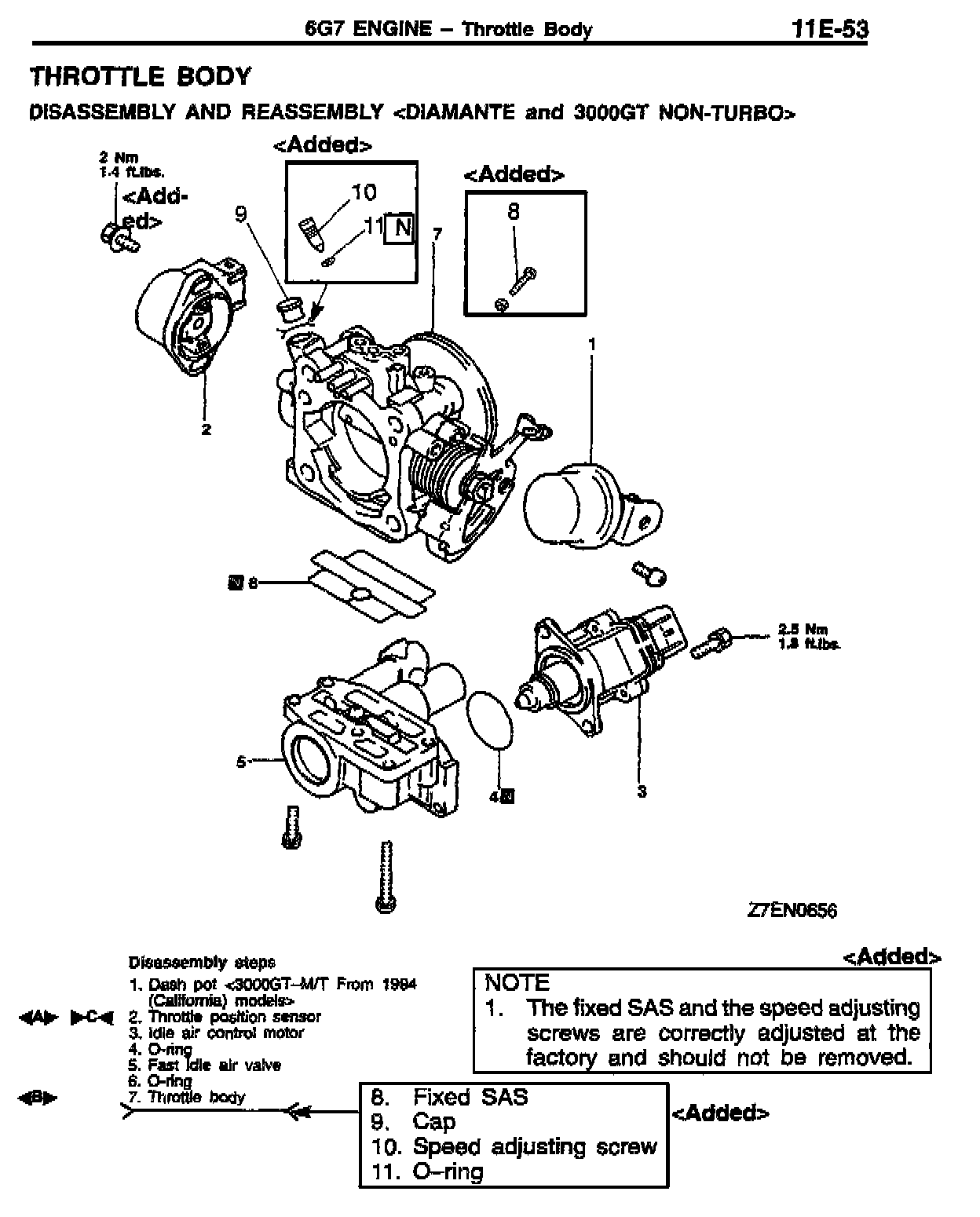

1992-96 Engine Overhaul Manual, page 11E-53

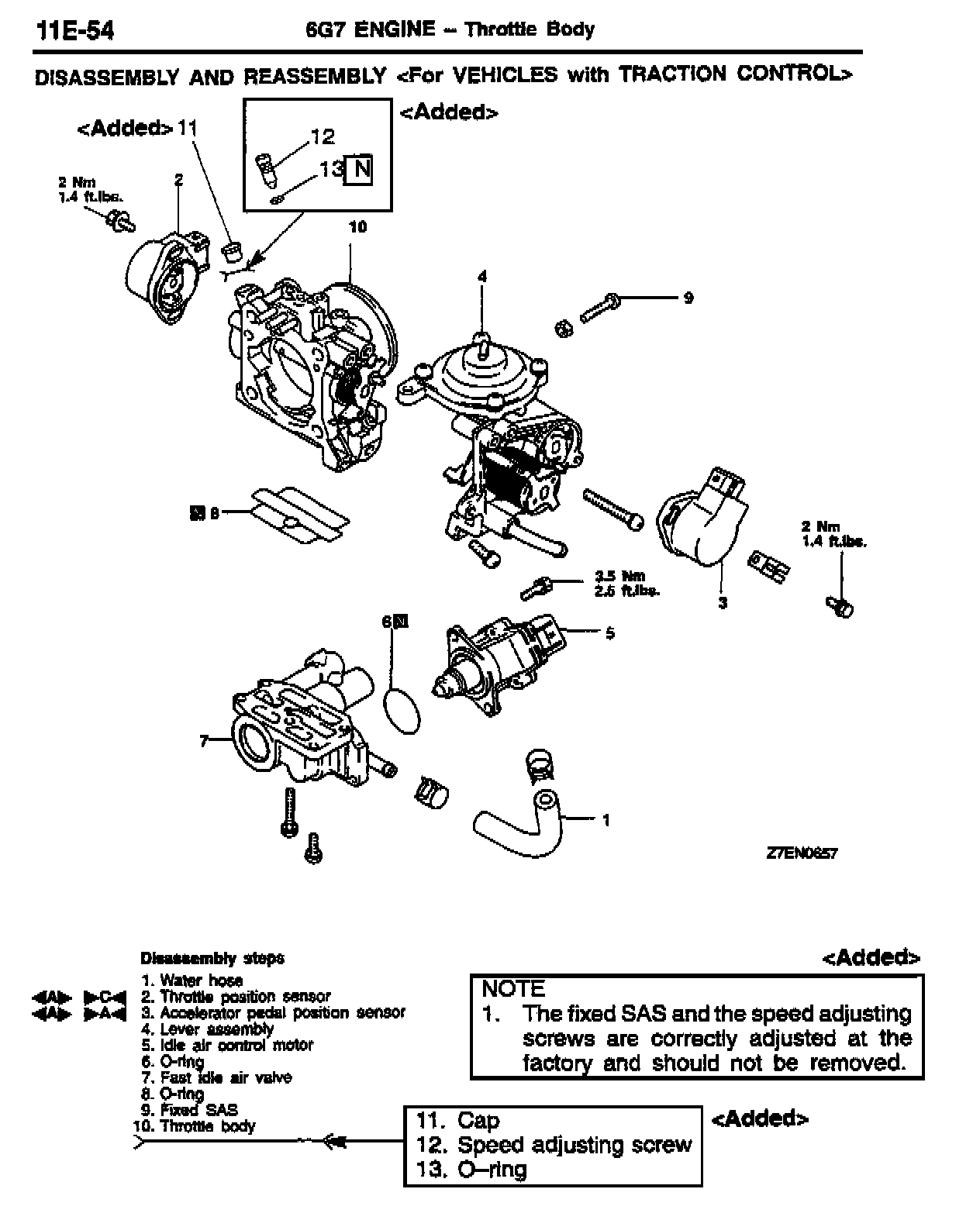

1992-96 Engine Overhaul Manual, page 11E-54

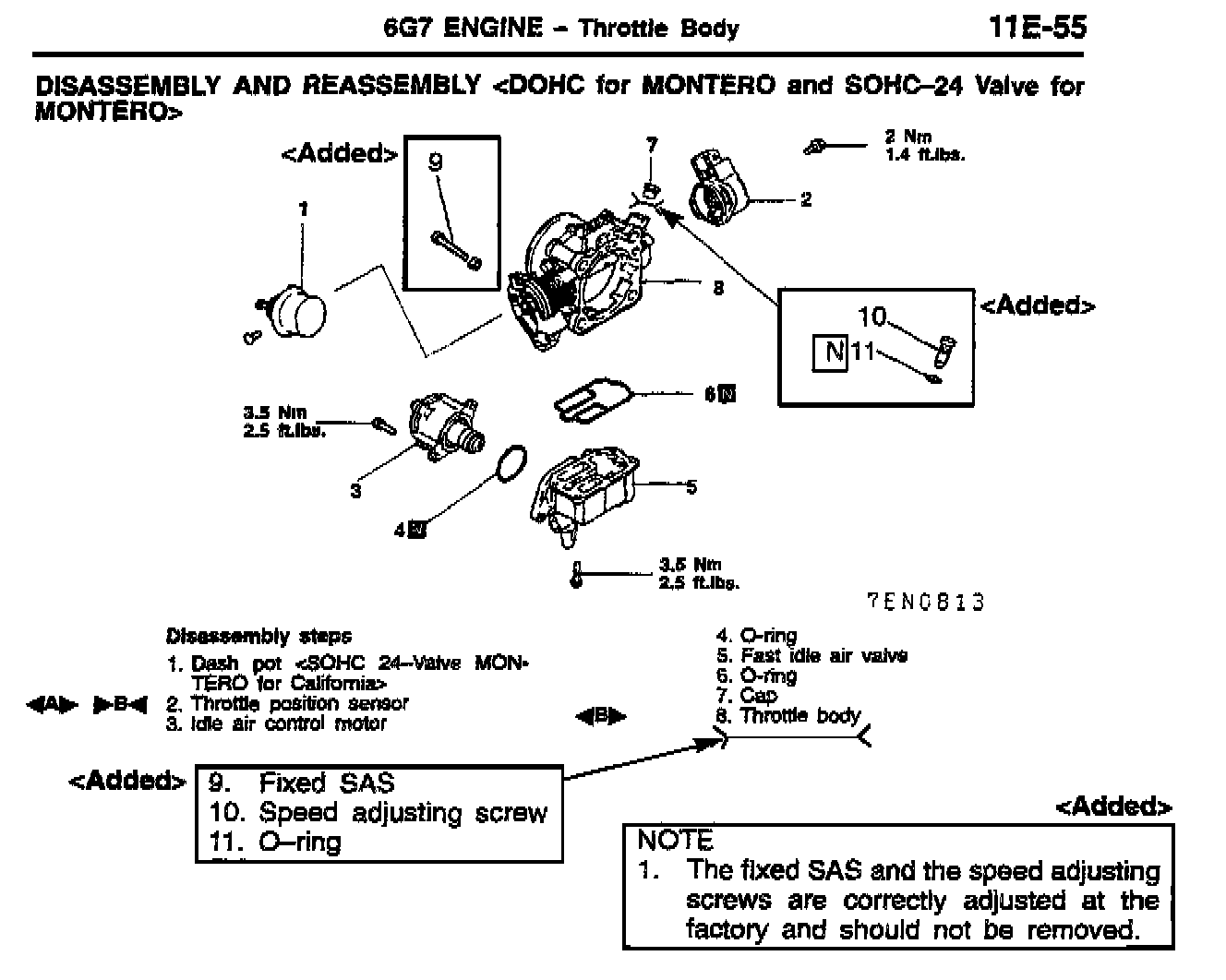

1992-96 Engine Overhaul Manual, page 11E-55

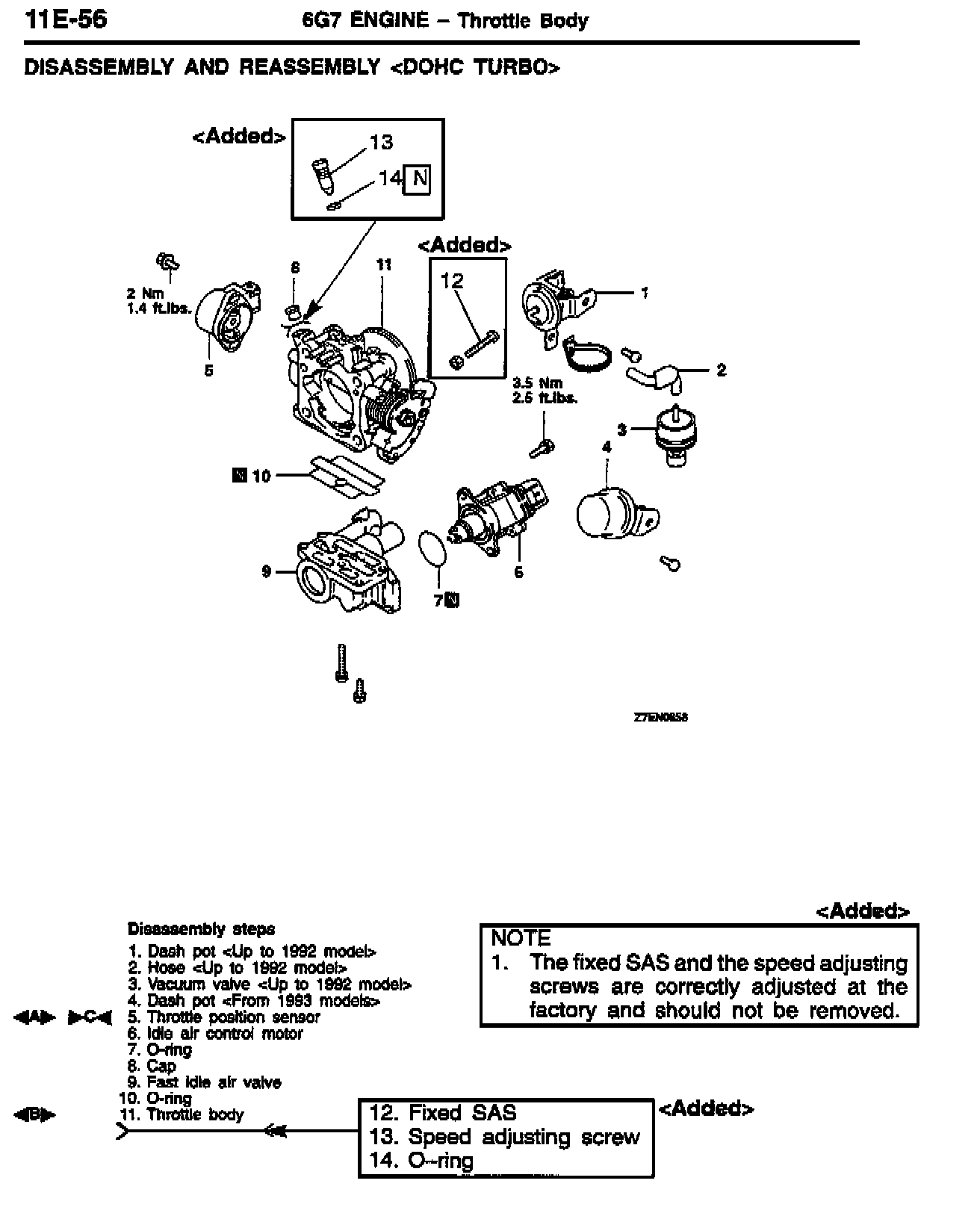

1992-96 Engine Overhaul Manual, page 11E-56

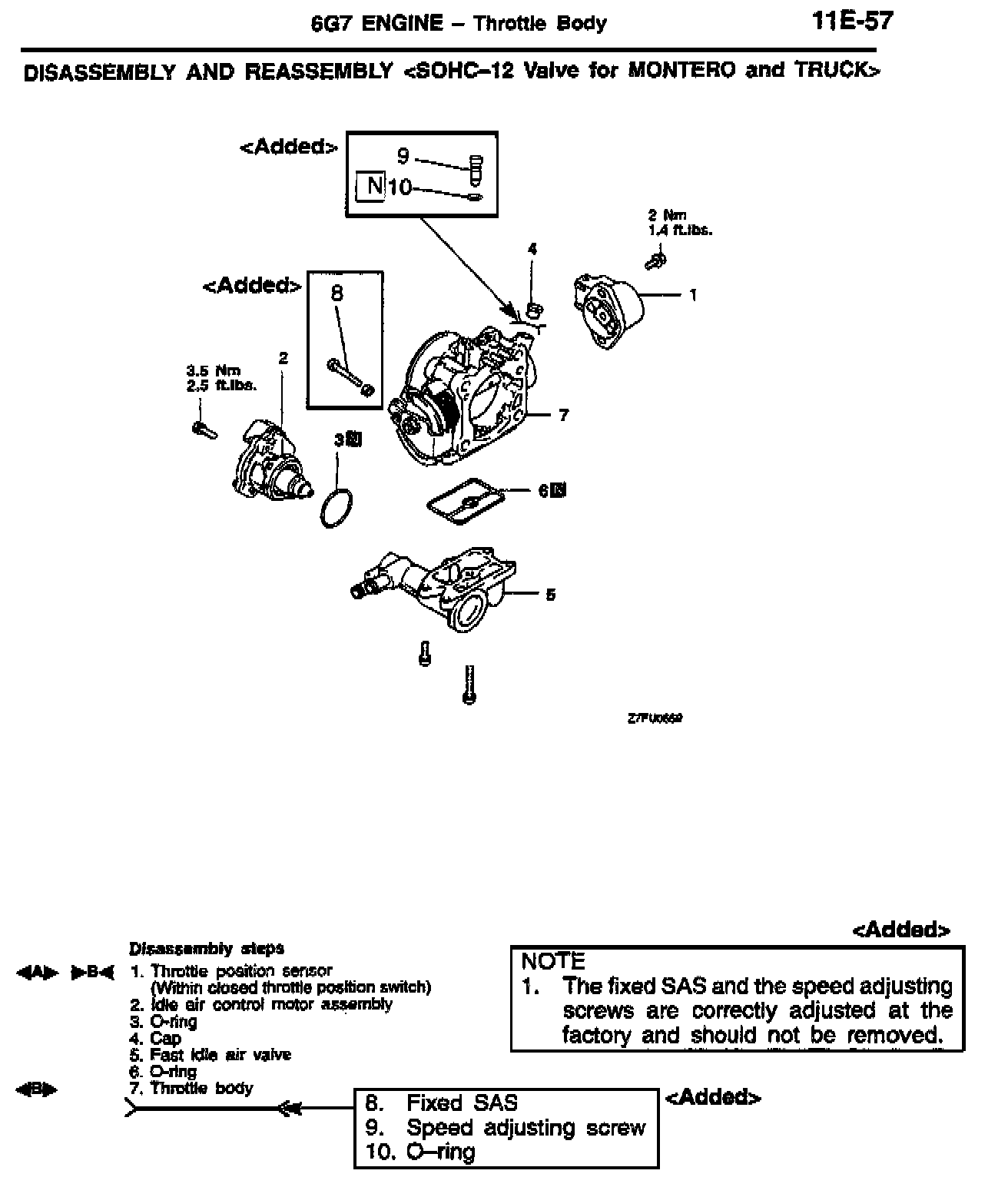

1992-96 Engine Overhaul Manual, page 11E-57

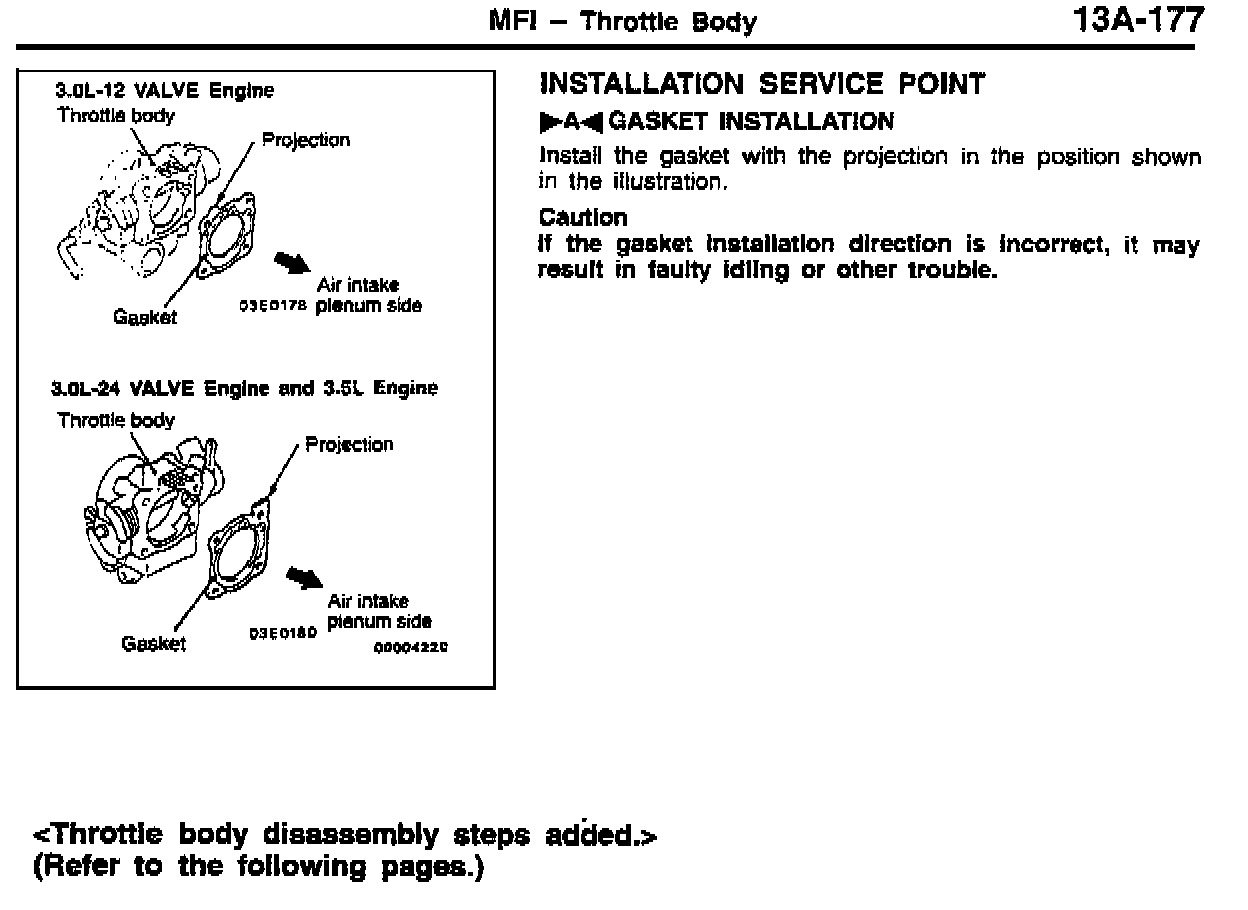

1996 Montero, Volume 1, page 13A-177
1996 Montero, 3.0L 12 Valve Engine (SOHC)
1996 Montero, 3.0L 24 Valve Engine (DOHC)
1996 Montero, 3.5L Engine

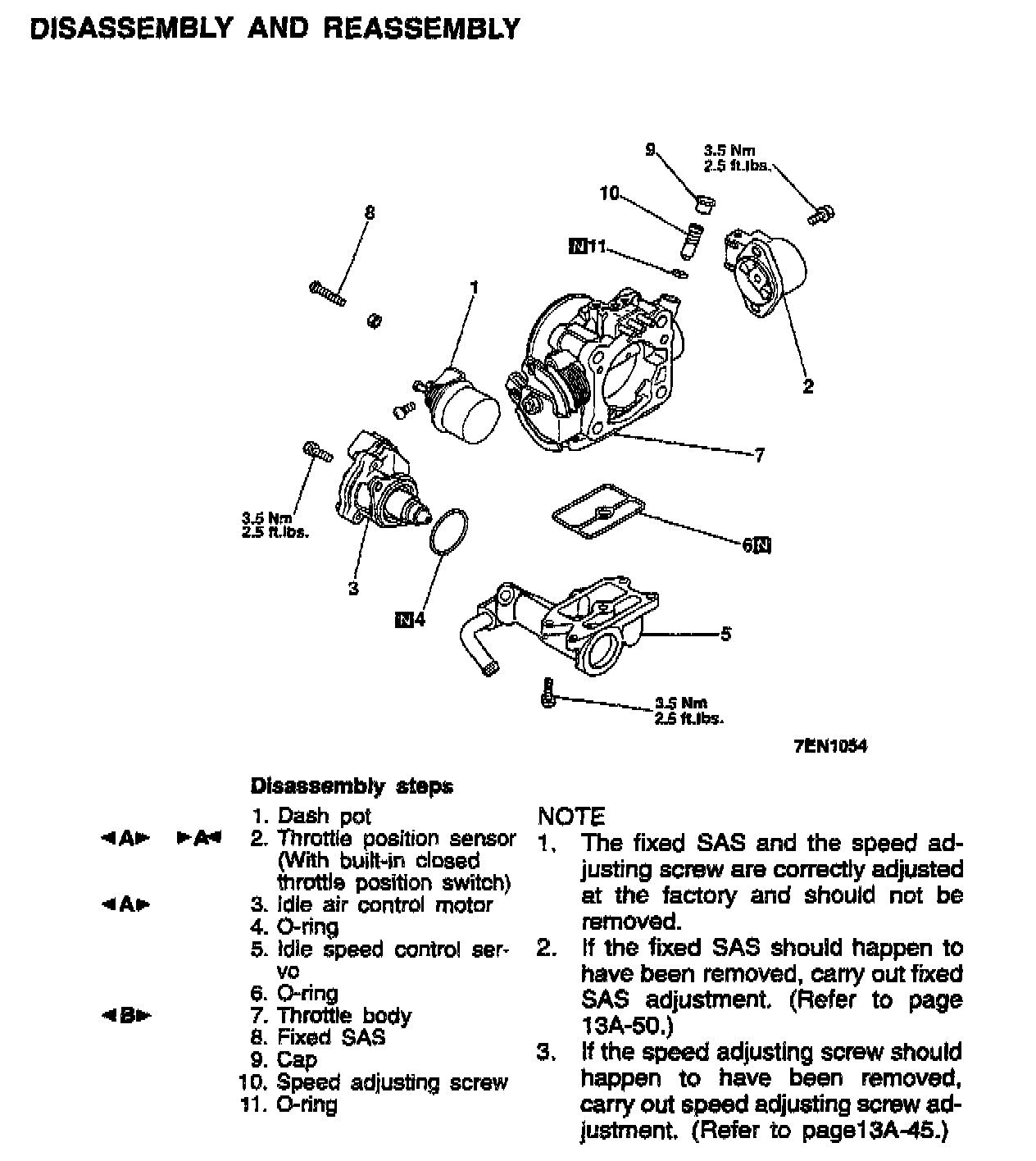

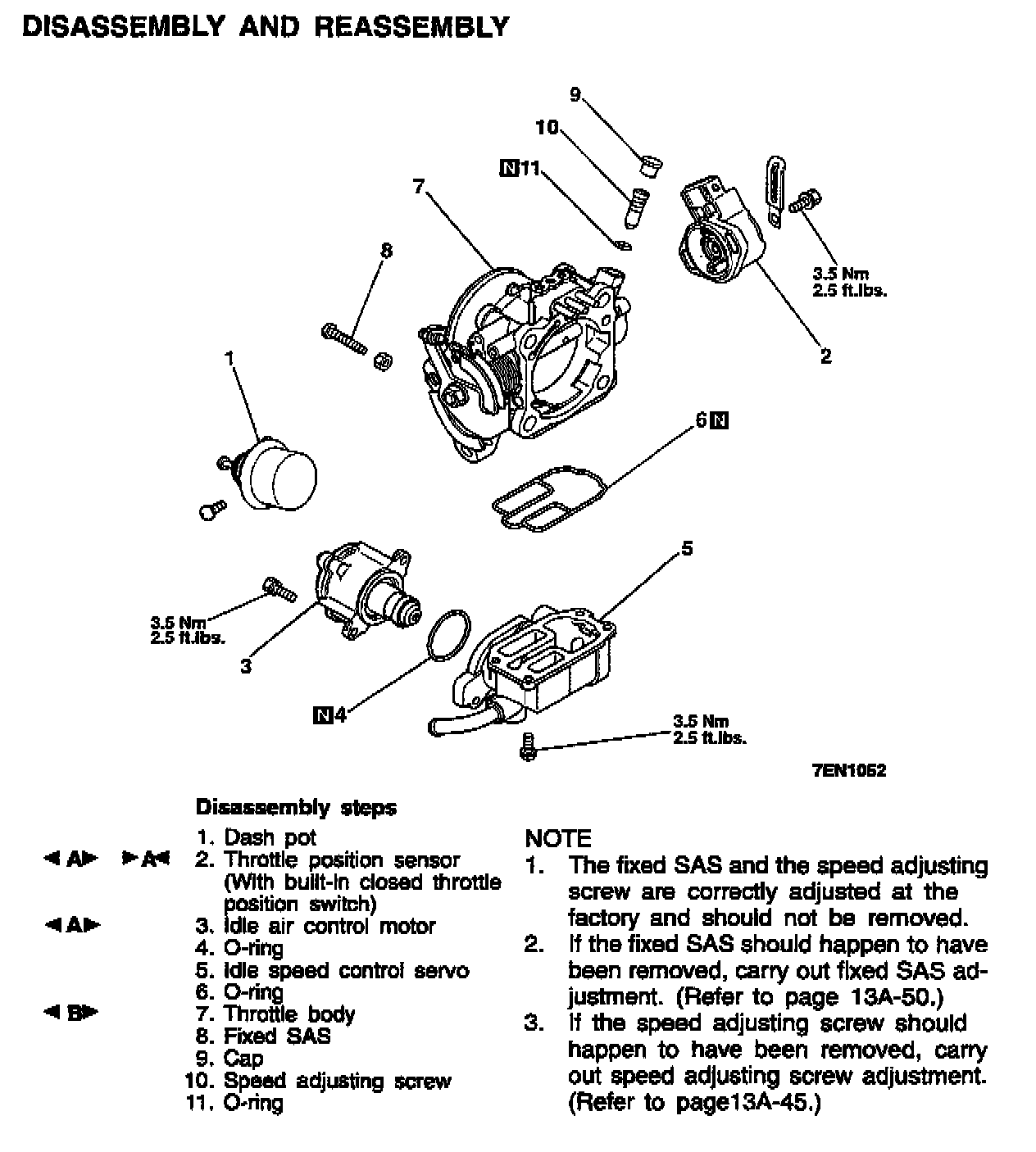

1996 Montero, Volume 1, page 13A-177. The following applies to all engines:

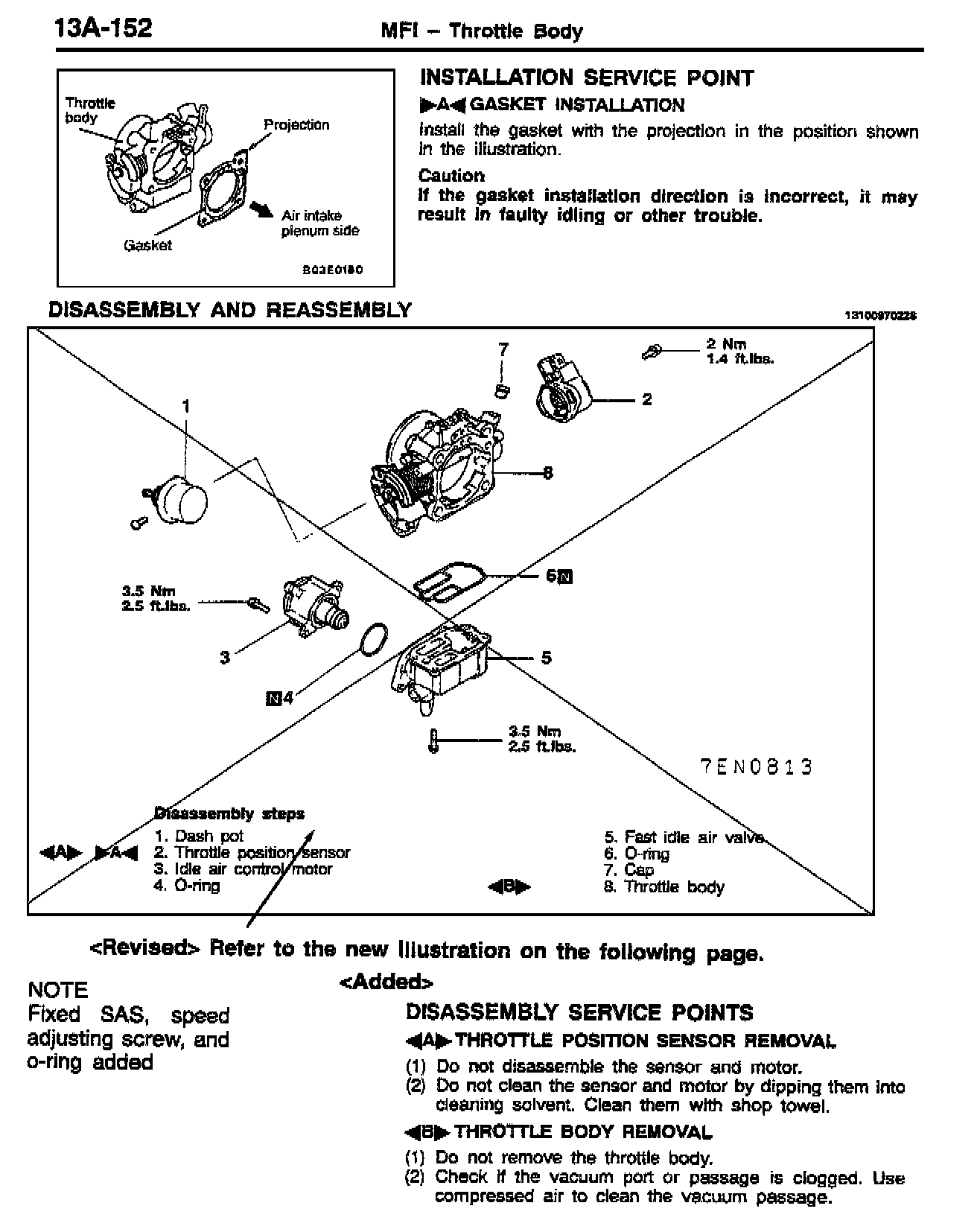

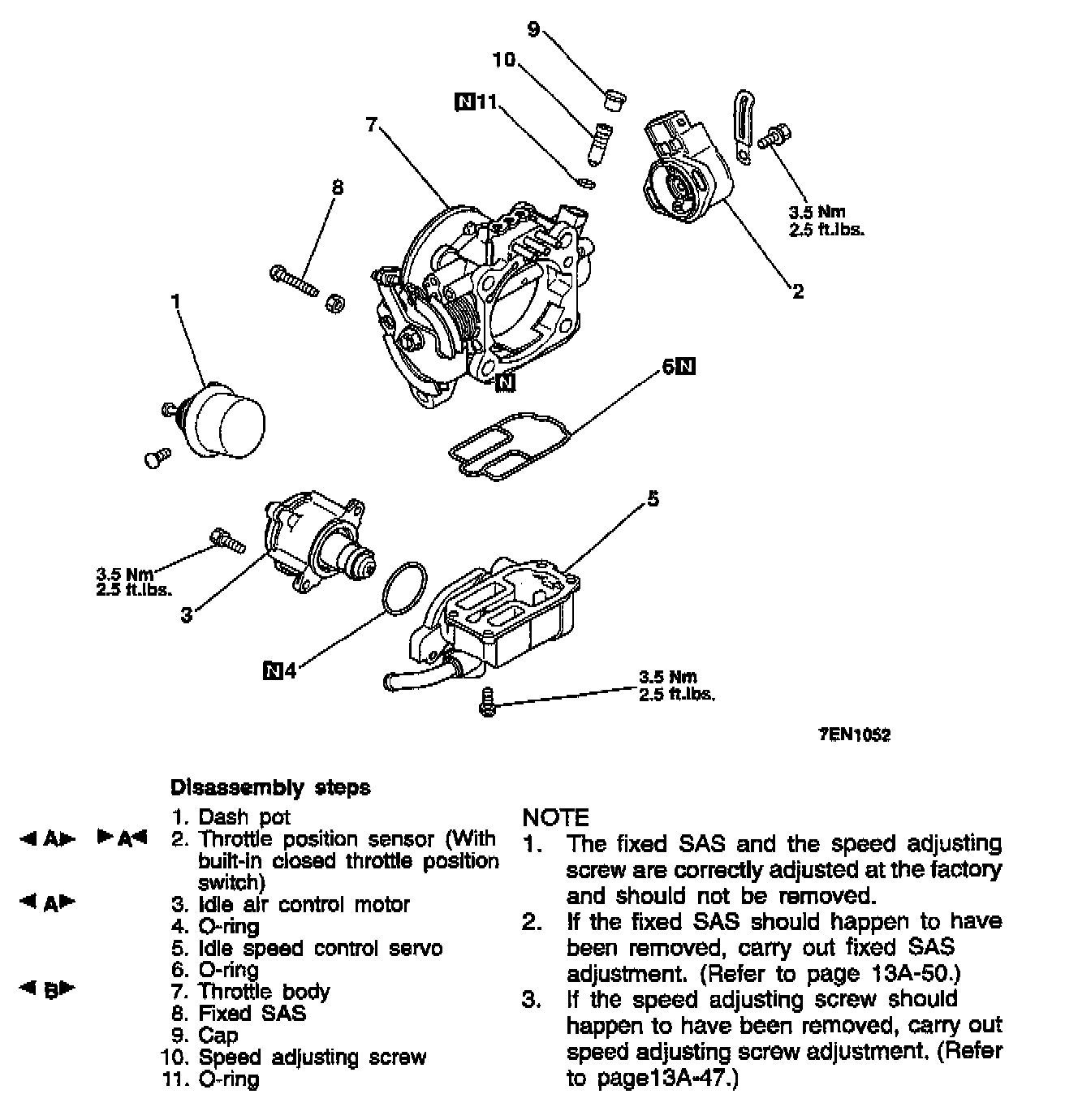

1997 Montero, Volume 1, page 13A-152

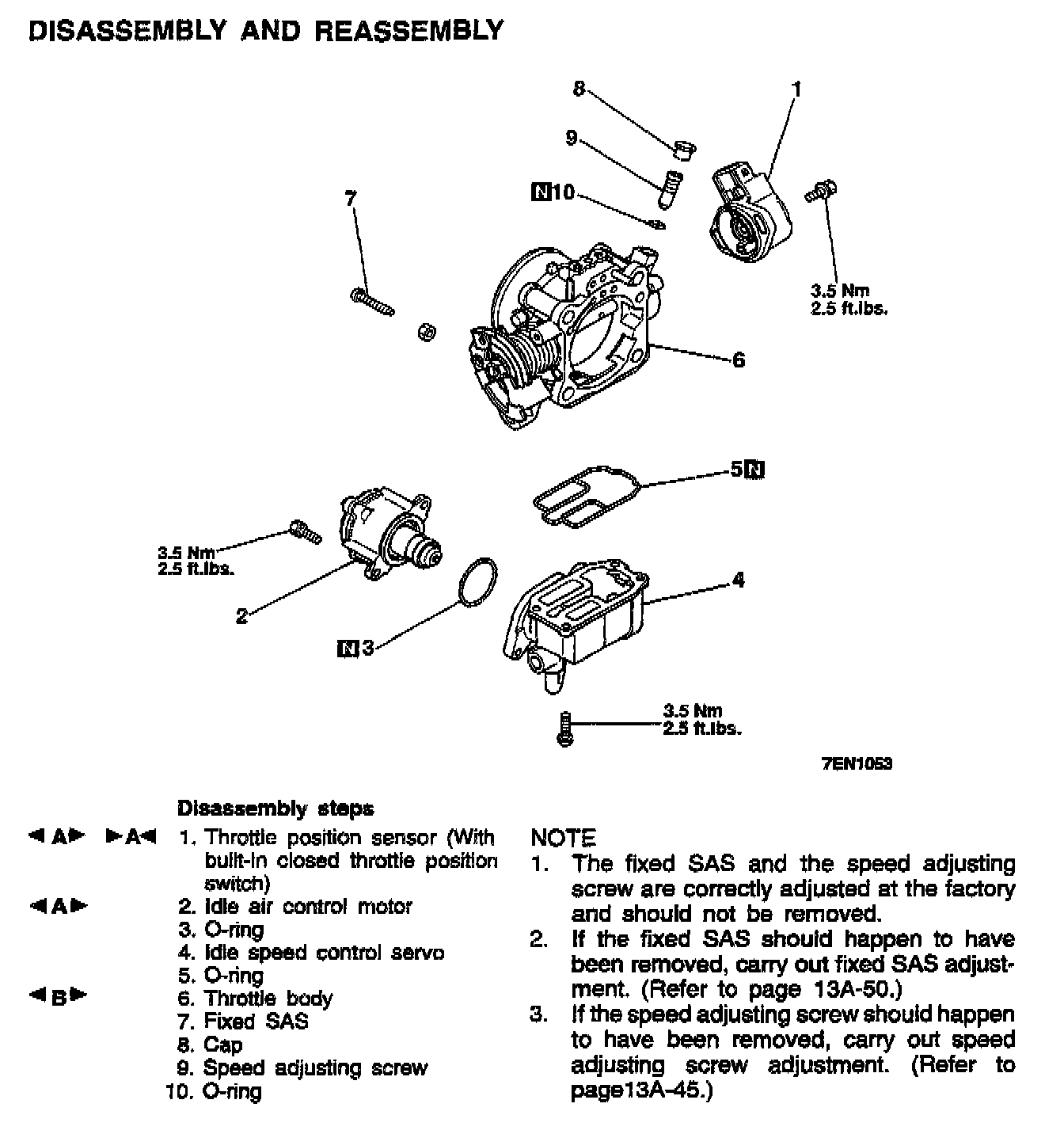

Place the information on page 13A-152 of the 1997 Montero service manual:
